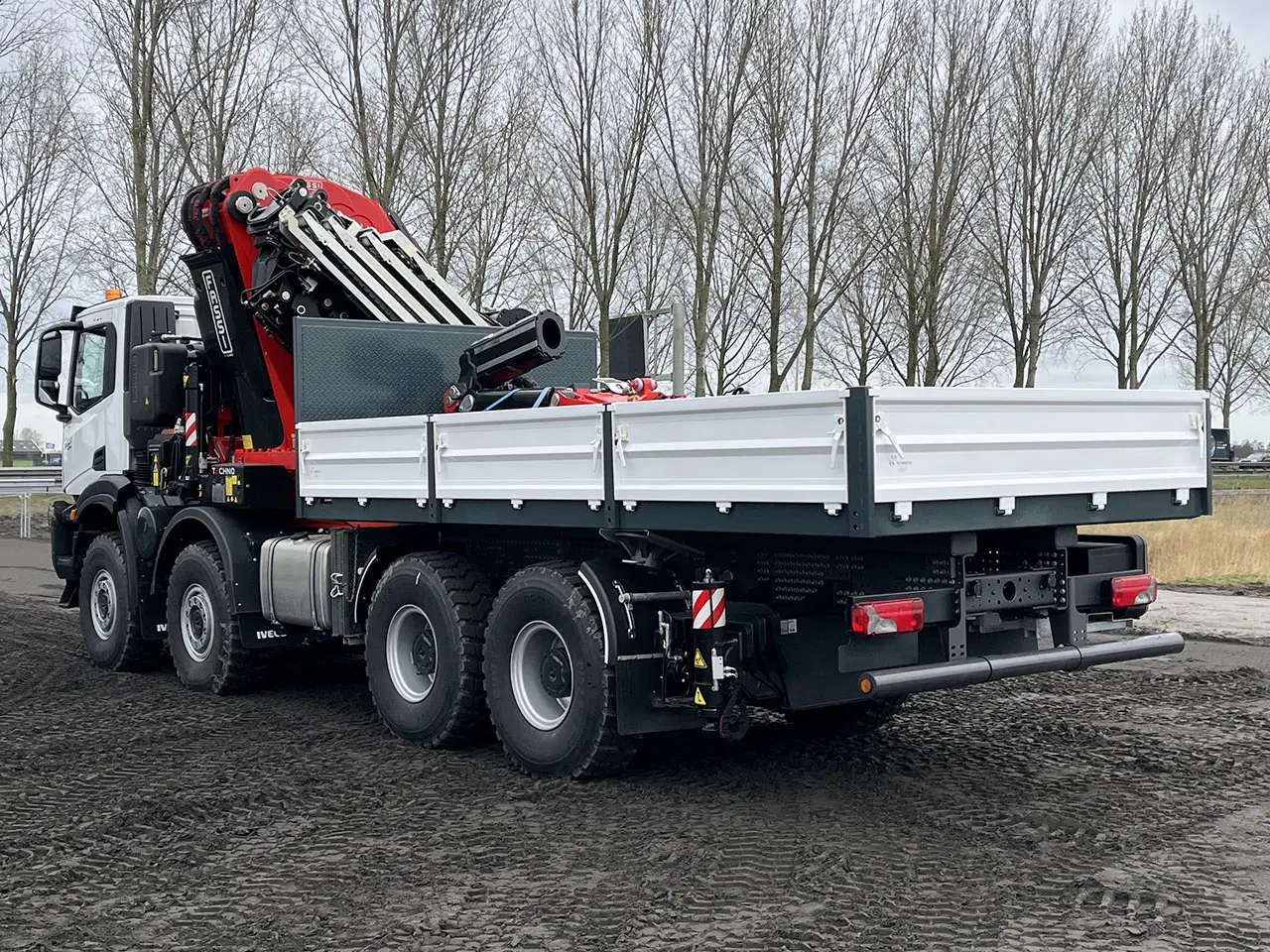

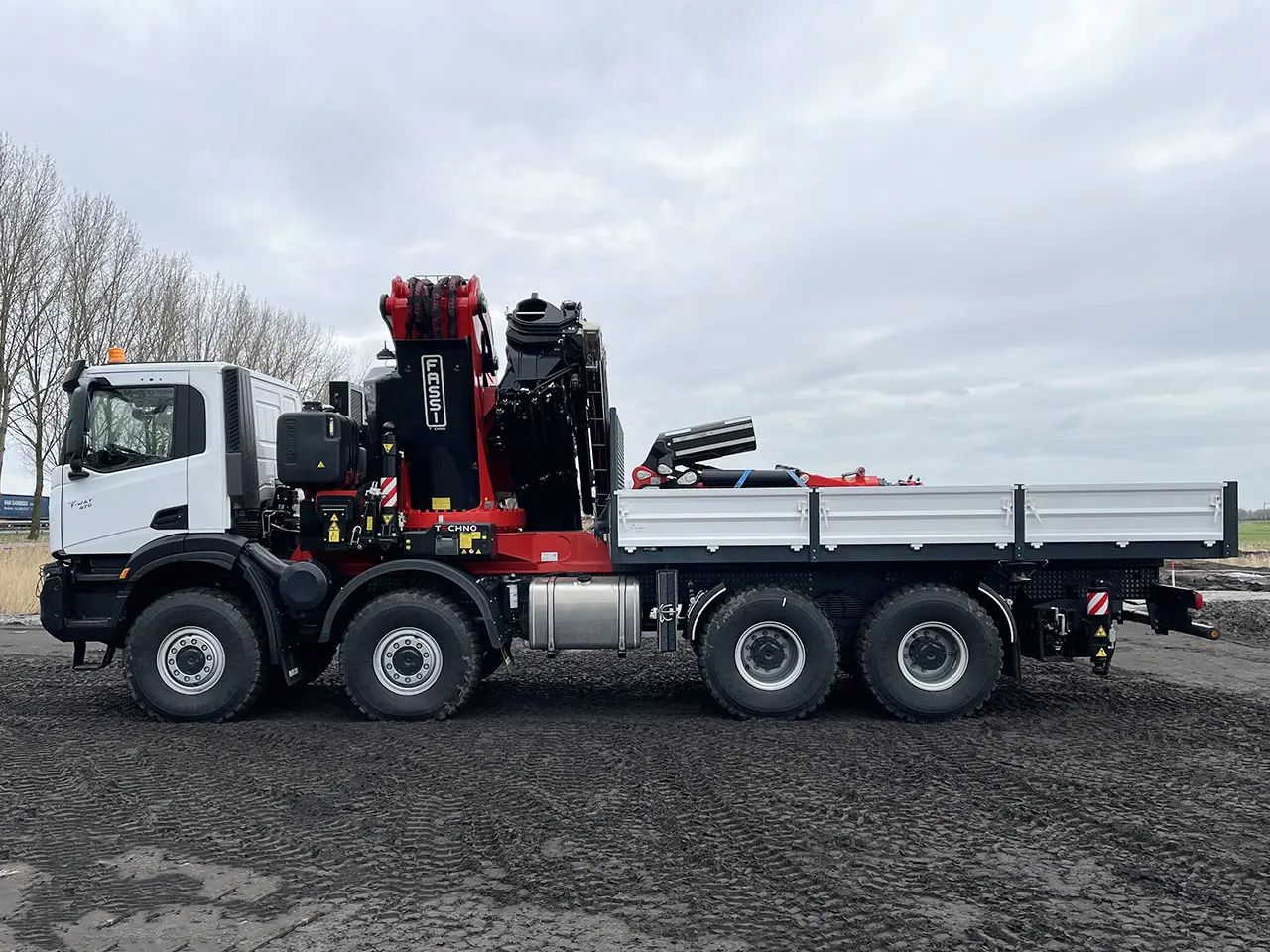

Iveco T-Way AD410T47WH AT Fassi F1750R.2.8 with JIB 8x8 Camion grue
Général
- ID
- IV4895
- Marque
- Iveco
- Construction
- Camion grue
- Marque de construction
- Fassi
- Carburant
- Gasoil
Châssis
- Empattement
- 5.020 mm
- Configuration des essieux
- 8x8
- Suspension
- Suspension à lames
Moteur
- Type de moteur
- F3HGE611
- Puissance moteur
- 475hp/349kW
Cabine
- Cabine
- Cabine courte
- Conduite
- Volant à gauche
Boîte de vitesse
- Transmission
- Automatique
- Boîte de vitesse
- ZF16TX2240TO
Remarques (Anglais)
Fuel tank: 400 ltr.Air conditioning
Equipped with Fassi crane:
Type: F1750R.2.8 HXP-Techno L826 JDP
Hydraulic extension type L826
JDP Jib dual power device activation
Max. lifting moment 132 tm / 1295 kNm
Max. hydraulic outreach 31.80 m
Lifting capacity:
30.000 kg / 4.05 m
21.460 kg / 5.65 m
16.225 kg / 7.40 m
12.720 kg / 9.25 m
10.285 kg / 11.25 m
8.550 kg / 13.25 m
7.080 kg / 15.35 m
6.100 kg / 17.35 m
5.380 kg / 19.35 m
Lifting capacity including Jib:
4.415 kg / 18.35 m
4.040 kg / 19.65 m
3.710 kg / 21.05 m
3.200 kg / 22.45 m
2.535 kg / 24.00 m
2.085 kg / 25.60 m
1.760 kg / 27.30 m
Electronic/Hydraulic Equipment:
IMC integral machine control
FX990 control unit
D900 digital distributor bank
V7S 8 functions radio remote control
ADC automatic dynamic control
FX991 - Touch screen display
Electronic flow sharing
Double linkage
Prolink system
Continuous rotation on a slew ring
Foldable pulley L91
Hydraulic winch V30
Flat-bed lashing rings
Flat-bed dimensions 530 x 250 x 0.50 cm
Complete specification in PDF.
