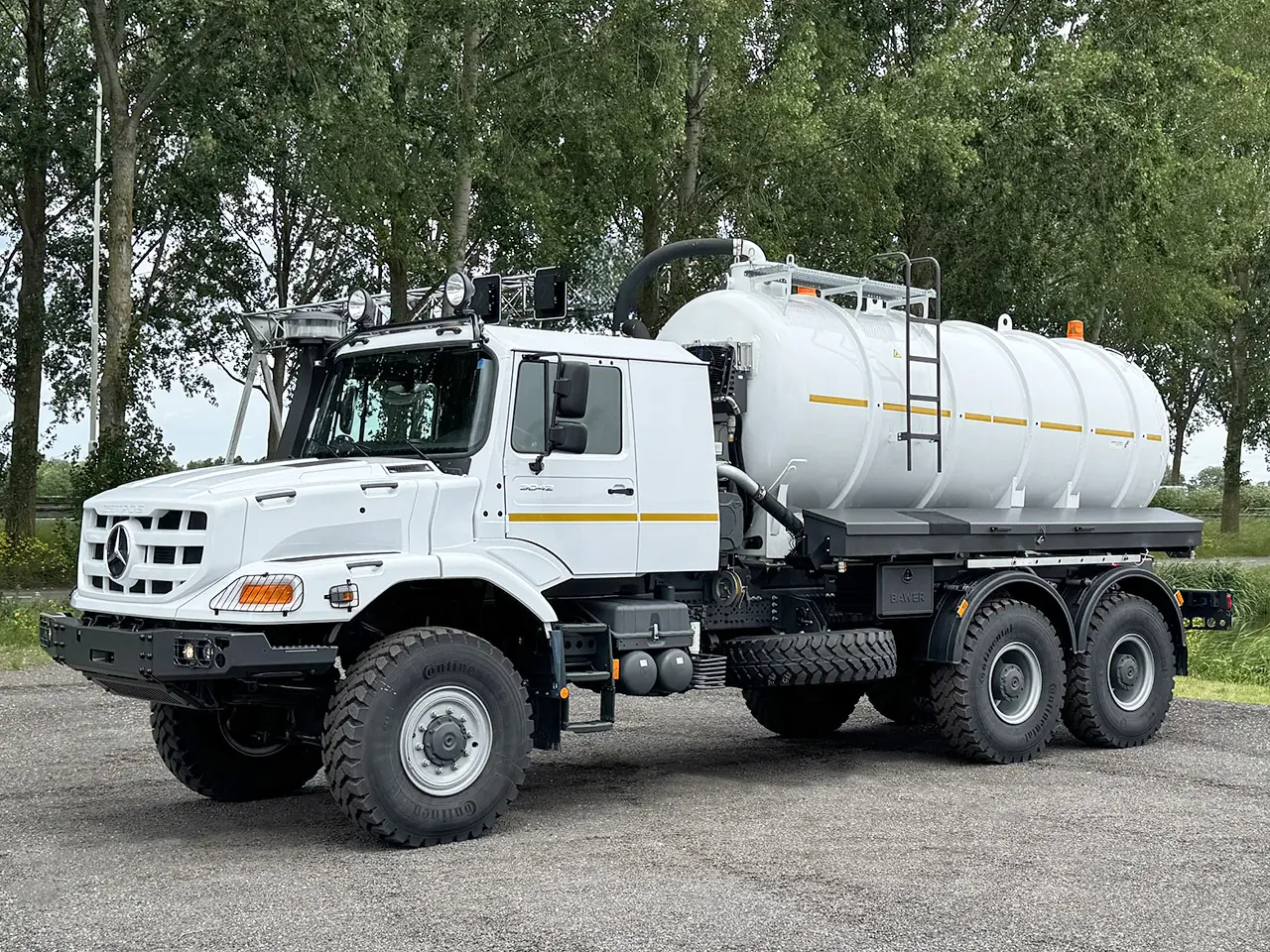

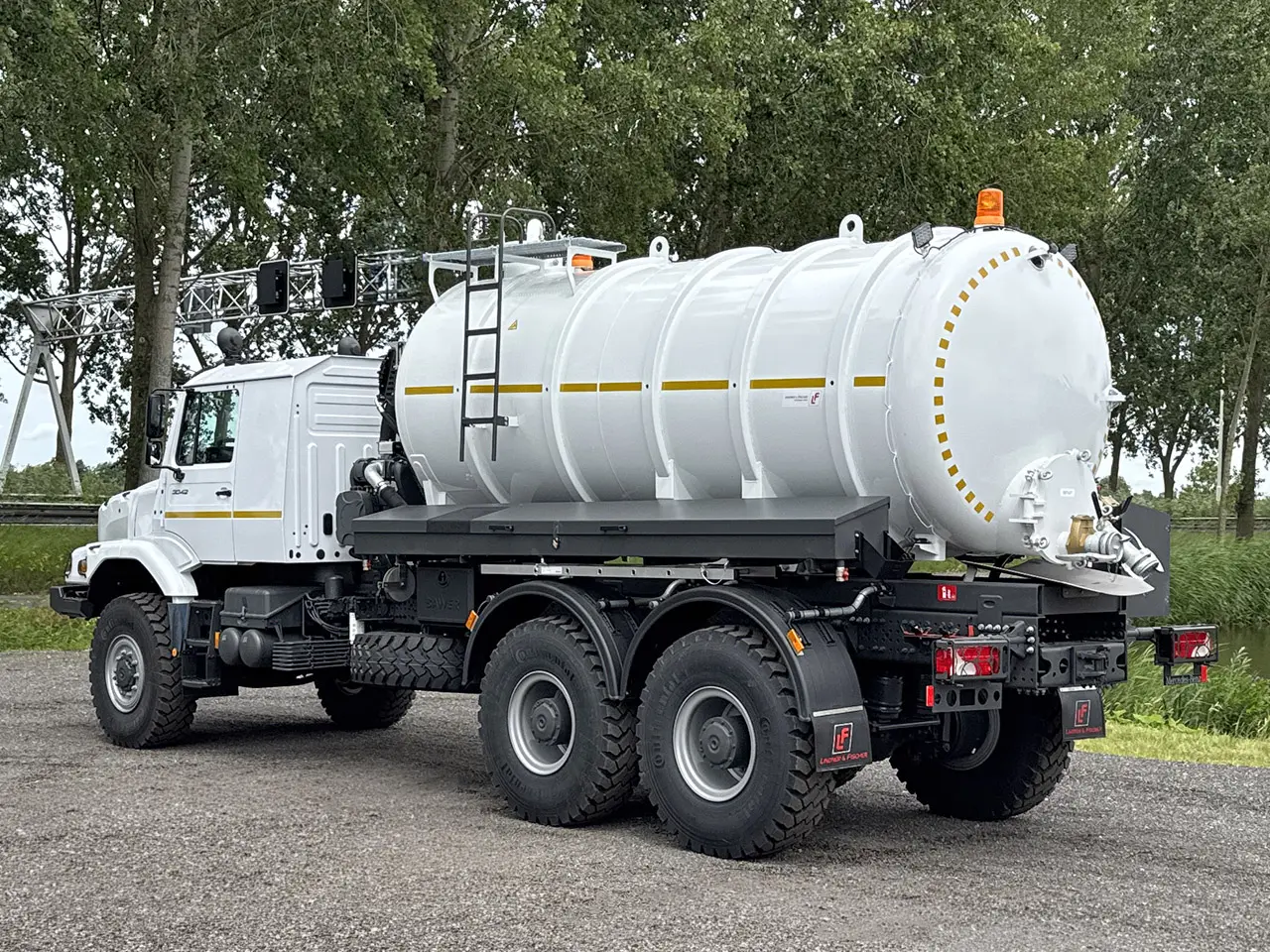

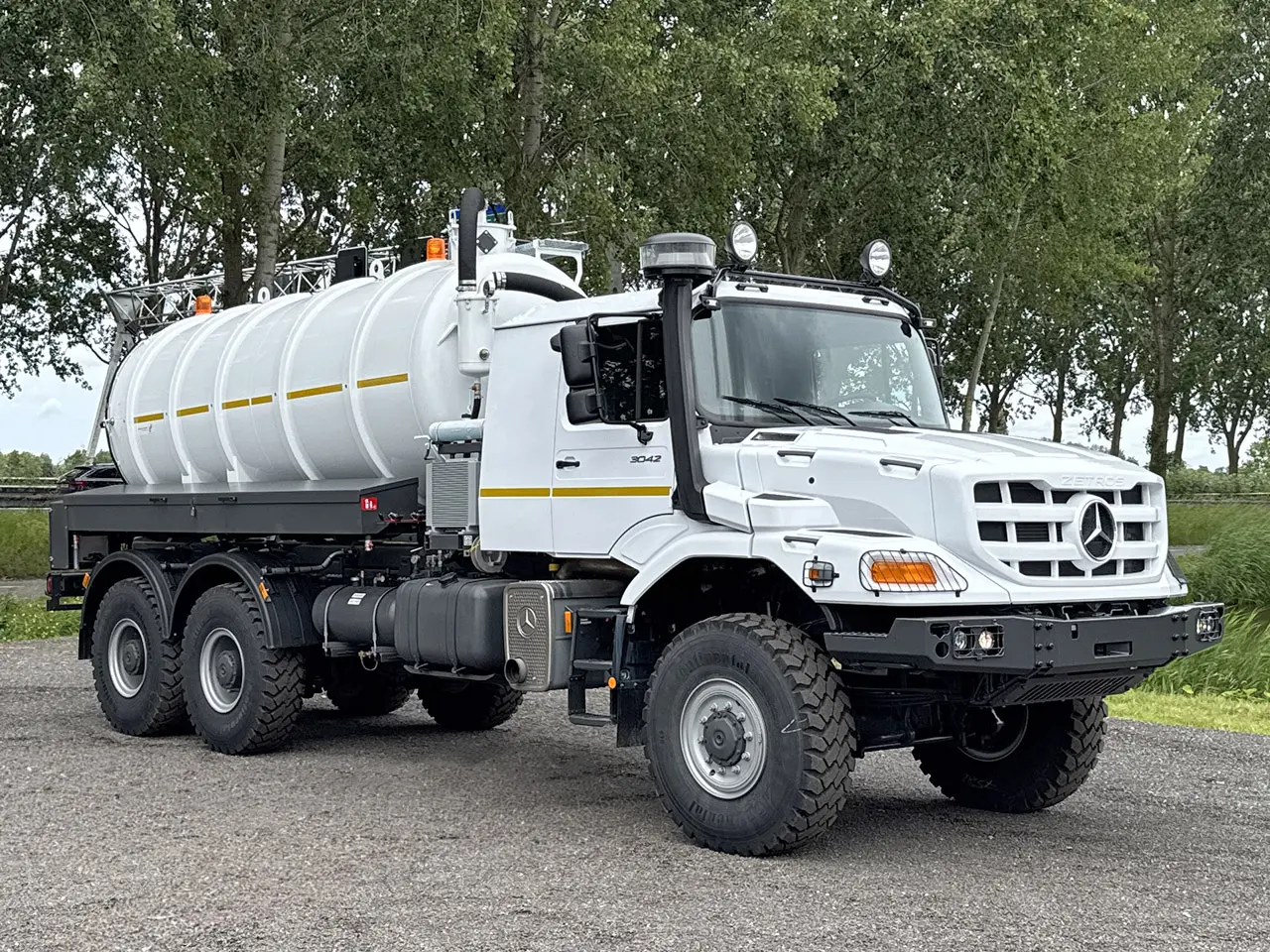

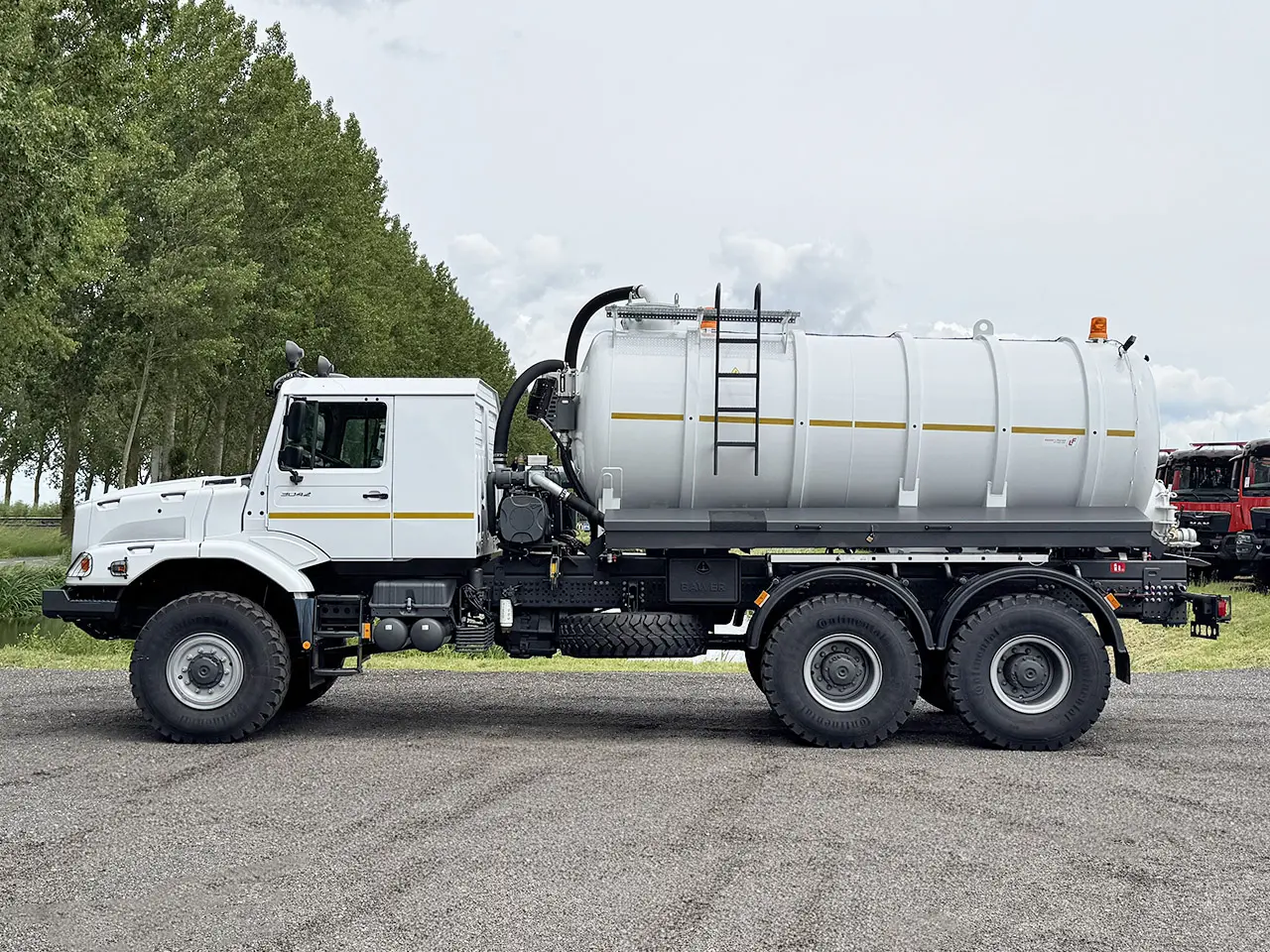

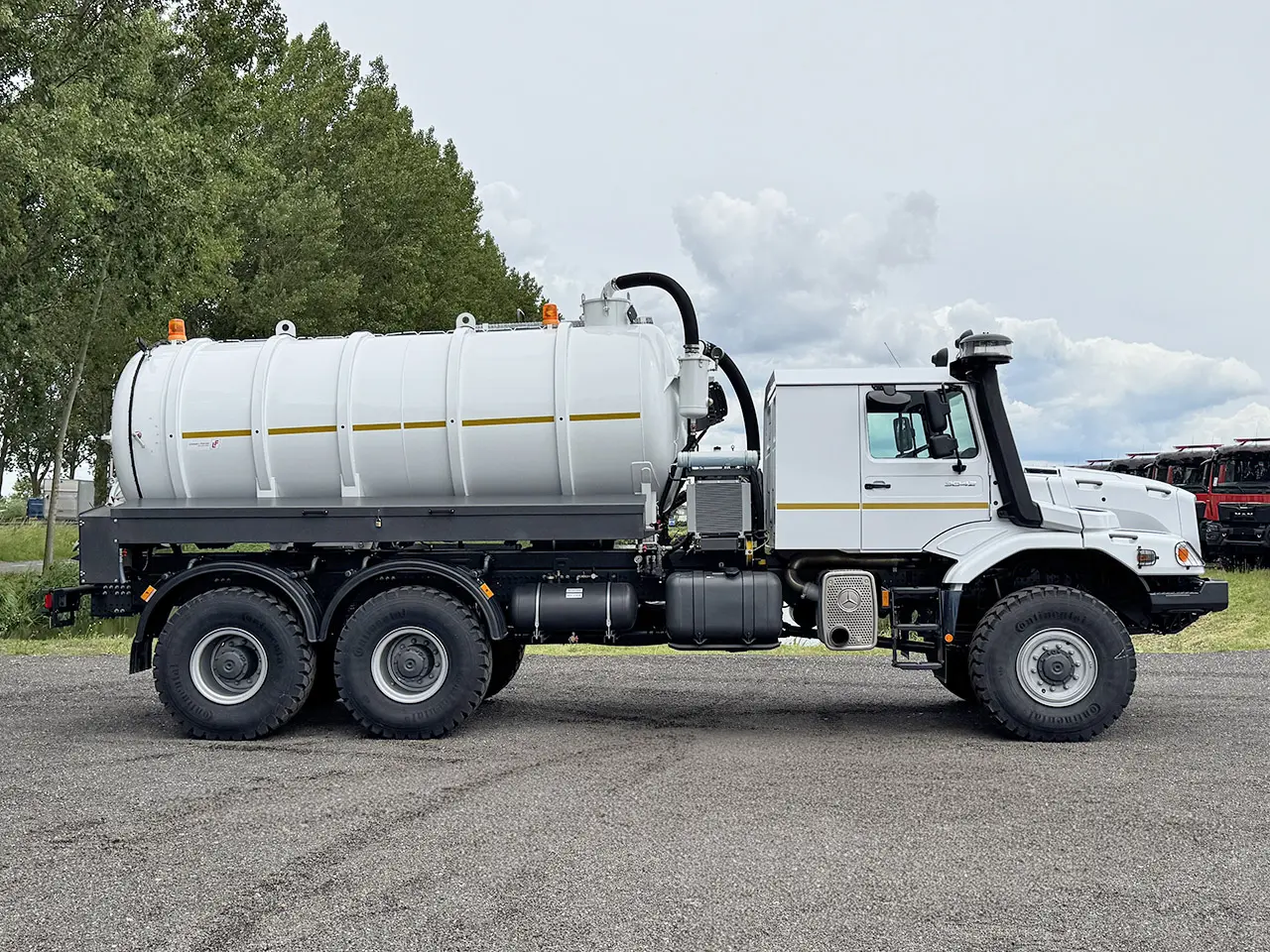

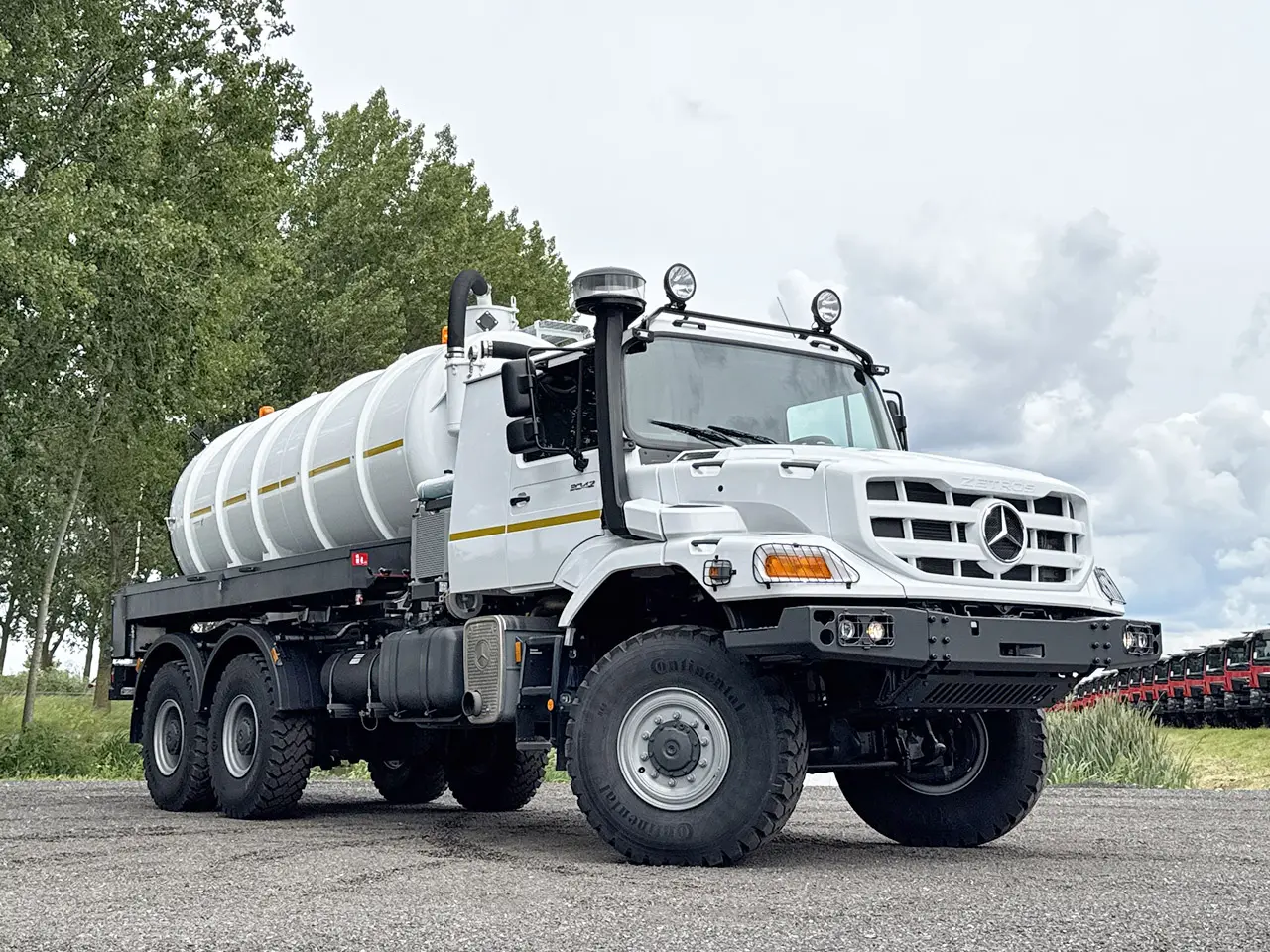

Mercedes-Benz Zetros 3342 A Sewage Tank Truck 6x6
6x6
421hp/310kW
EURO-3
Left hand drive
Price on request
Specifications
General
- ID
- ME5381
- Brand
- Mercedes-Benz
- Construction
- Sewage Tank Truck
- Construction brand
- Lindner-Fischer
- Construction volume
- 10.000 Ltr.
- Fuel
- Diesel
- Production year
- 2025
- Model year
- 2025
- Vehicle status
- New / Unused
Engine
- Engine type
- OM460
- Emission code
- EURO-3
- Engine power
- 421hp/310kW

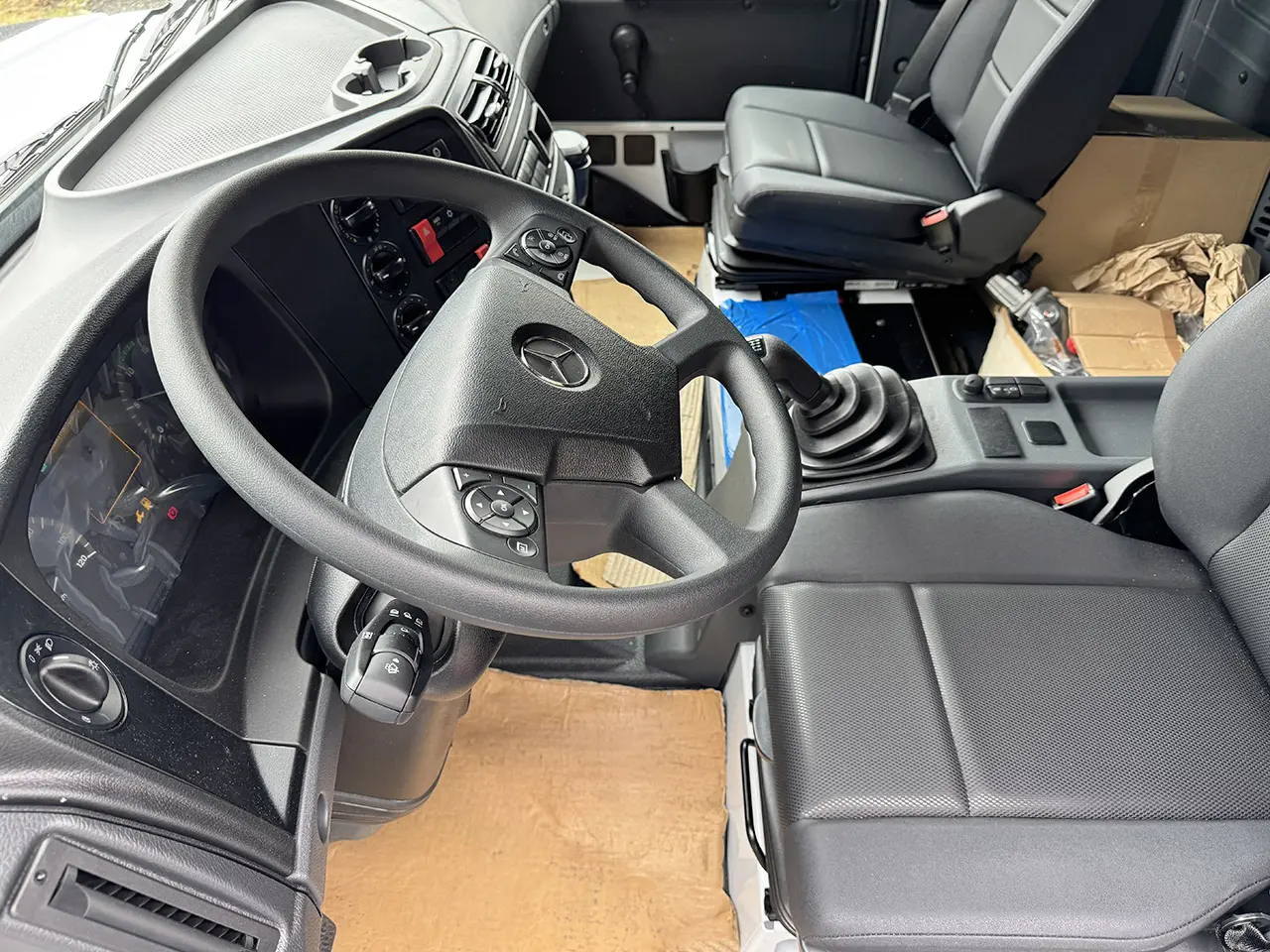

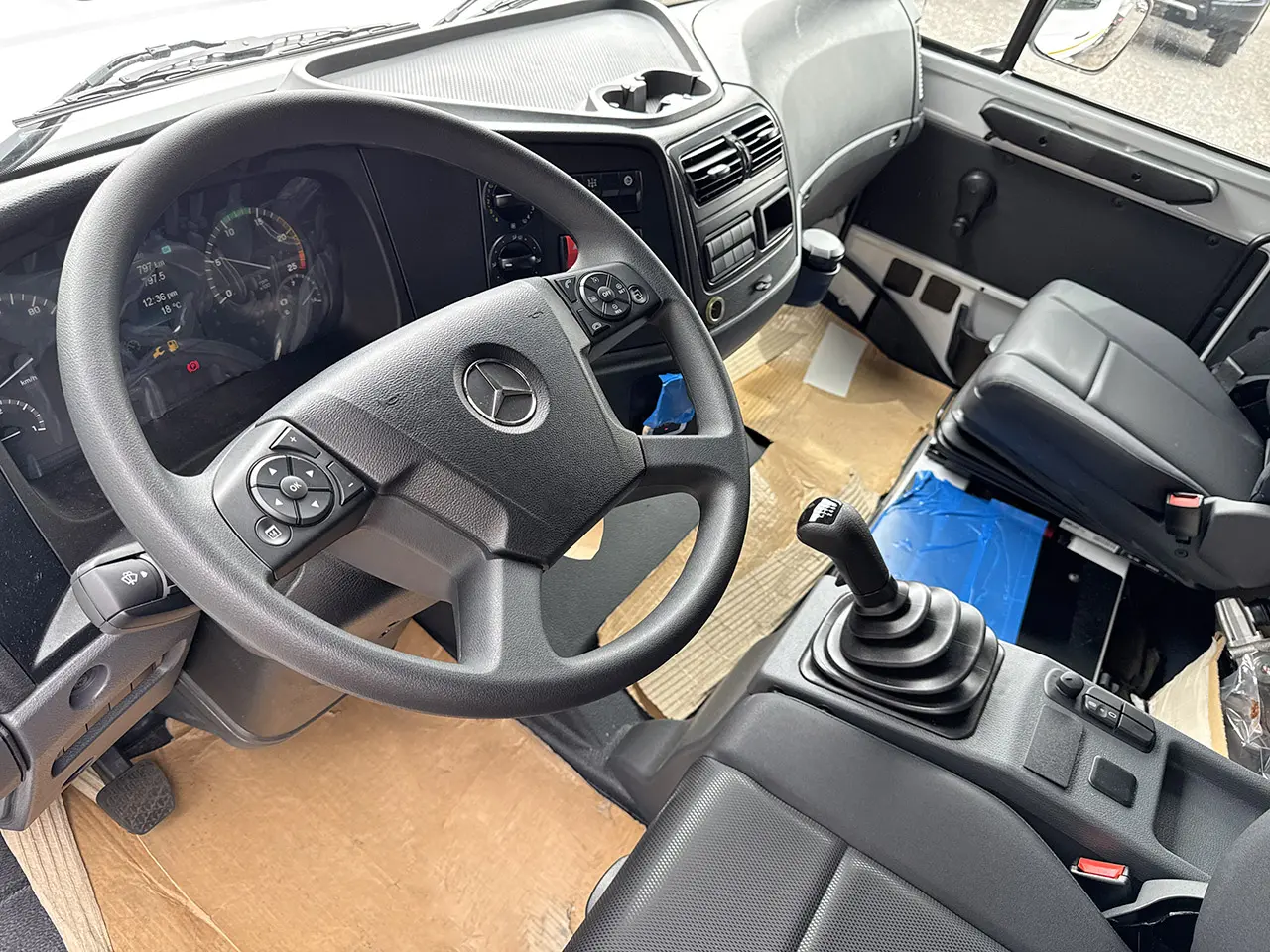

Cabin

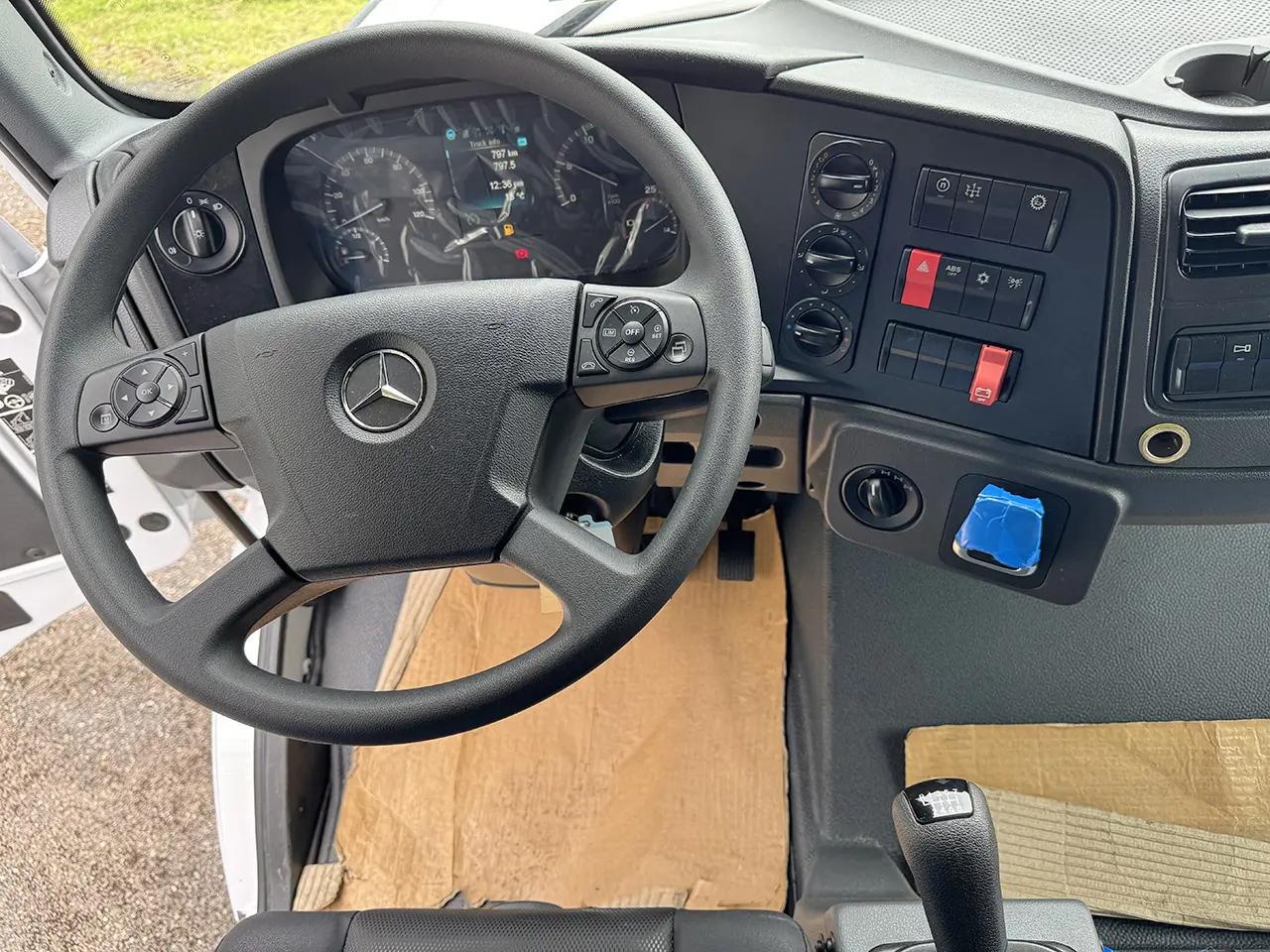

- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Manual
- Gearbox
- G 260-16/11.7-0.69
- PTO
- MB 131-2C
Chassis
- Wheel base
- 5.100 mm
- Axle configuration
- 6x6
- Suspension
- Spring
Dimensions
- External dimension
- 9.800 x 2.550 x 4.000 mm
- Empty weight
- 15.000 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes

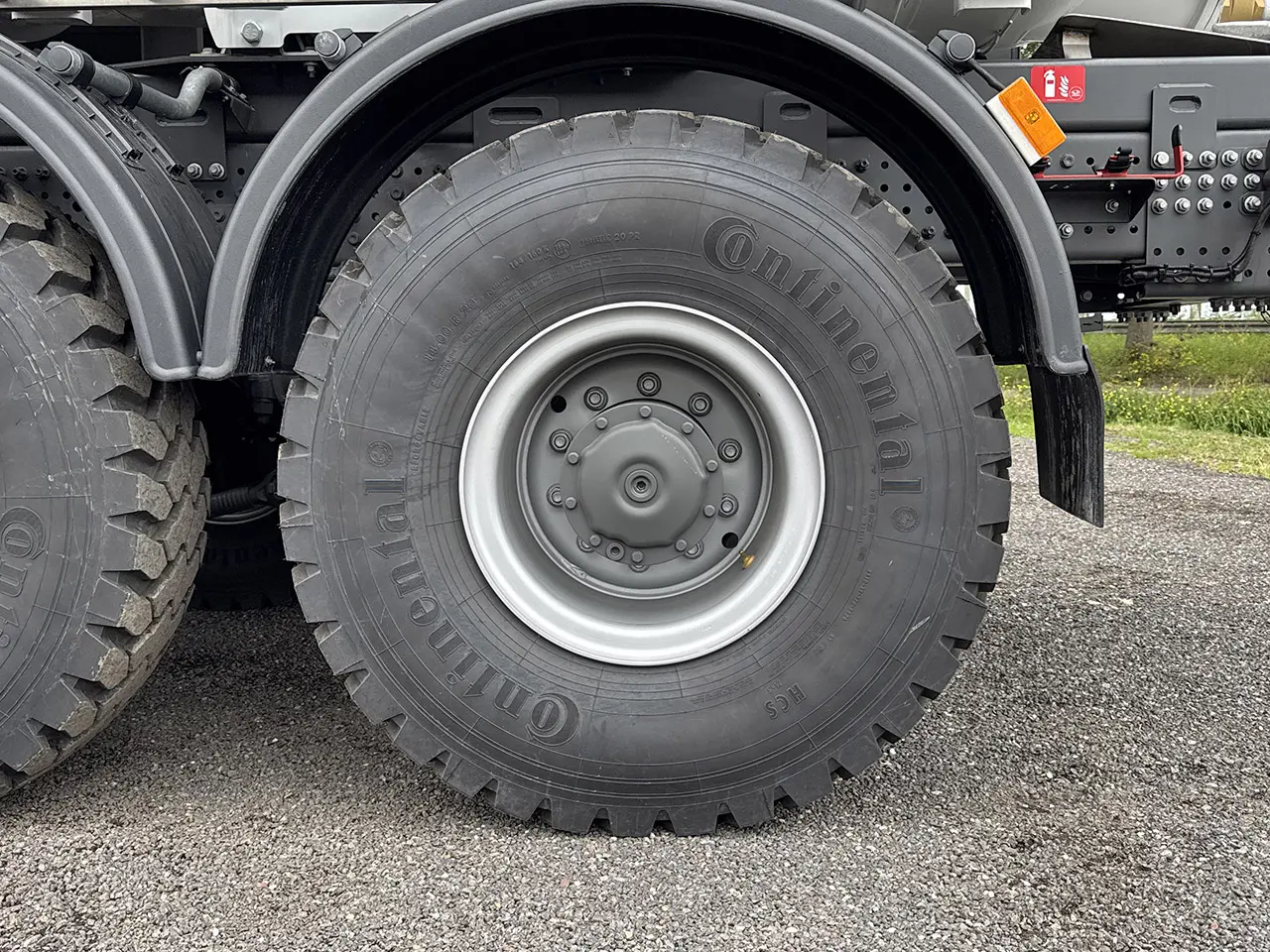

- Tire size
- 14.00R20
Axle 2
- Steering
- No
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 14.00R20

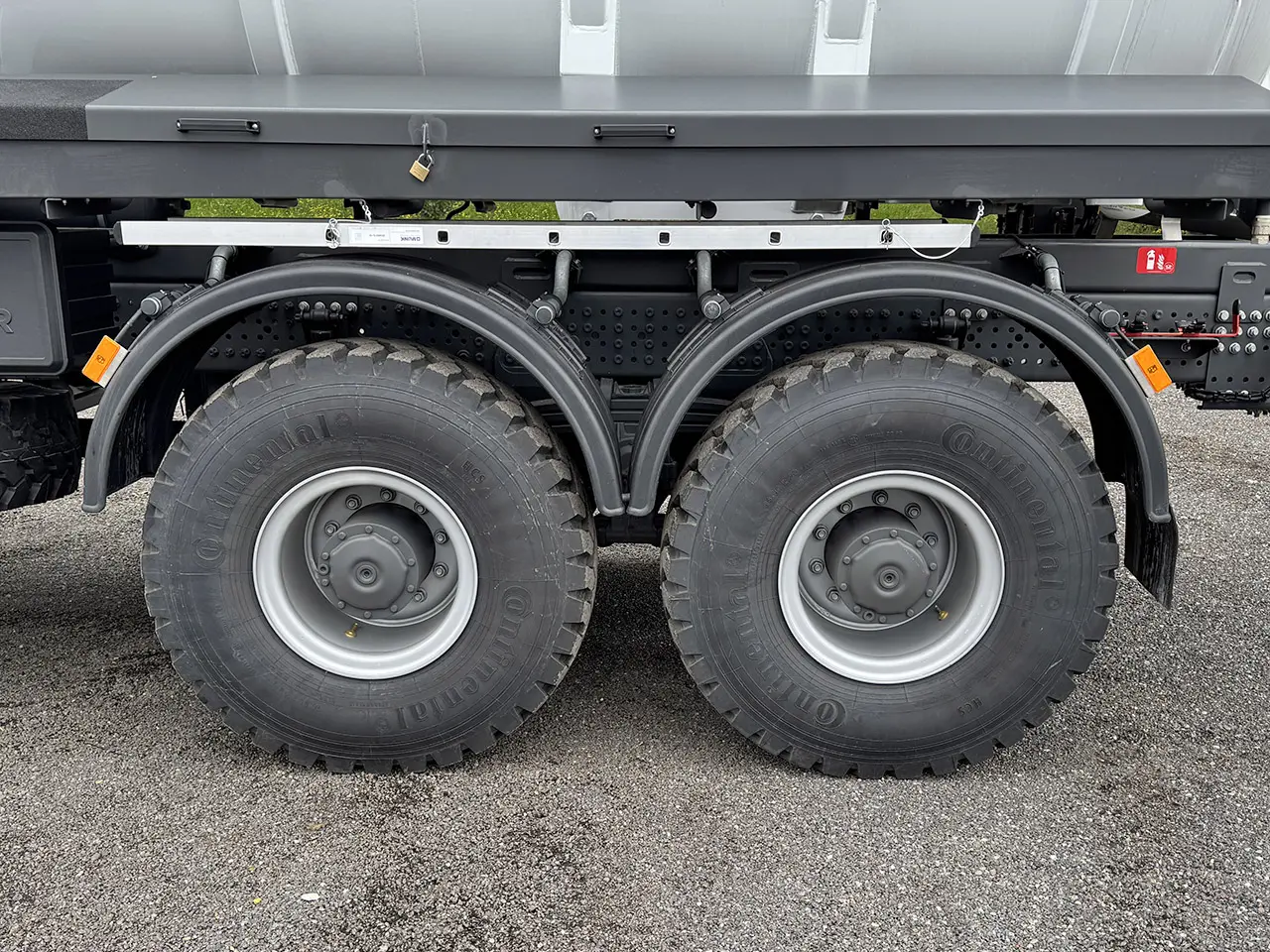

Axle 3
- Steering
- No
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 14.00R20
Remarks
Engine: Inline 6 12.8 l, 3100kW (421hp) 2100 NmFuel tank: 290 ltr.
Air conditioning
Spare-parts kit included

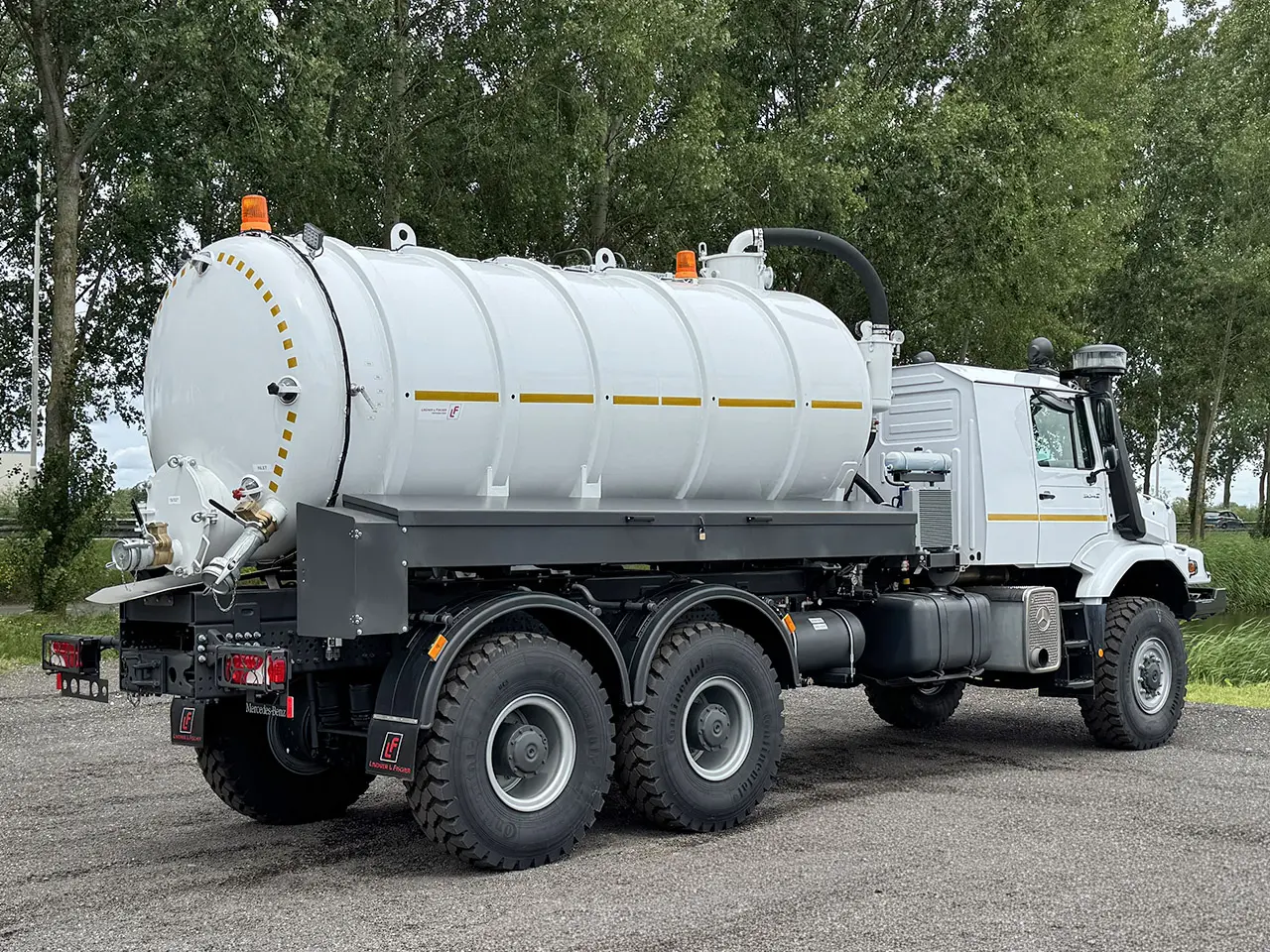

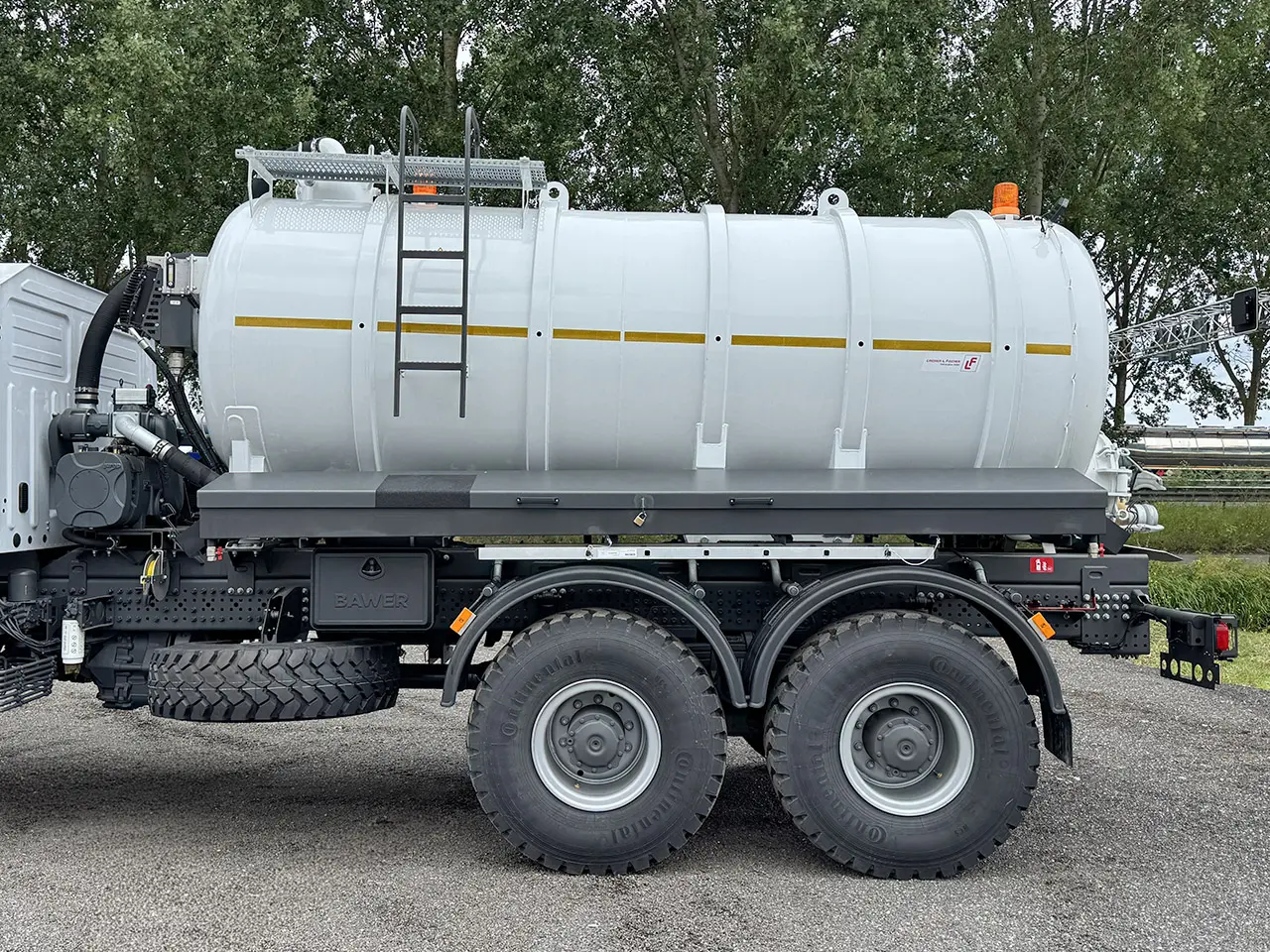

Equipped with lindner & Fischer sewage/vacuum tank:
Type: TA 100 DS
Capacity: 10.000 ltr. Incl. 3% expansion
The tank itself is supported in tank saddles which are bolted on the reinforced longitudinal frame members with heavy duty rubber mountings in front.
Dished bulkheads on both sides with 6 mm. thickness and appropriate nos. of baffles, 5 mm. thick.

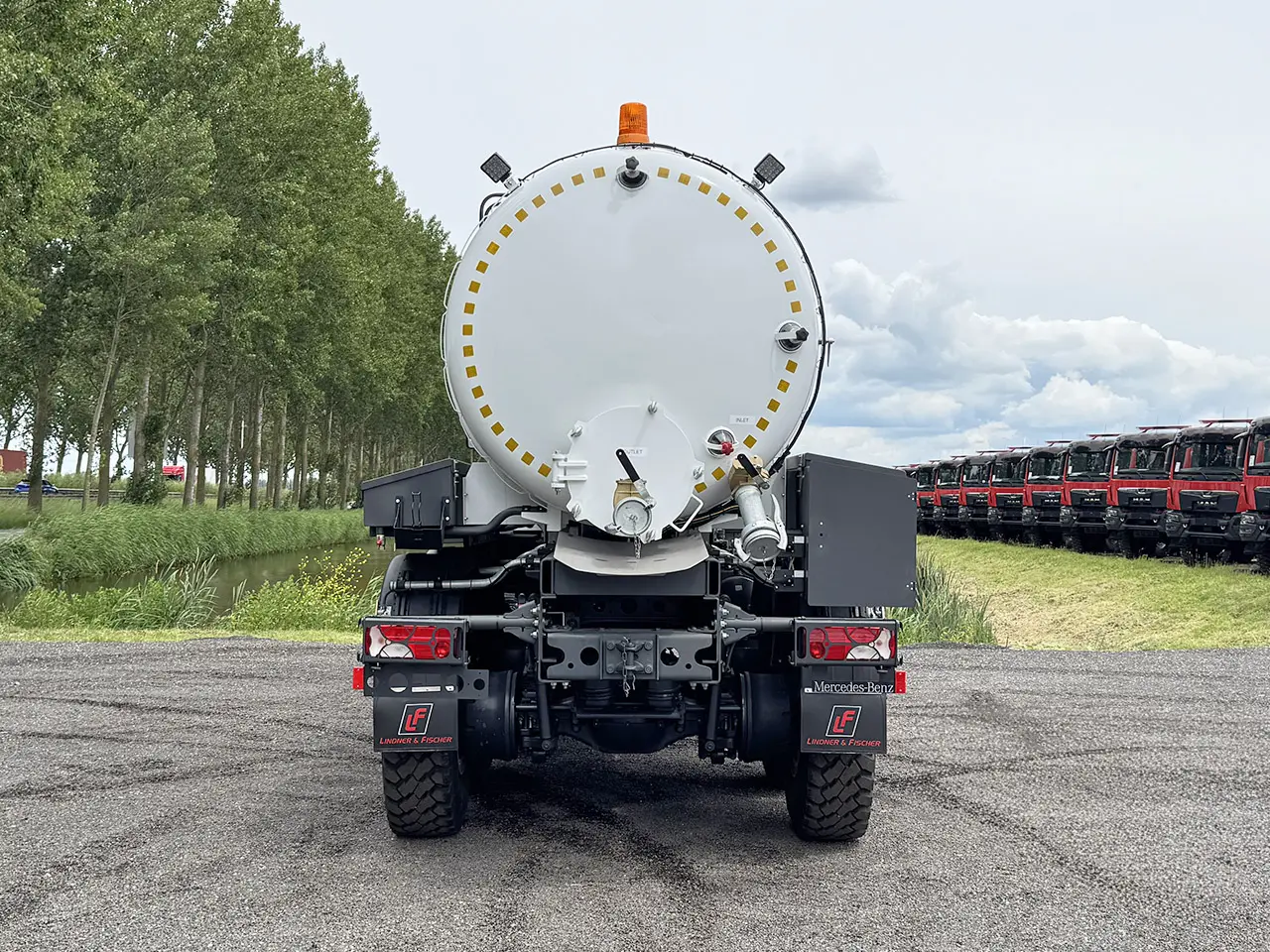

Manual rear opening for cleaning purpose, dia approx. 600 mm.
Top fitting one (1) 380 mm. diameter opening with vacuum valve, secured by bolts.
At the rear of the tank, there are two (2) out-let valves, with manual operated ball valves mounted.

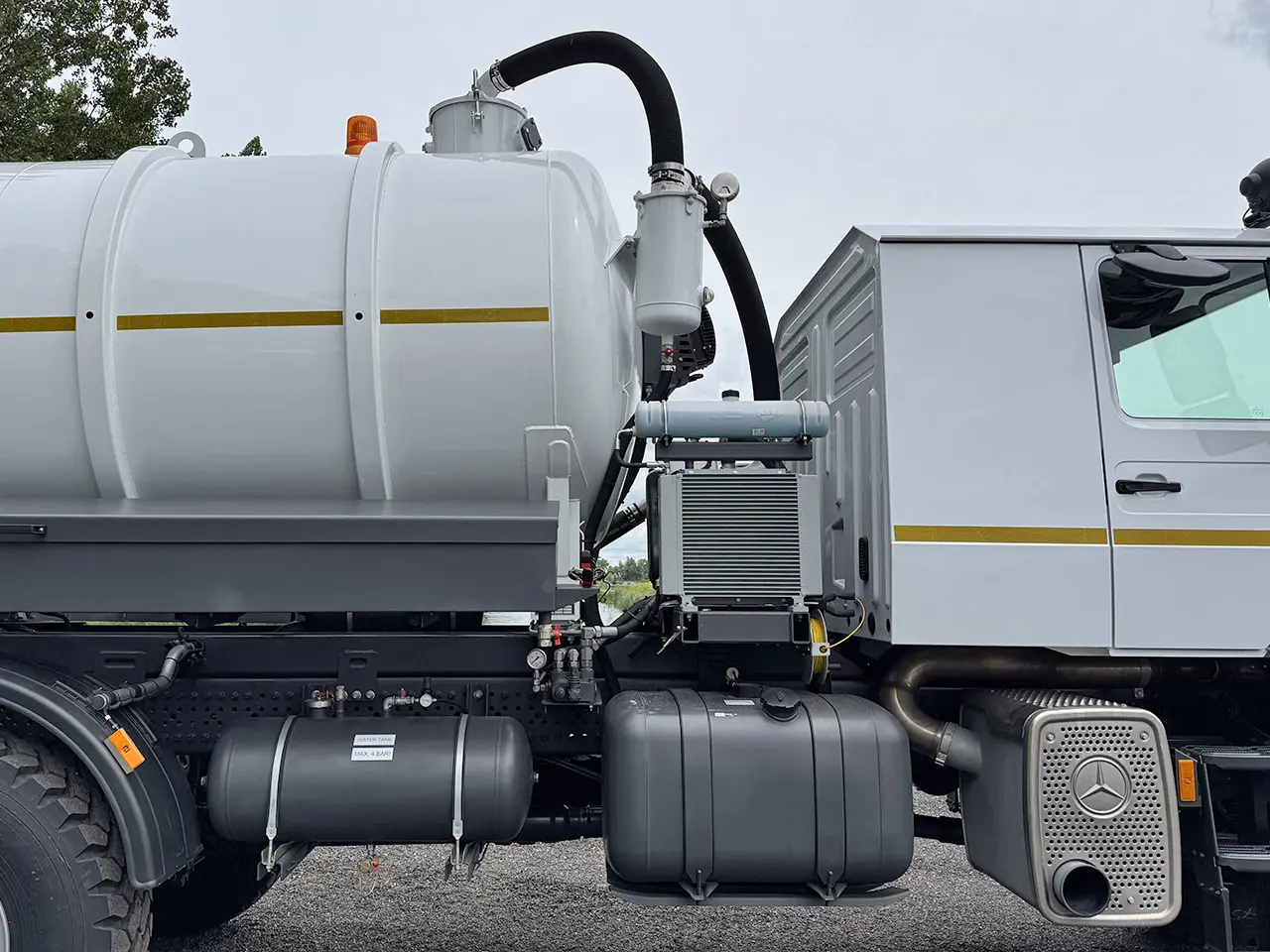

One (1) ex protected water cooled vacuum pump, type Jurop installed at the vehicle's chassis, hydraulically driven by PTO of truck engine and can be operated pneumatically from the driver’s cabin.
Level indicator at rear of tank

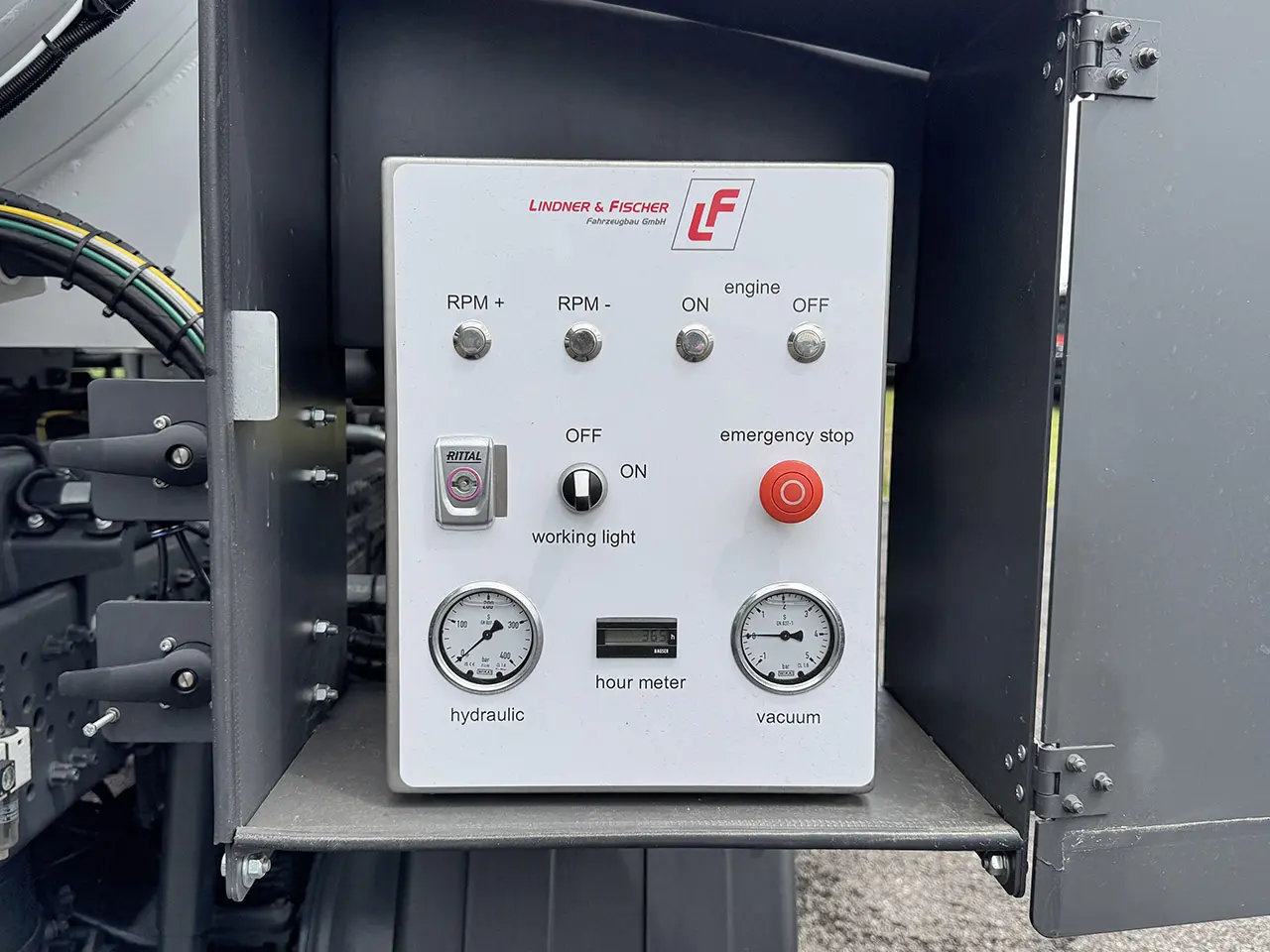

An operation panel mounted on right-hand side at rear part of tank
Four (4) rubber suction and pressure hoses NW 80,
Water cleaning system for cleaning the equipment 120 ltr. water-tank mounted on chassis.
Complete specification in PDF.
