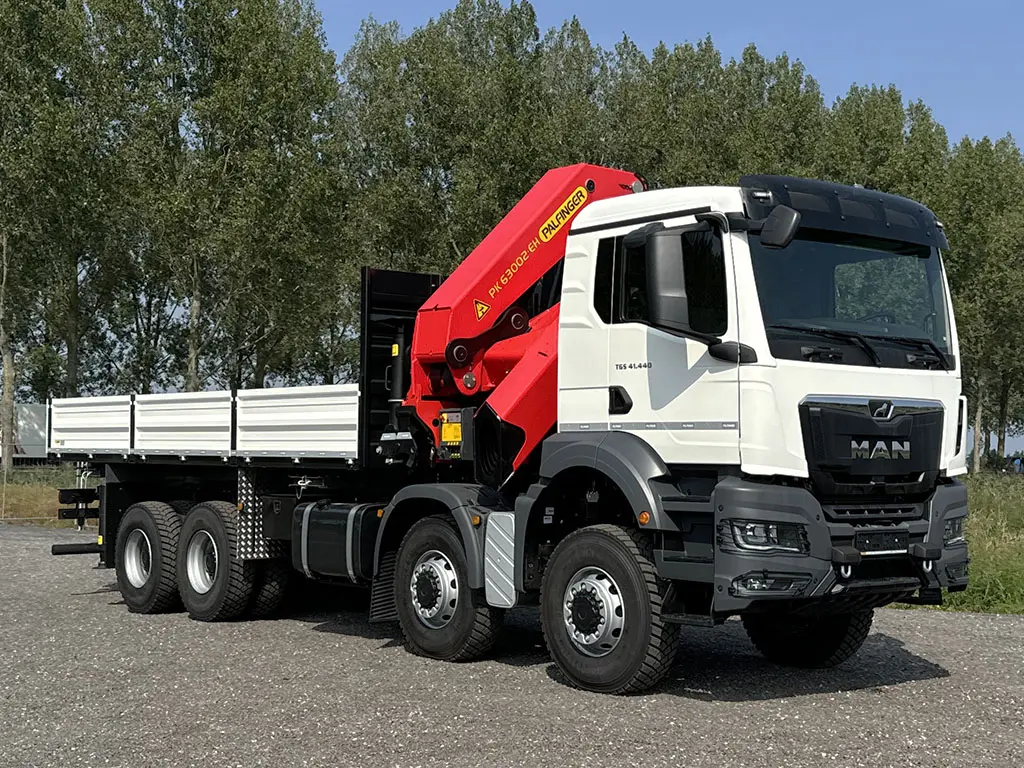

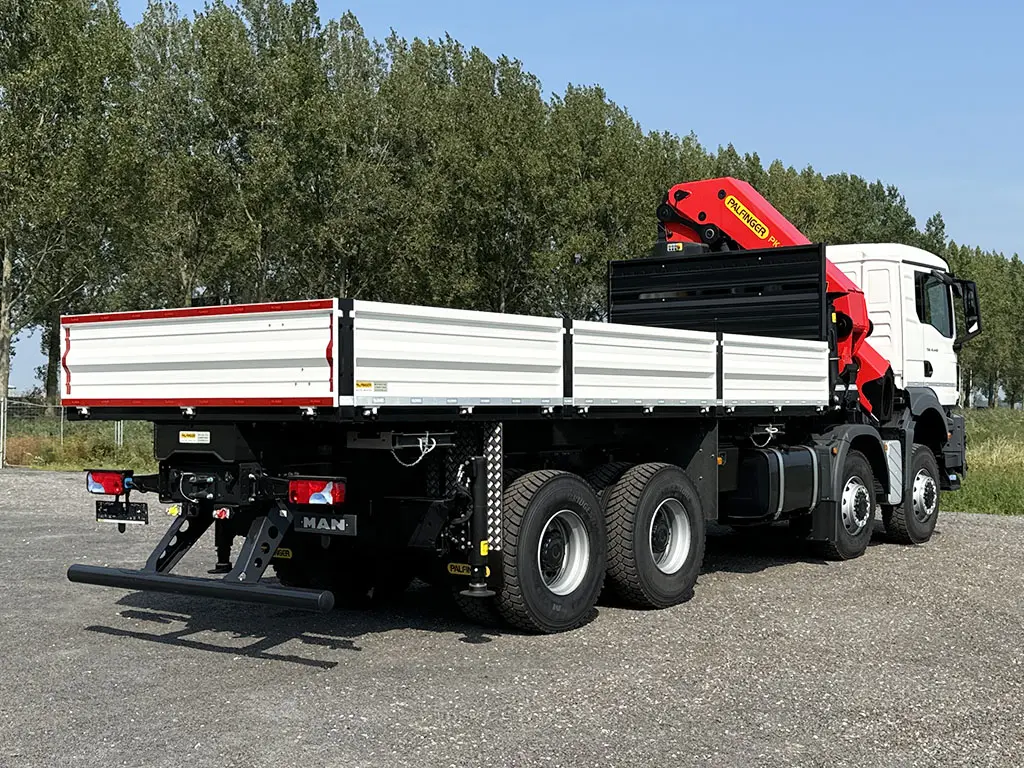

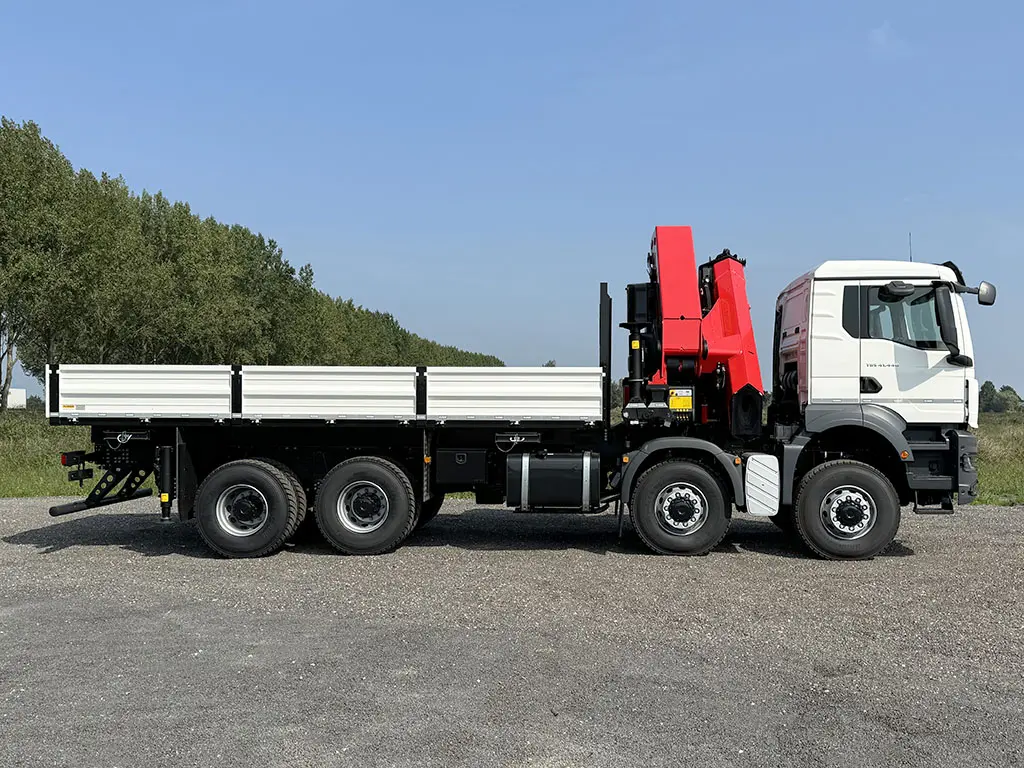

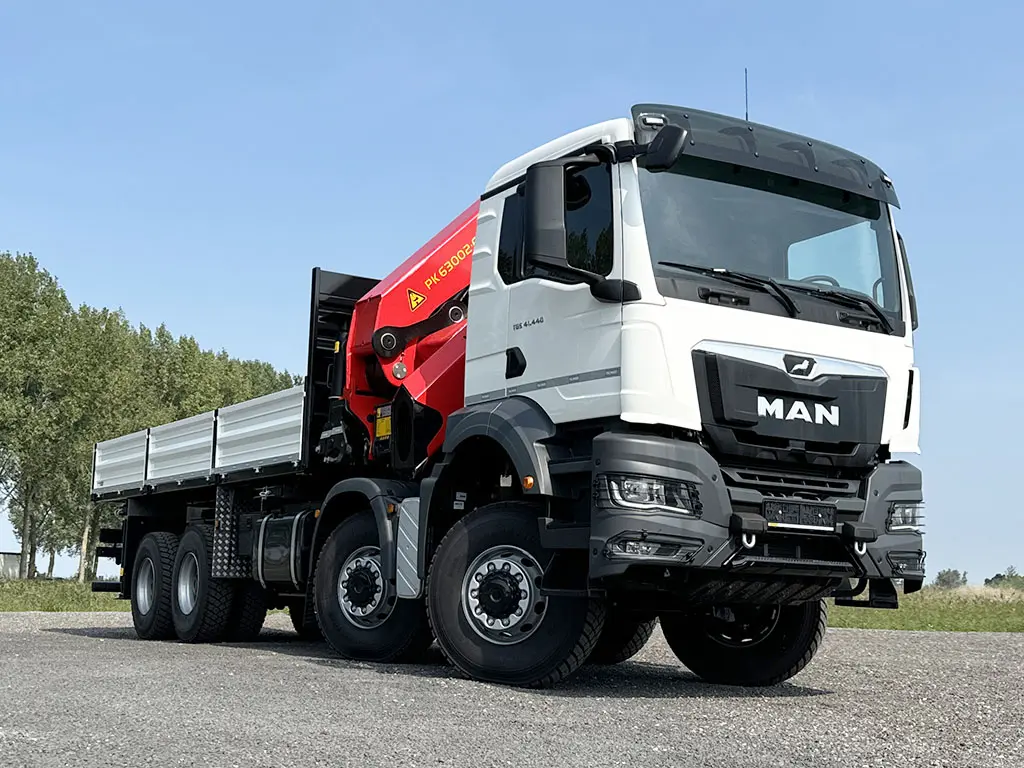

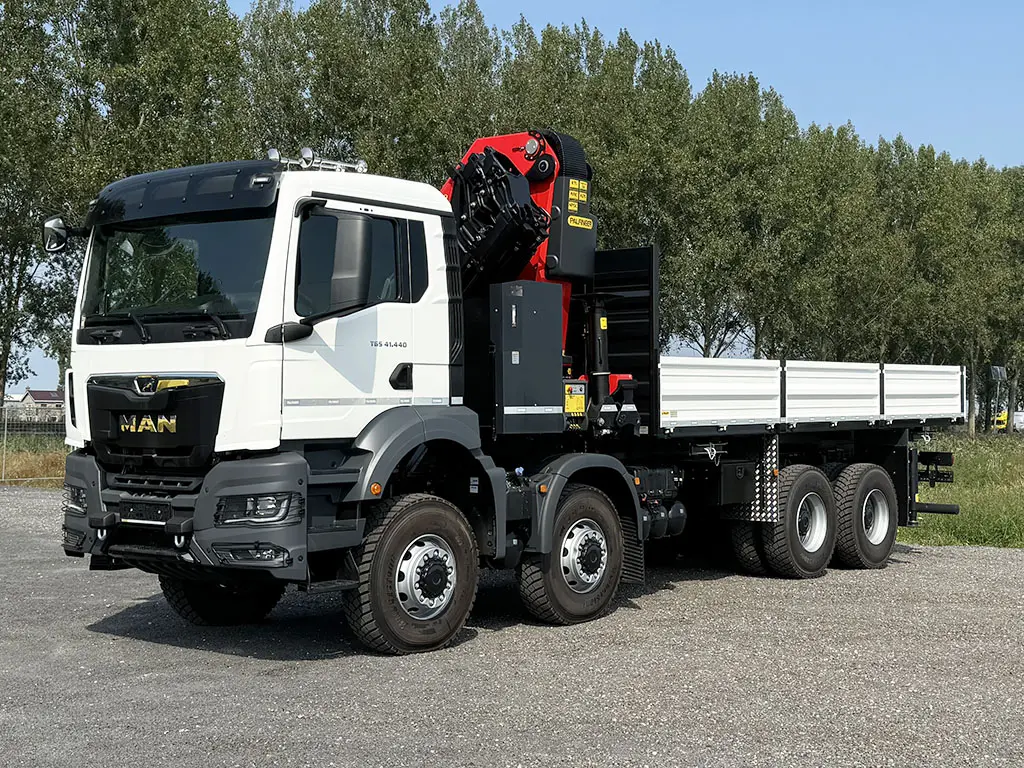

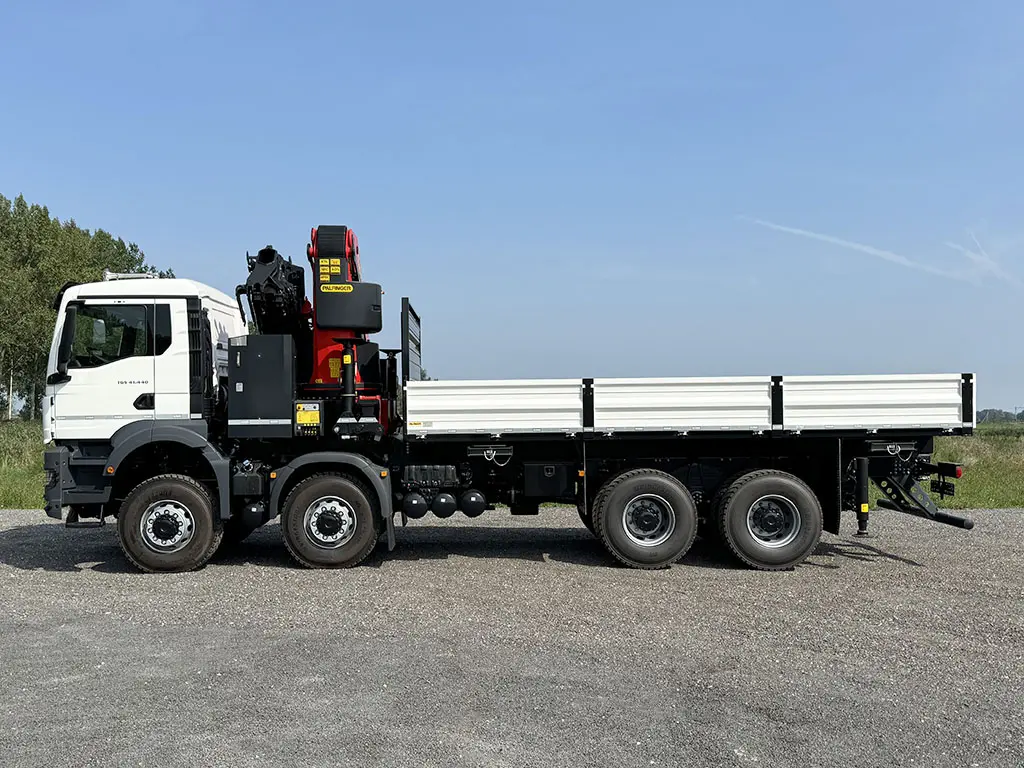

MAN TGS 41.440 BB CH 8x8 Crane Truck
8x8
440hp/324kW
EURO-5
Left hand drive
€ 317.500
Net unit price EXW
Specifications
General
- ID
- VMA5062
- Brand
- MAN
- Construction
- Crane Truck
- Construction brand
- Palfinger
- Fuel
- Diesel
- Production year
- 2024
- Model year
- 2024
- Vehicle status
- New / Unused
Engine
- Engine type
- D2066LF44
- Emission code
- EURO-5
- Engine power
- 440hp/324kW

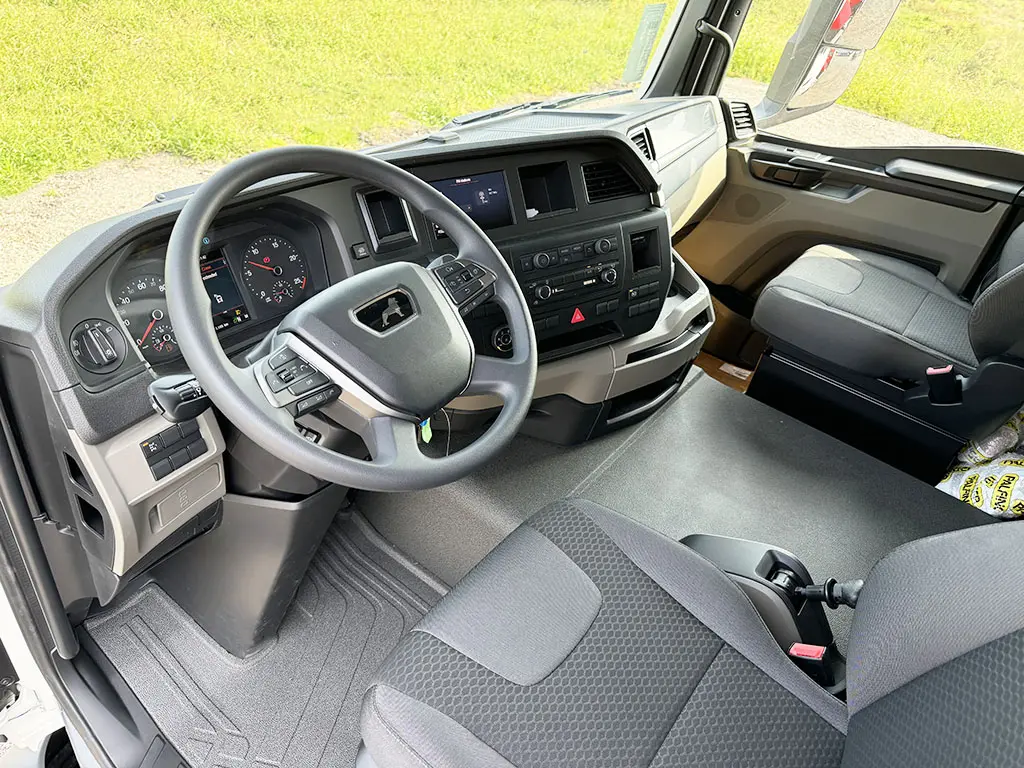

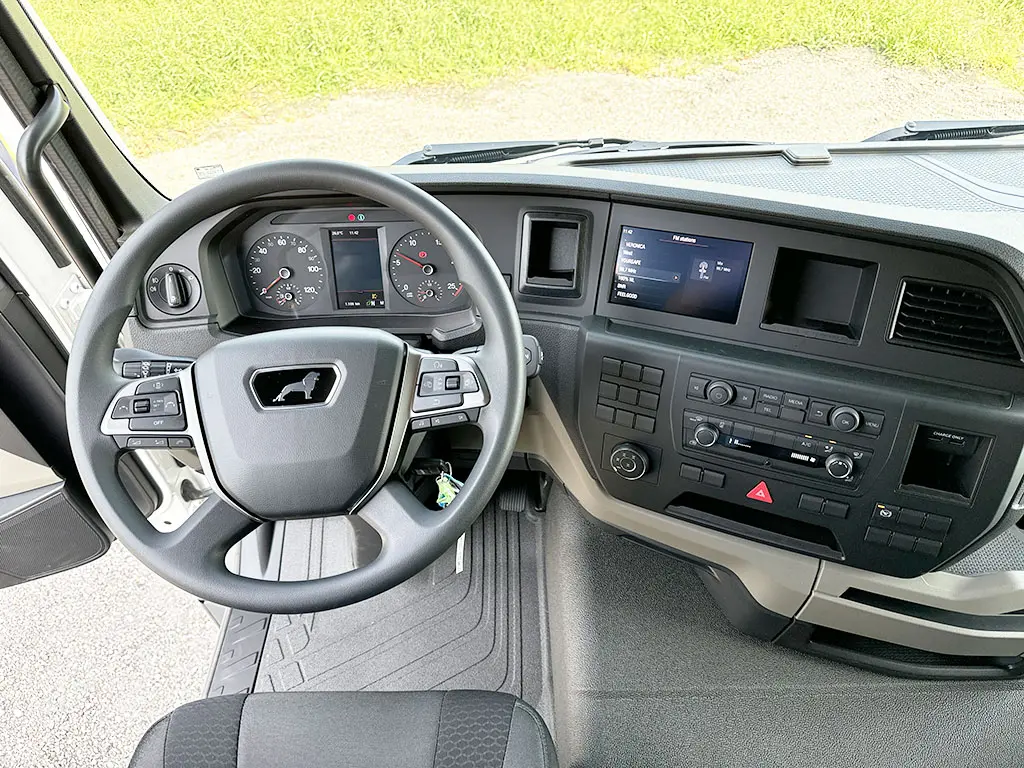

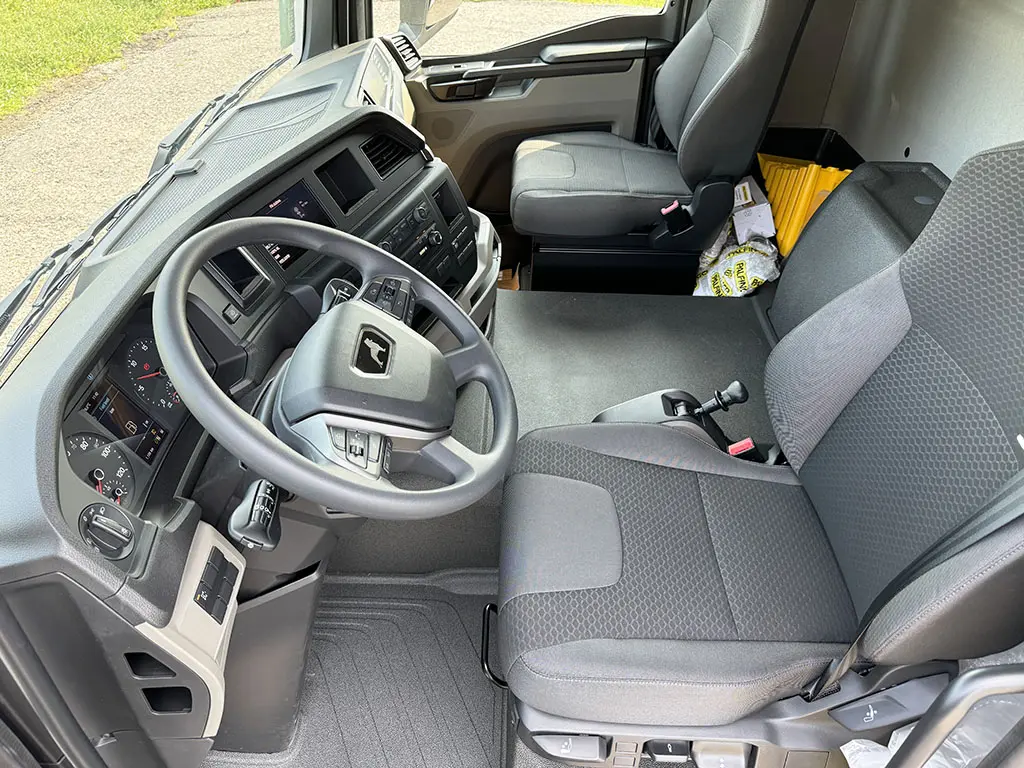

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NH/4C
Chassis
- Wheel base
- 3.600 mm
- GVW
- 41.000 kg
- Axle configuration
- 8x8
- Suspension
- Spring
Dimensions
- External dimension
- 10.075 x 2.500 x 4.000 mm
- Empty weight
- 23.520 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes

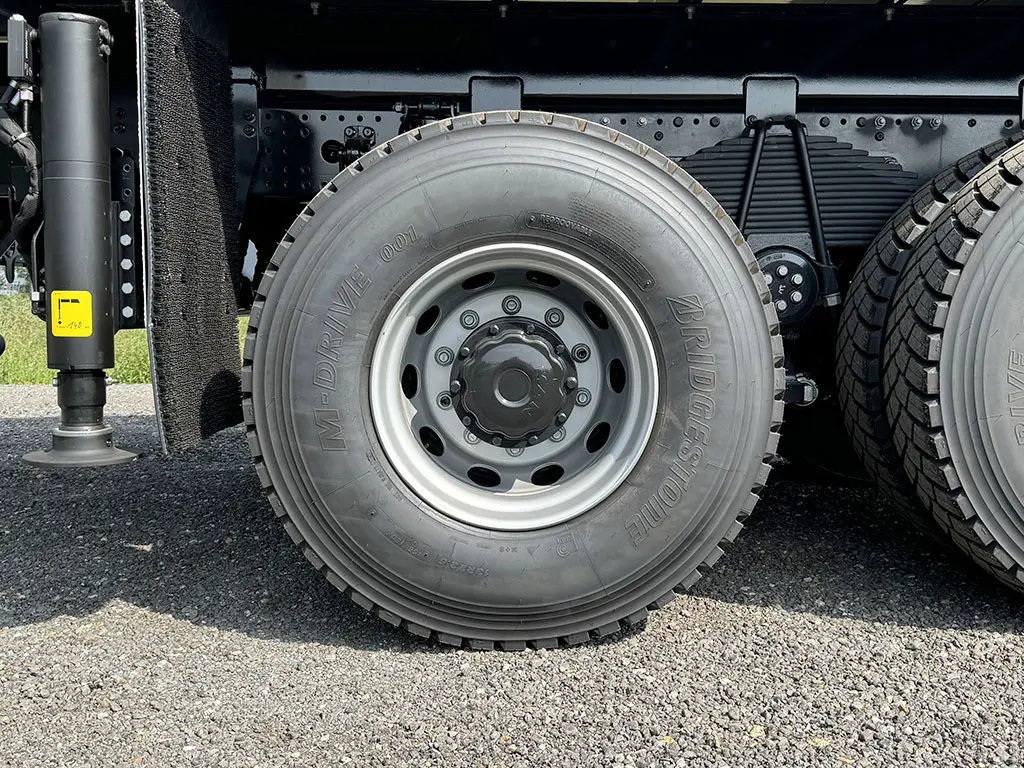

- Tire size
- 13R22.5
Axle 2
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 13R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 13R22.5
Axle 4
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 13R22.5
Remarks

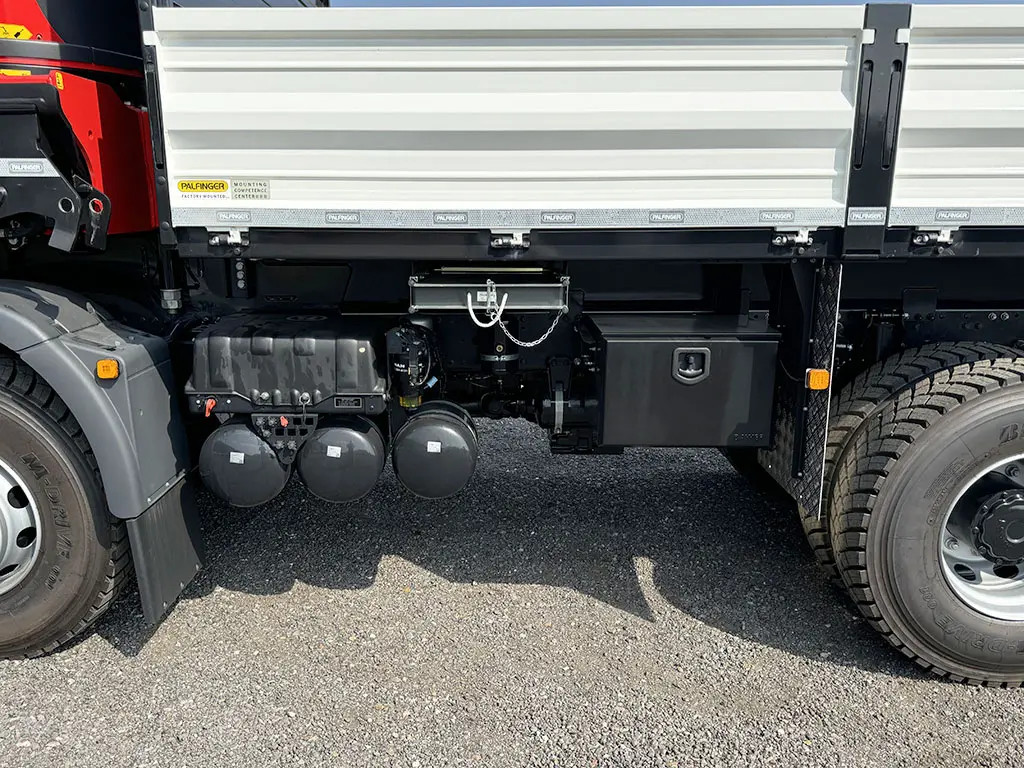

Fuel tank: 400 ltr.AdBlue tank: 35 ltr.

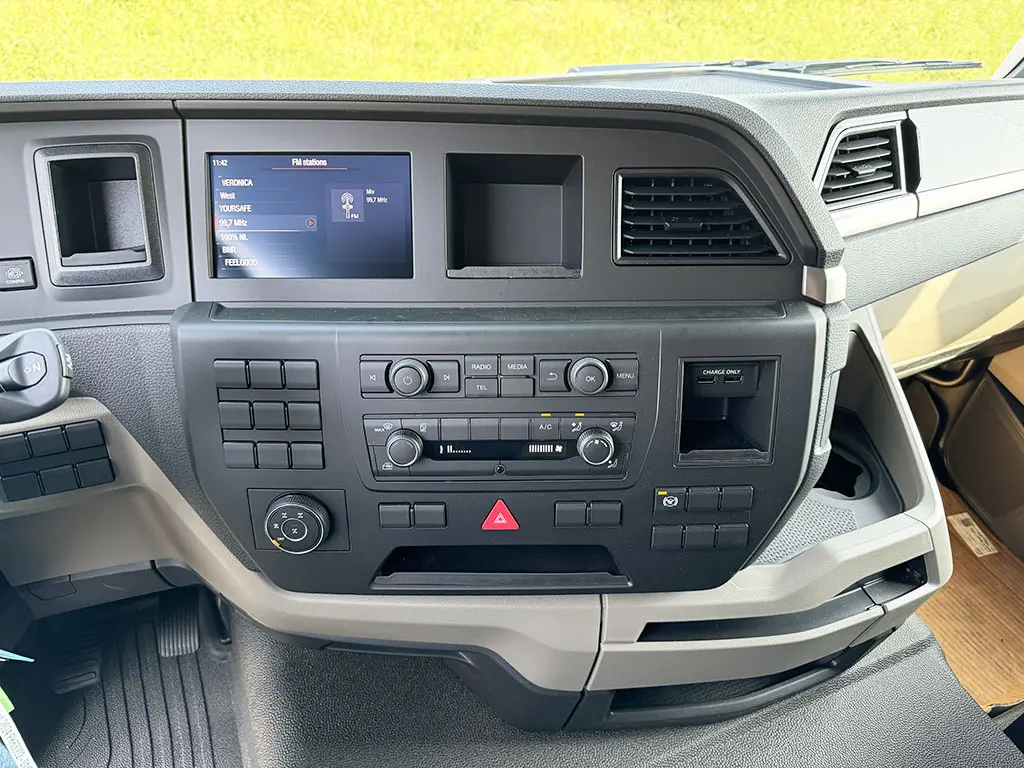

Air conditioning

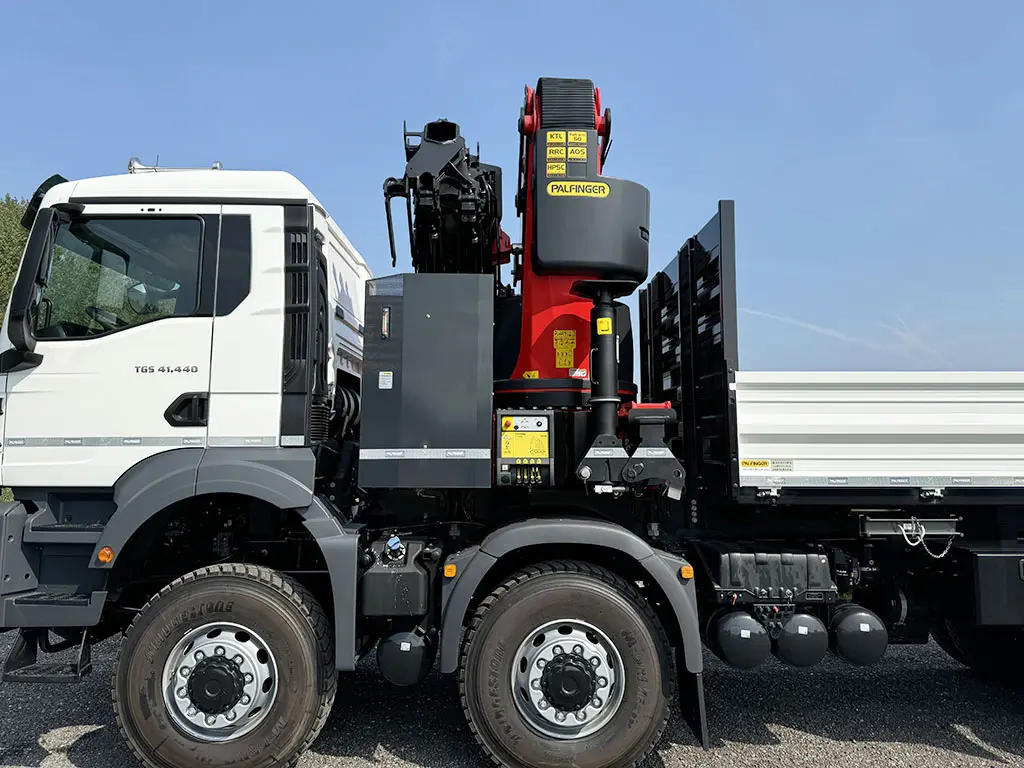

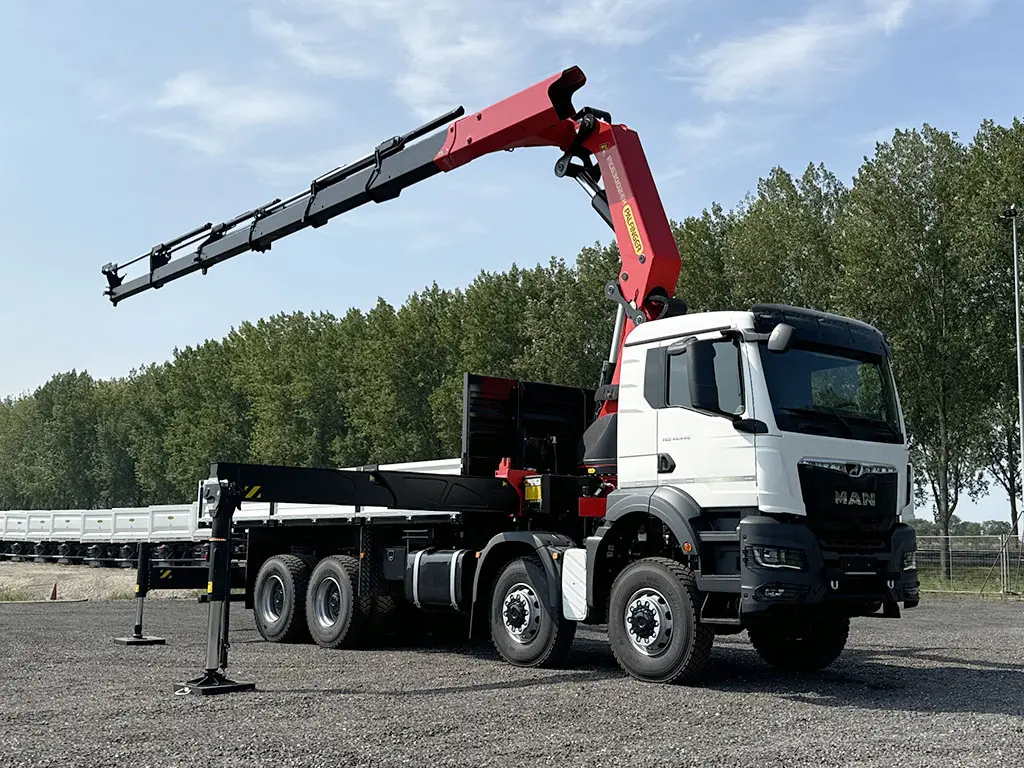

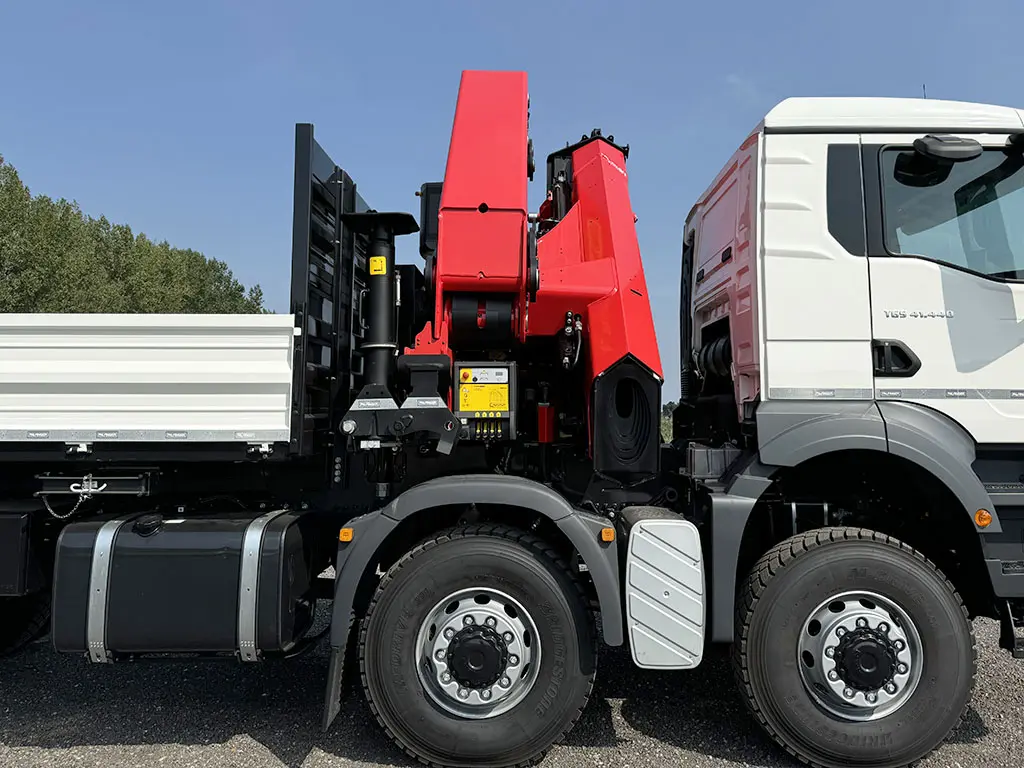

Equipped with crane and flatbed:

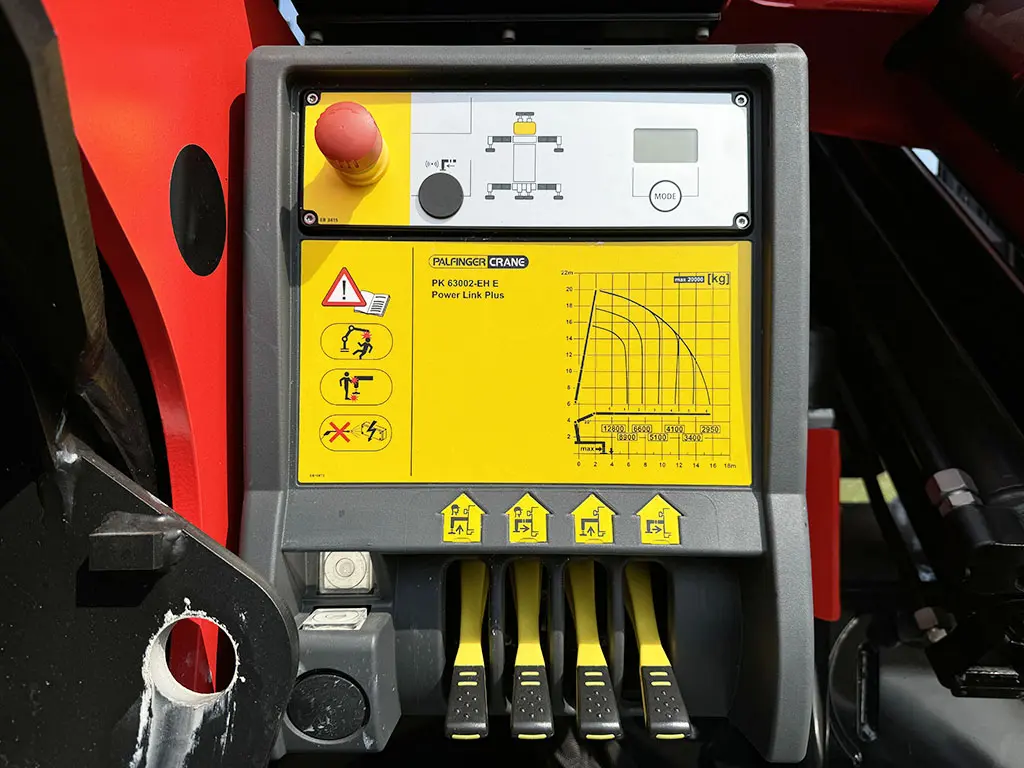

Type: Palfinger PK63002/EH High Performance
Lifting moment 582.7 kNm / 59.4 mt
Emergency cut off
Digital hour counter
Remote control
Oil cooler
Hydraulic overload protection

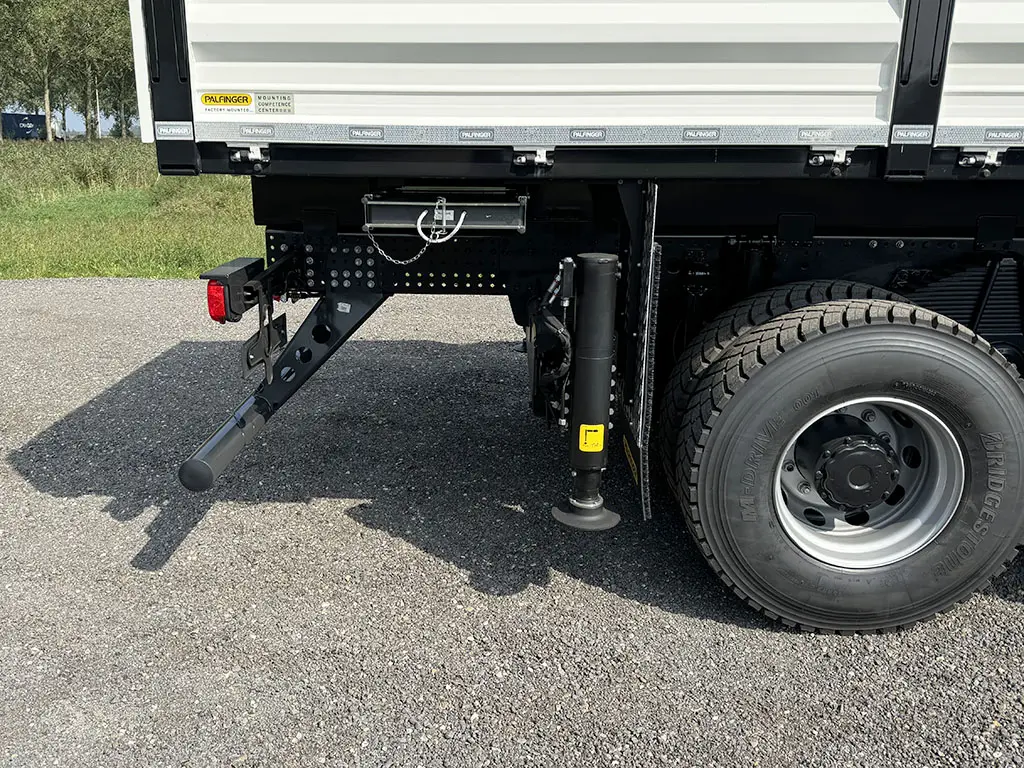

Outriggers hydraulic long

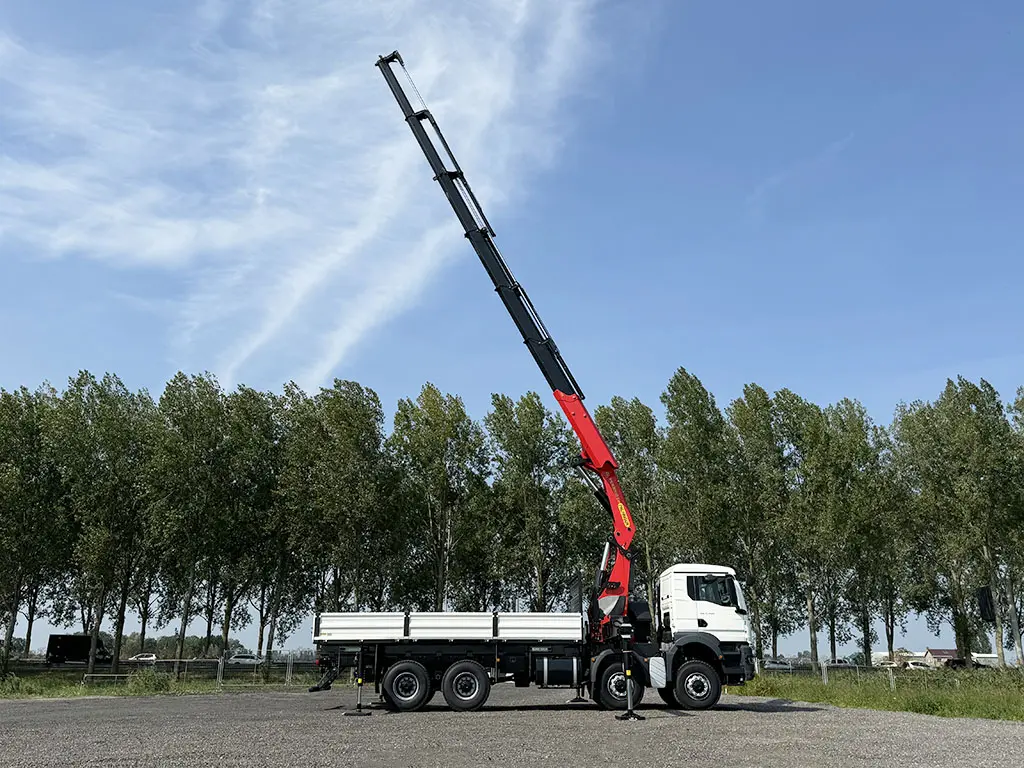

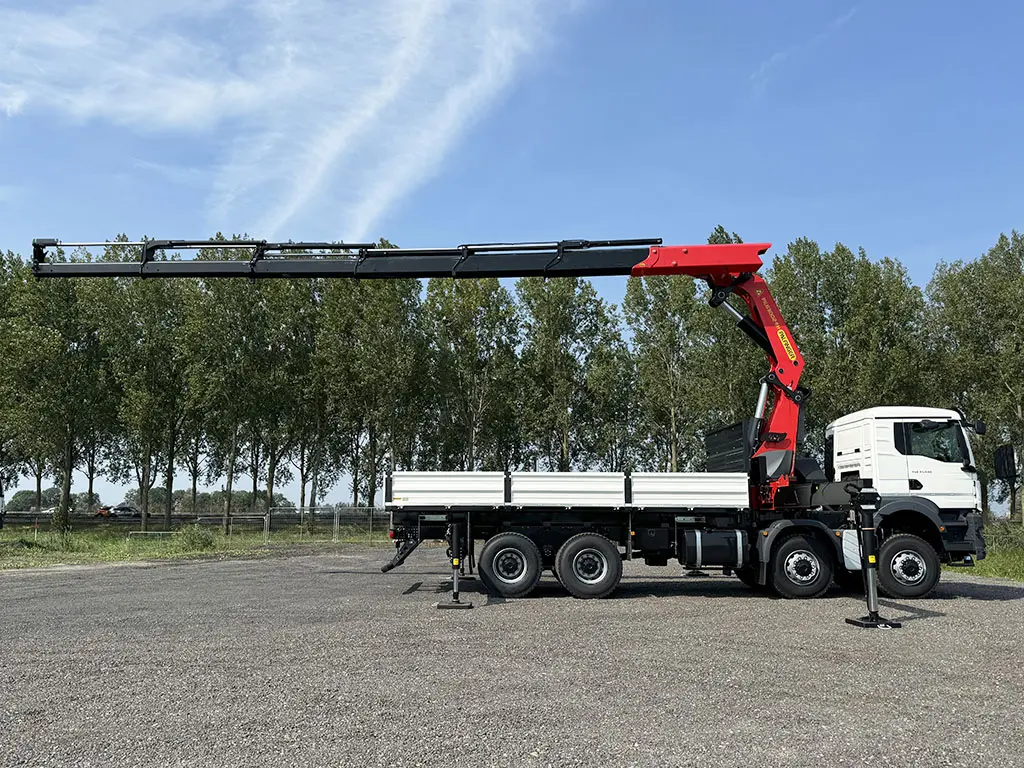

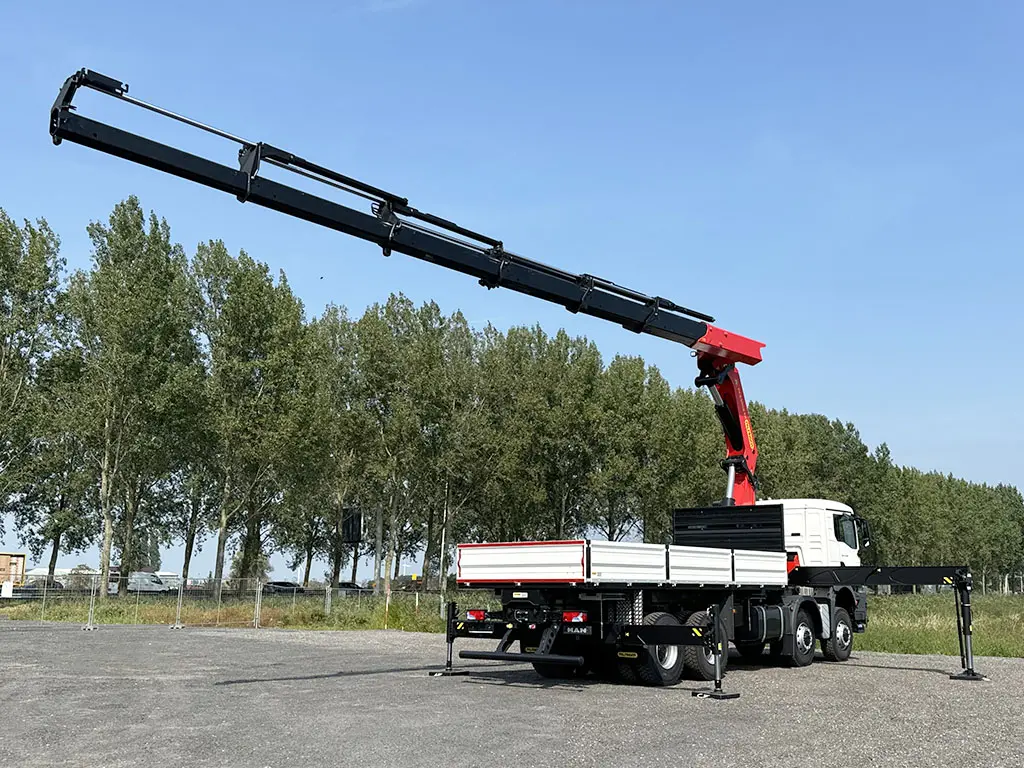

6 section hydraulic extension boom
Two hooks 8 and 18 ton.
Lifting capacity:
12.800 kg / 4.20 m
8.900 kg / 5.90 m
6.600 kg / 7.60 m
5.100 kg / 9.50 m
4.100 kg / 11.50 m
3.400 kg / 13.60 m
2.950 kg / 15.70 m

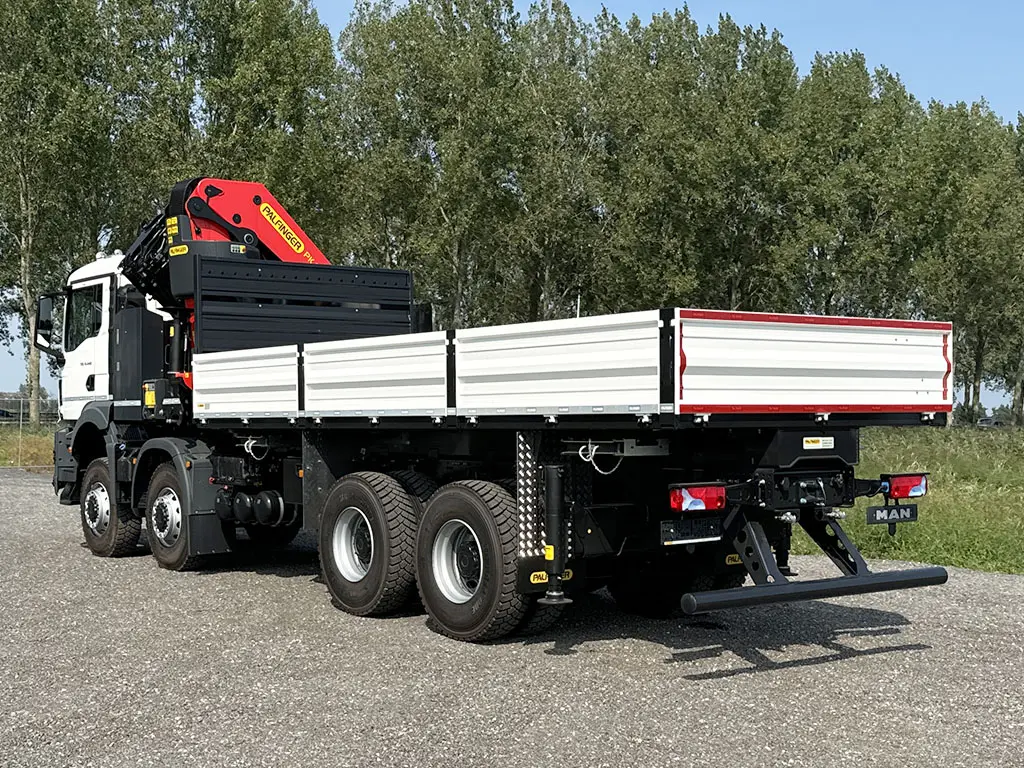

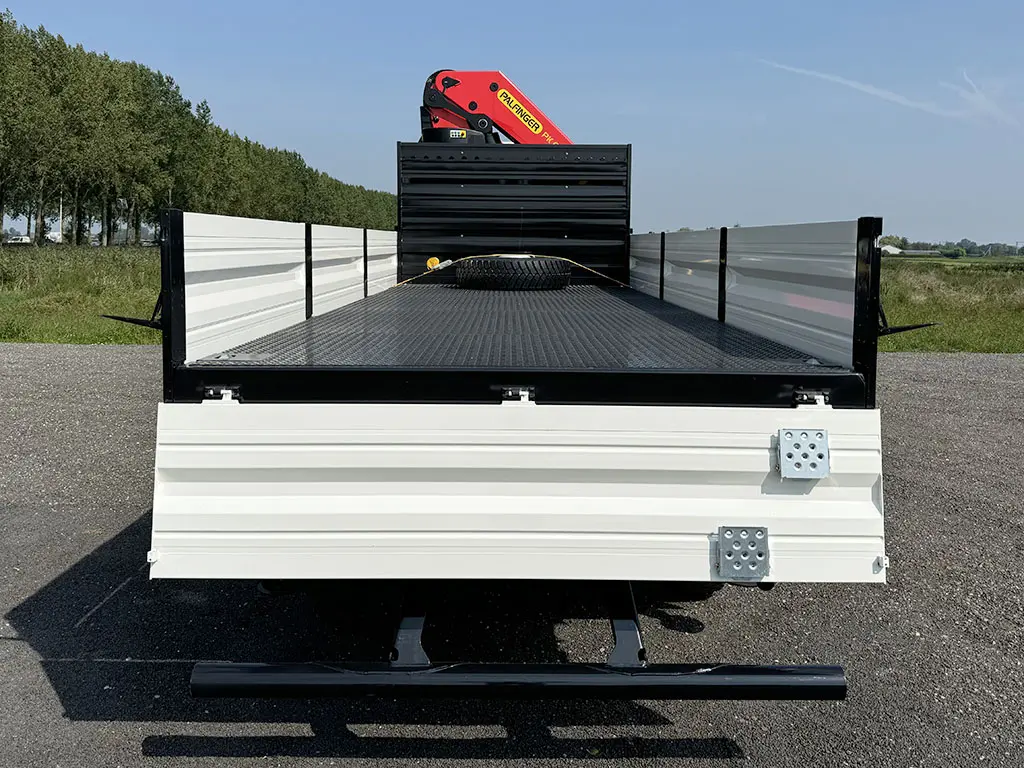

Open flatbed body with foldable sideboards
Twistlocks for 20 ft container
Flatbed body dimensions (LxWxH): 6.300 x 2.480 x 600 mm.
