In stock (1)
MAN TGS 41.400 BB CH Crane Truck 8x4
€ 435.000
Net unit price EXW
General
- ID
- VMA5339
- Brand
- MAN
- Construction
- Crane Truck
- Construction brand
- Stellar
- Fuel
- Diesel
- Model year
- 2026
- Vehicle status
- New / Unused
Chassis
- Wheel base
- 4.105 mm
- GVW
- 44.000 kg
- Axle configuration
- 8x4
- Suspension
- Spring
Engine
- Engine type
- D2066LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW

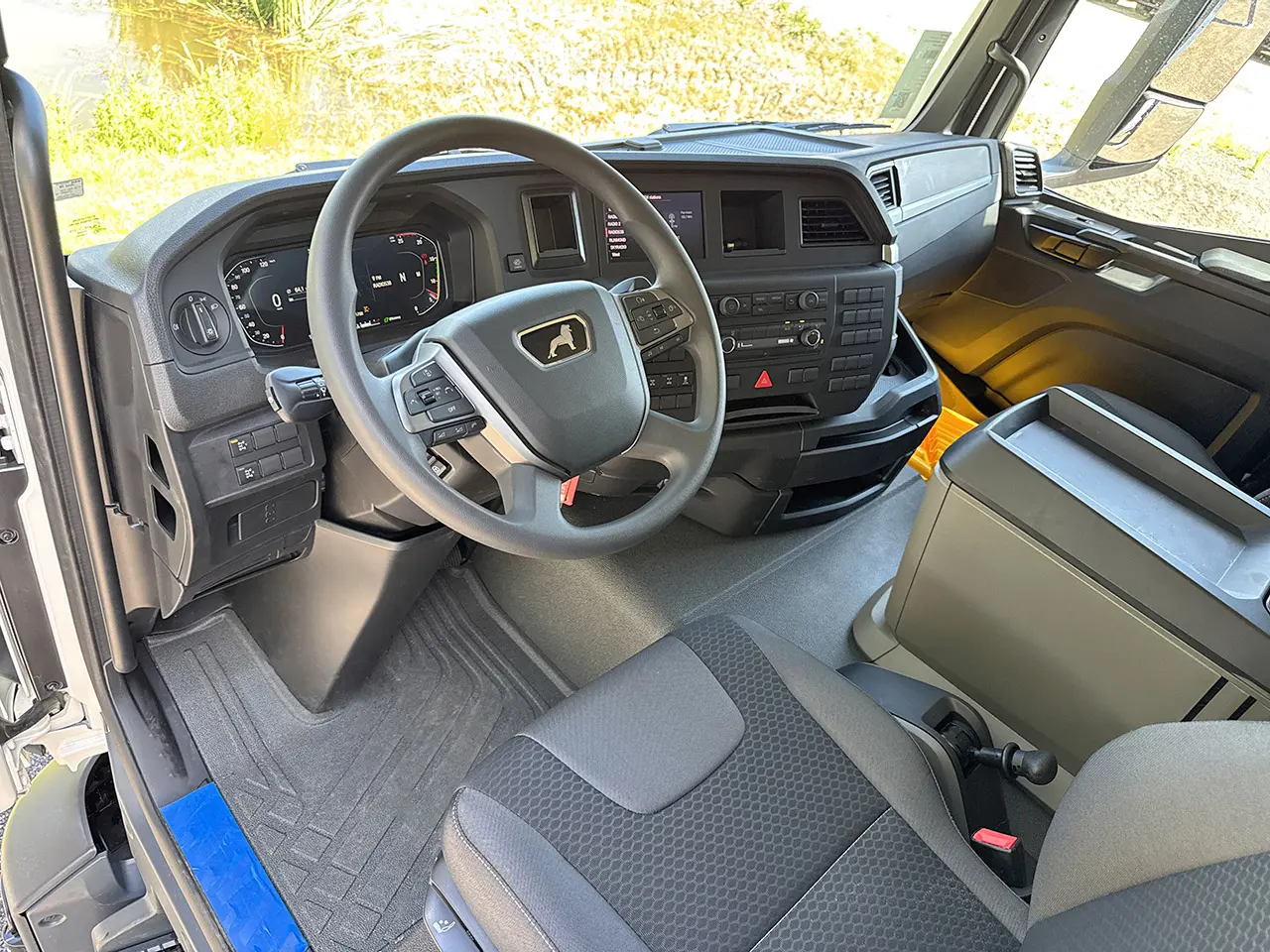

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NTX/10C
Dimensions
- External dimension
- 10.800 x 2.550 x 4.300 mm
- Empty weight
- 22.500 kg
Remarks
Fuel tank: 300 ltr.Air conditioning

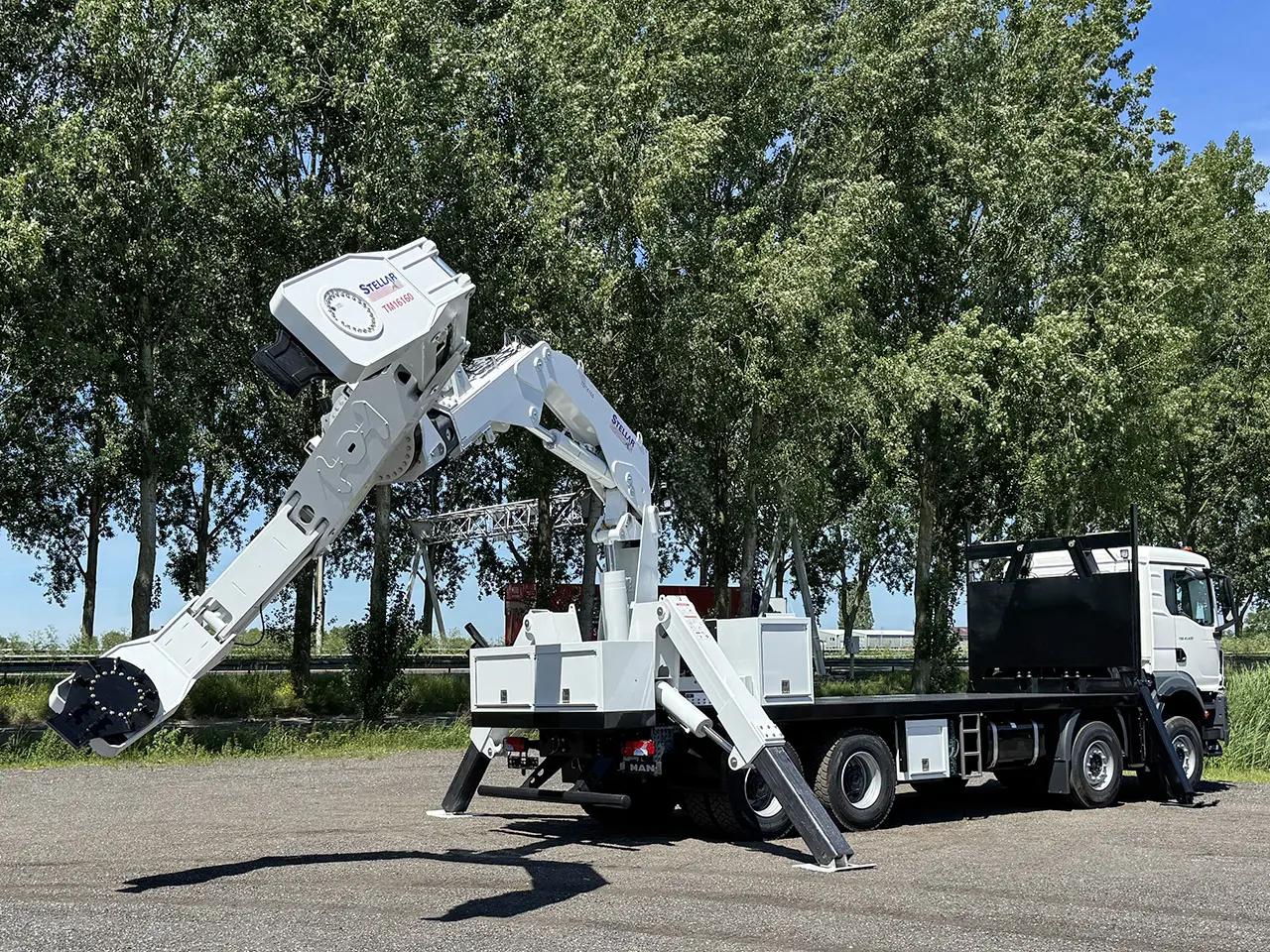

Equipped with Stellar crane with tire handler and flatbed:
Type: Stellar 28000 OTR
Crane Rating: 38.73 T/M
Standard Boom Length: 4.01 m
Max. Horizontal Reach: 4.95 m
Max. Vertical Lift: 7.62 m
315 degree power (planetary reduction)
Proportional paddle controls
Stabilizers front and rear
Compressor SHD-245 direct driven, mounted above deck for maintenance
4-cylinder, 2-stage capable of 110 CFM @ 175 PSI
Power Supply Req: 16 gpm @ 4200 psi - PTO & Pump
Lifting capacity:
12.701 kg / 3.05 m
9.662 kg / 4.01 m
7.802 kg / 4.95 m
TM16160 Tire Manipulator
Tireman Capacity: 7,484 kg / 4.57 m
Clamping Span: 40” to 158” (102 cm to 401 cm)
Clamping Pad Rotation: Continuous 360-degree power
Tilt: +80 degrees to -20 degrees
Complete specification in PDF.
