In stock (1)

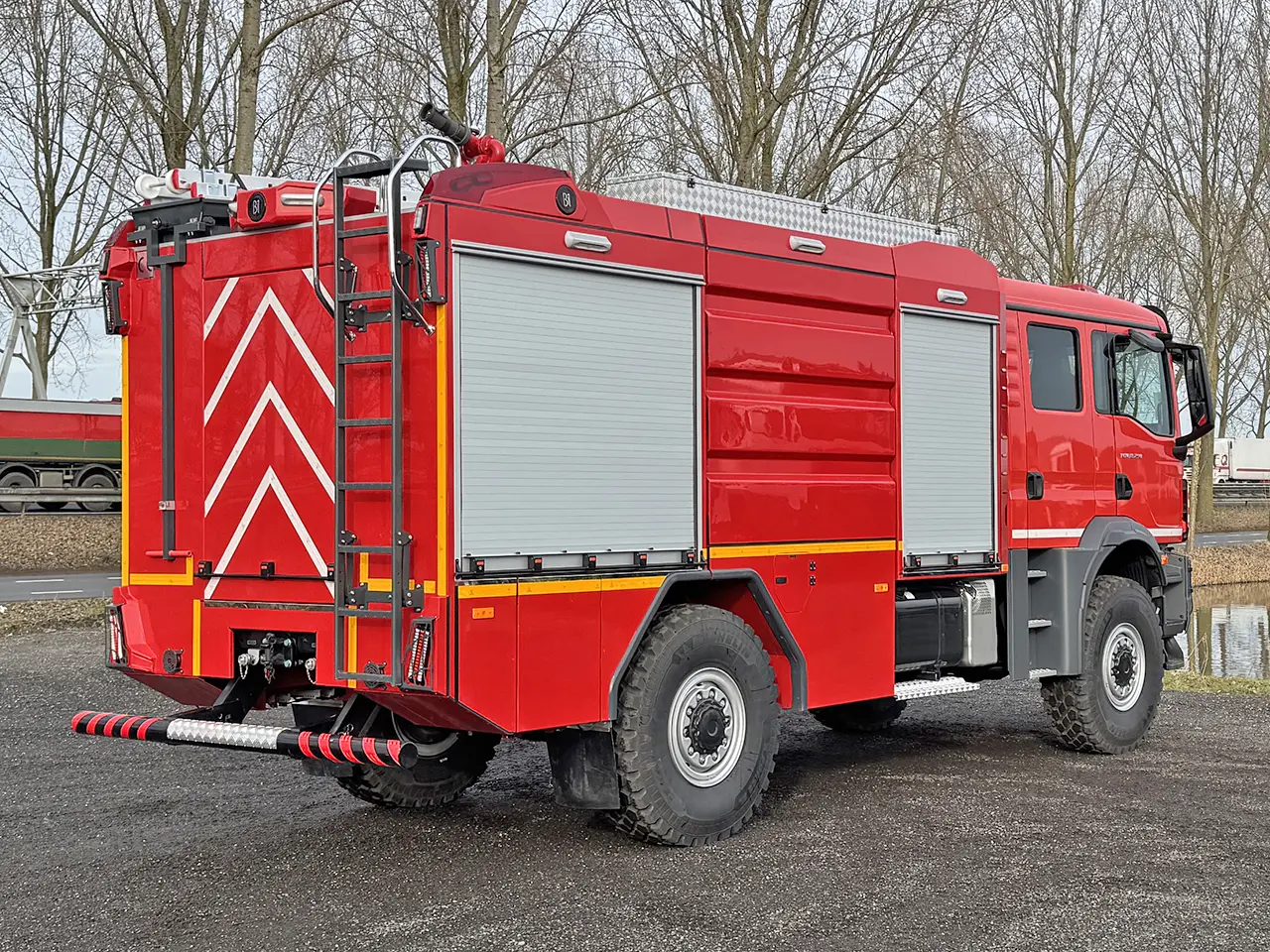

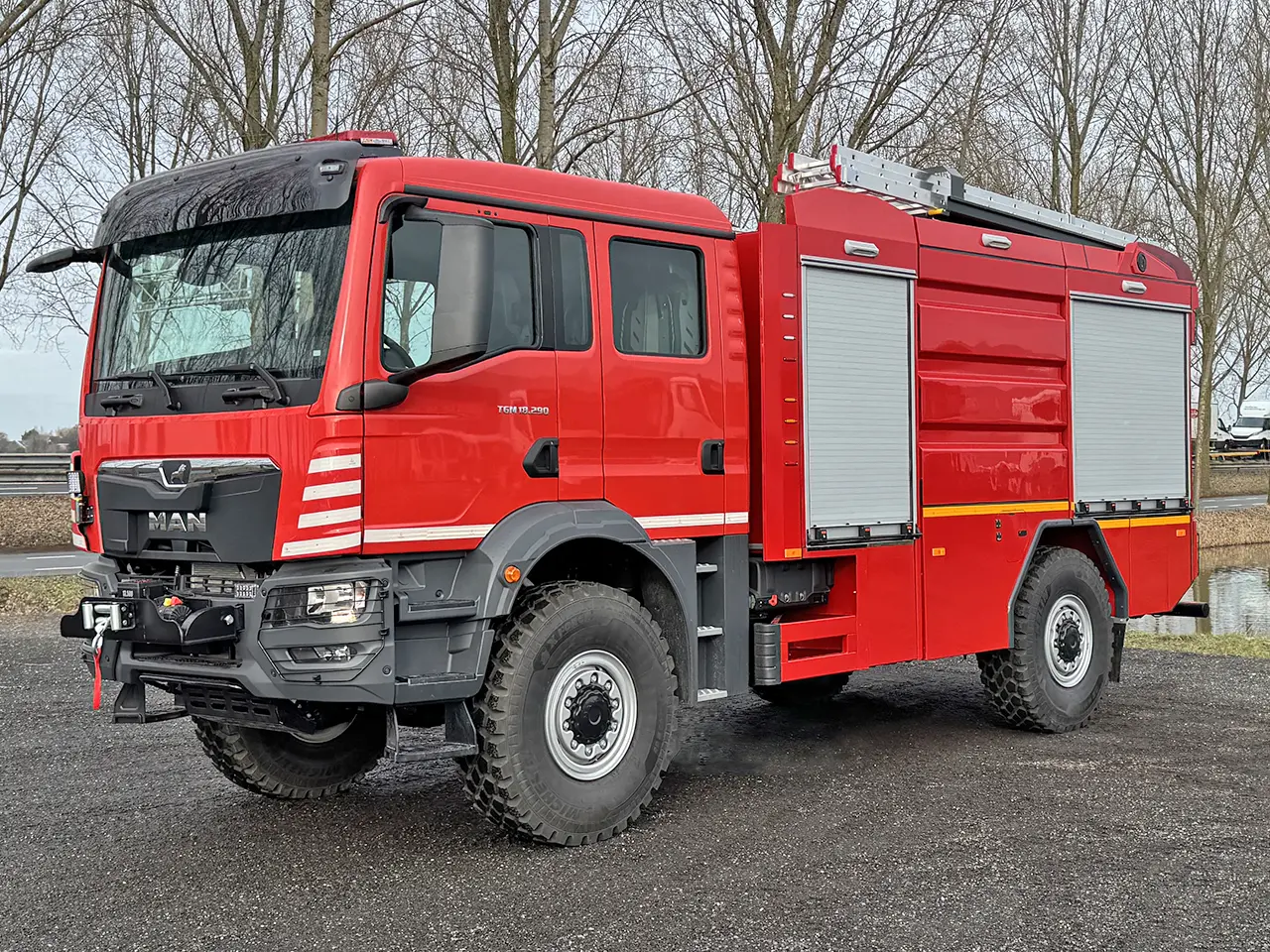

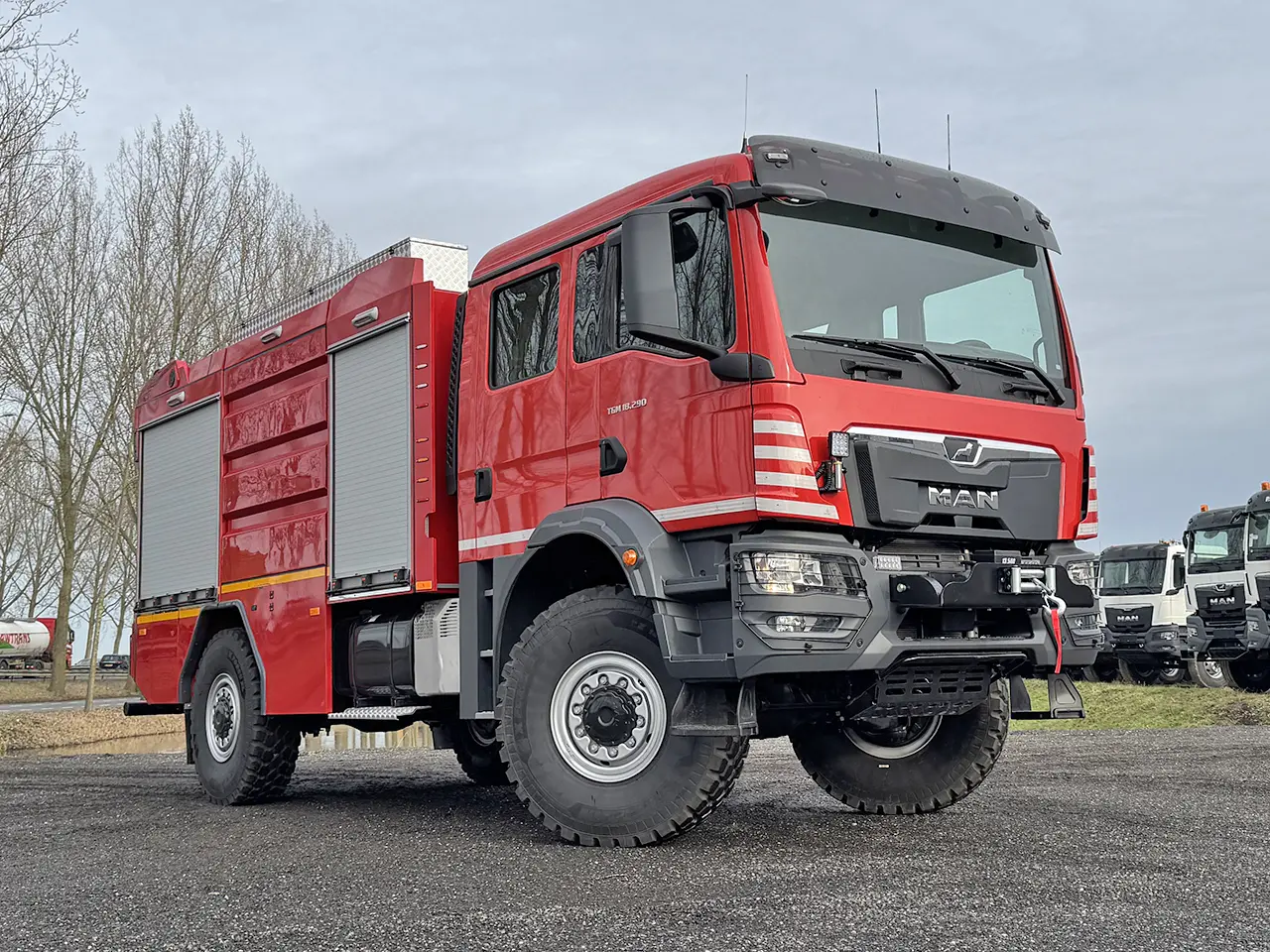

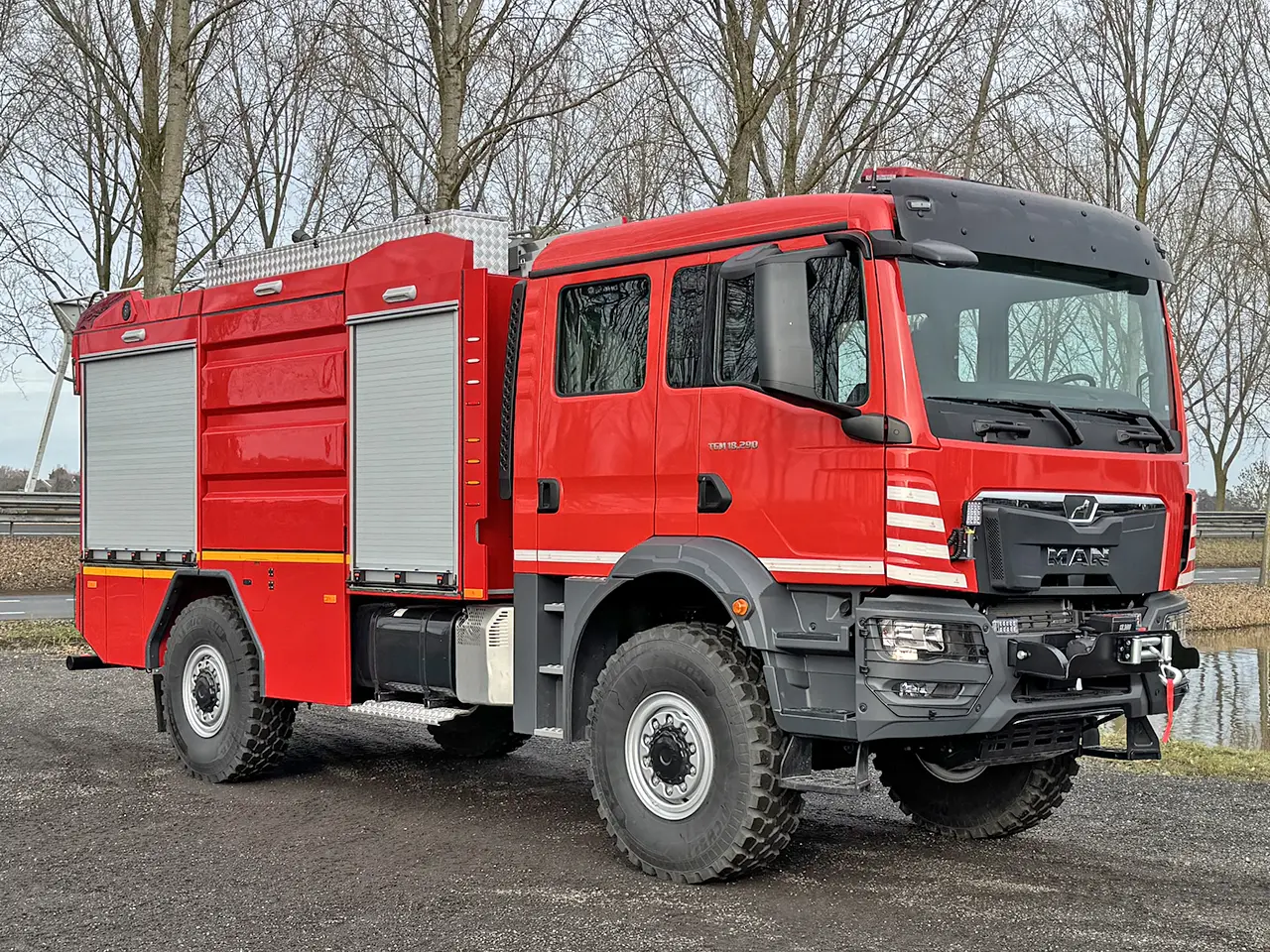

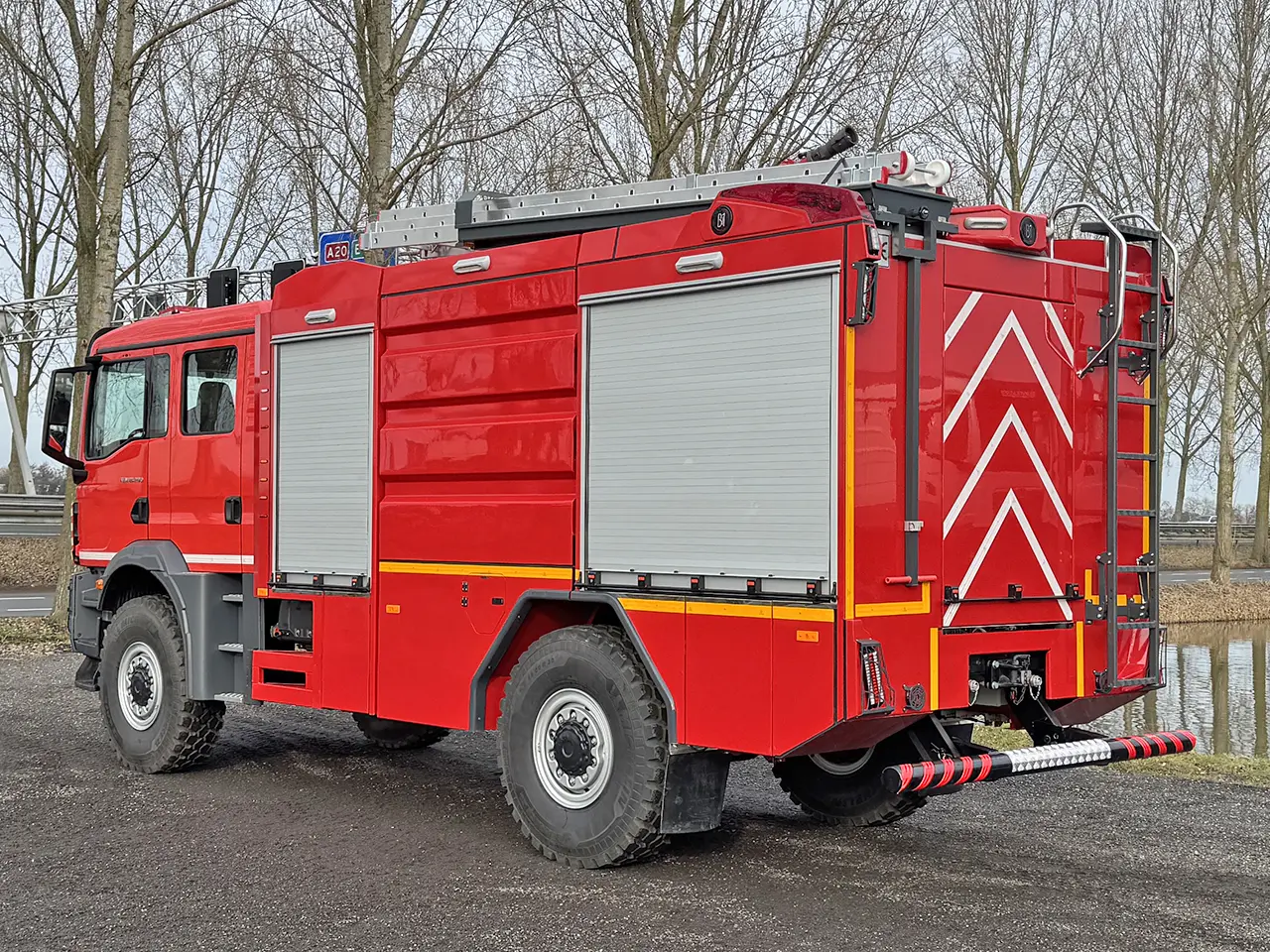

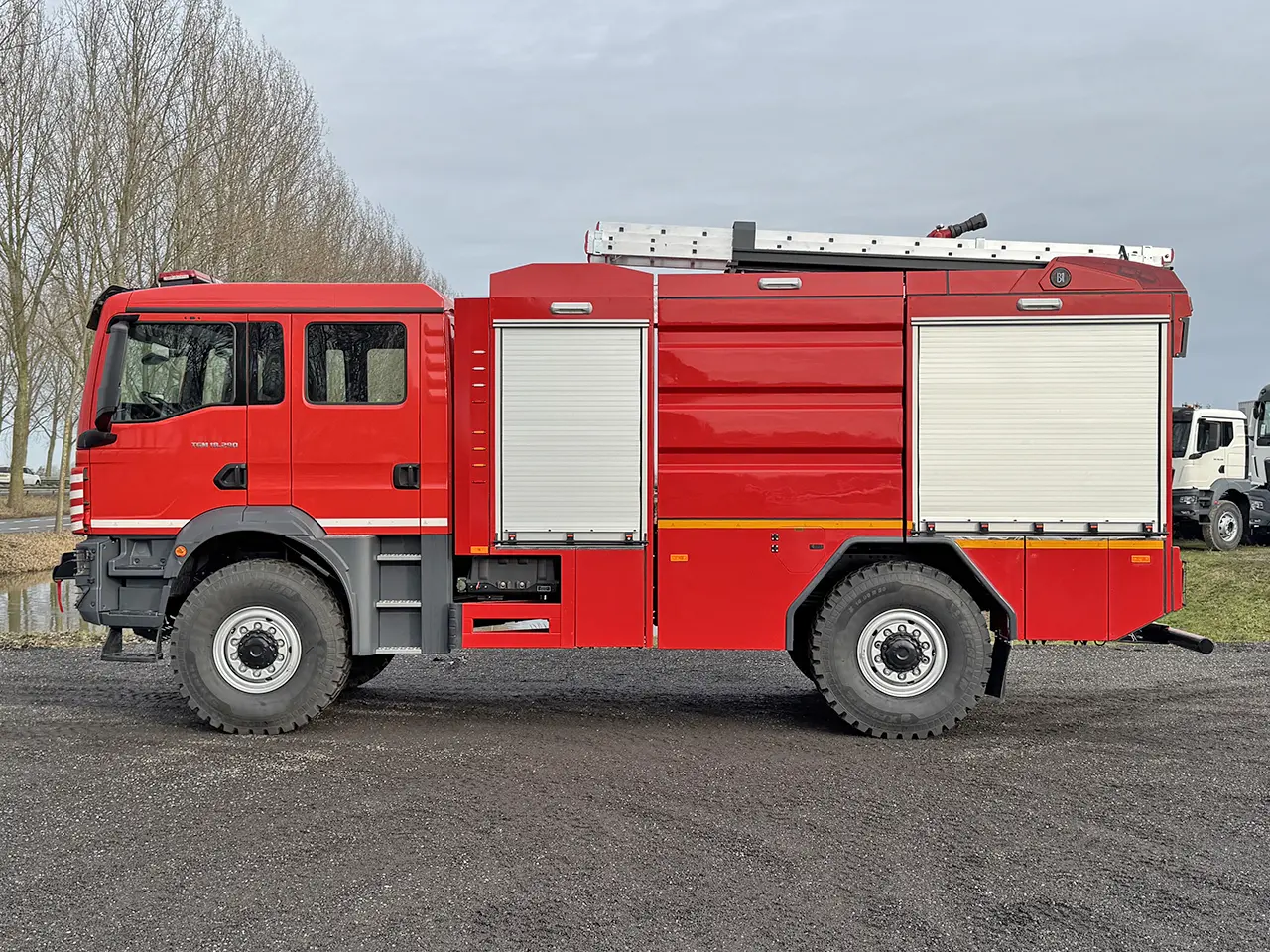

MAN TGM 18.290 BB CH 4x4 Fire Fighter Truck
4x4
290hp/213kW
EURO-5
Left hand drive
€ 249.500
Net unit price EXW
Specifications
General
- ID
- VMA5156
- Brand
- MAN
- Construction
- Fire Fighter Truck
- Construction volume
- 5.500 Ltr.
- Fuel
- Diesel
- Model year
- 2026
- Vehicle status
- New / Unused
Engine
- Engine type
- D0836LFL90
- Emission code
- EURO-5
- Engine power
- 290hp/213kW
Cabin

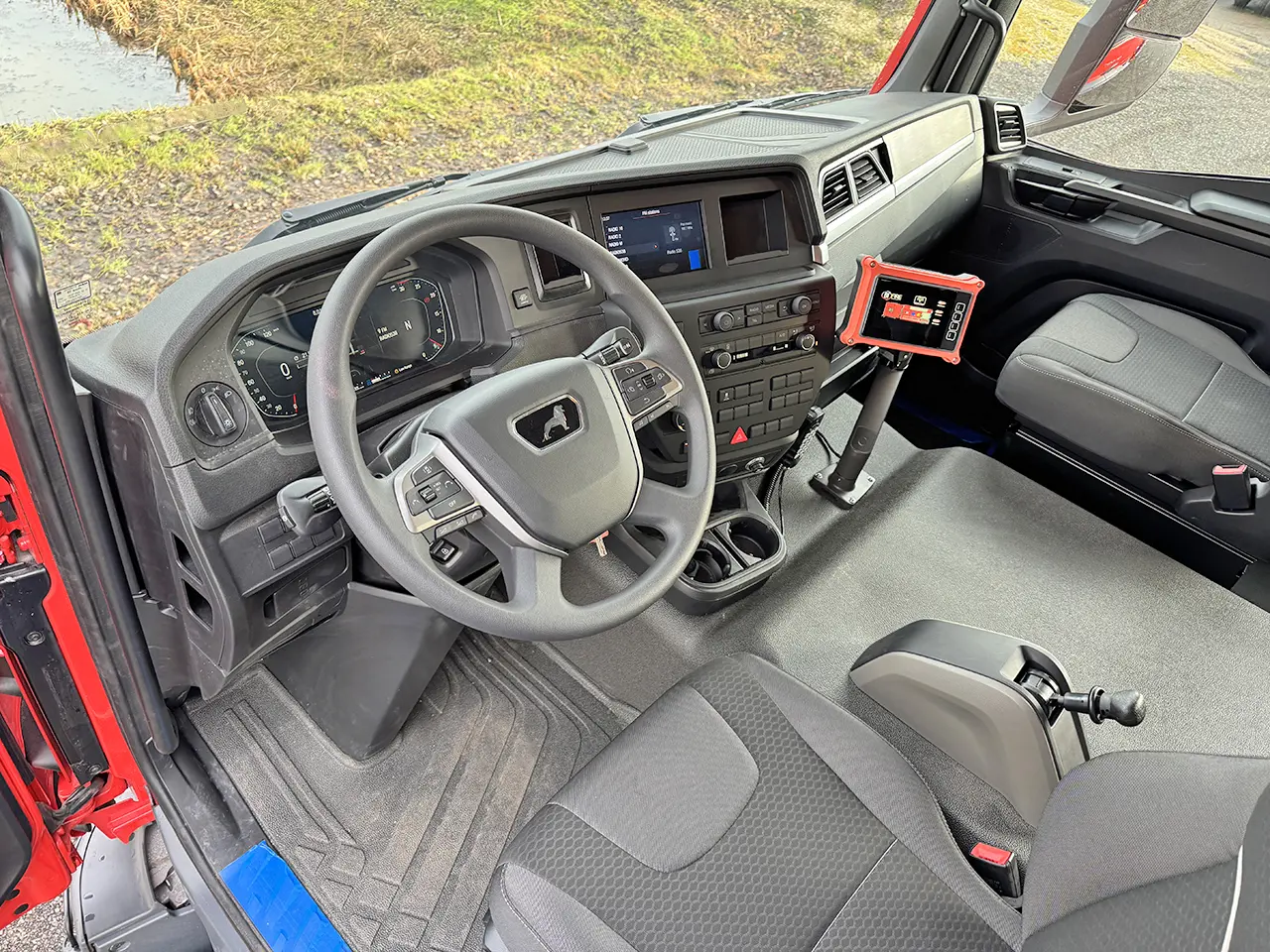

- Cabin
- Crew
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- PowerMatic 08.13 OD
- PTO
- Gearbox dependant
Chassis
- Wheel base
- 4.500 mm
- GVW
- 17.500 kg
- Axle configuration
- 4x4
- Suspension
- Spring
Dimensions
- External dimension
- 7.990 x 2.550 x 3.640 mm
- Empty weight
- 10.430 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes

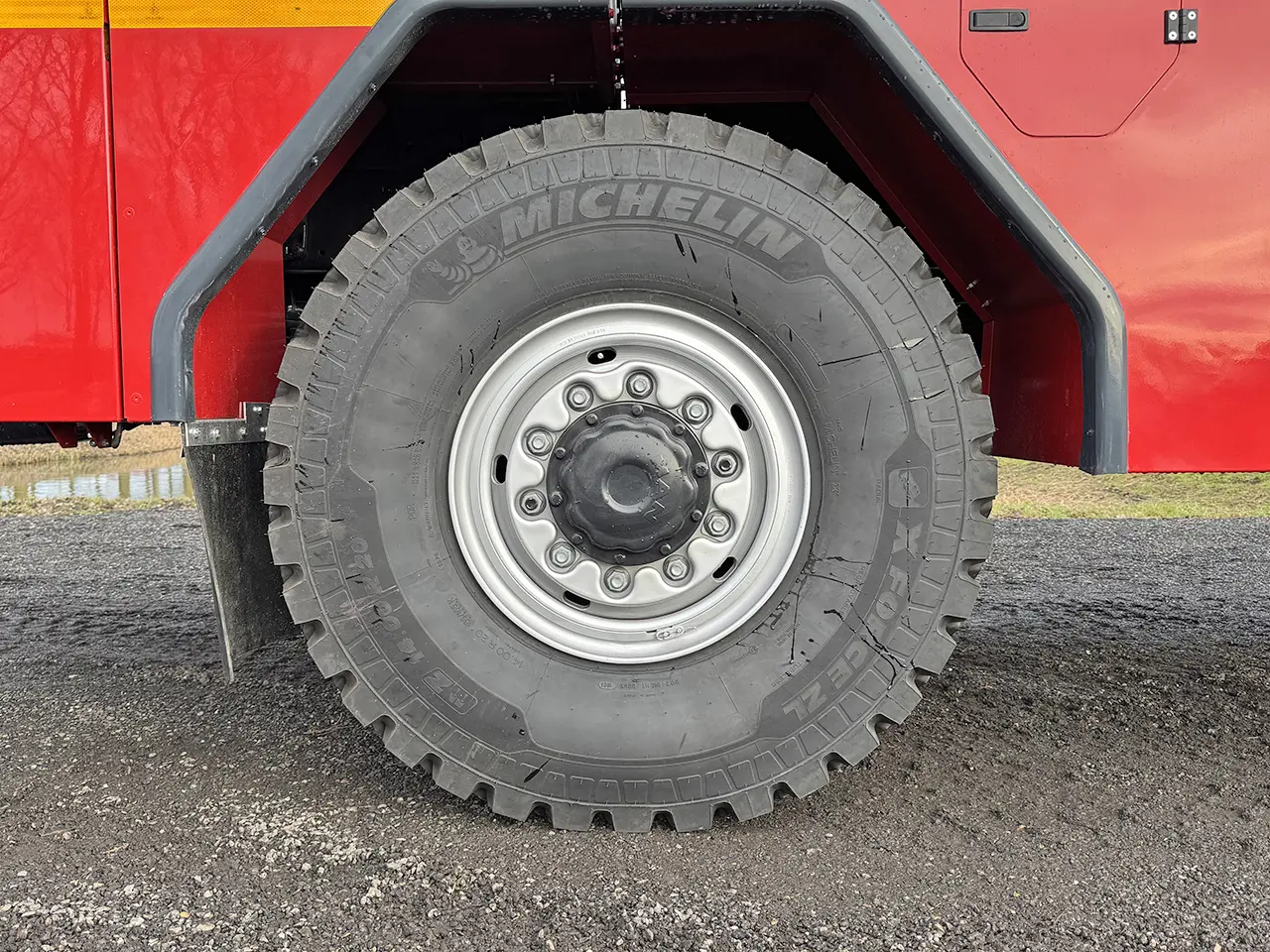

- Tire size
- 14.00R20
Axle 2
- Steering
- No
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 14.00R20
Remarks
Fuel tank: 300 ltr.AdBlue tank: 27 ltr.
Air conditioning
Equipped with fire fighting engine:

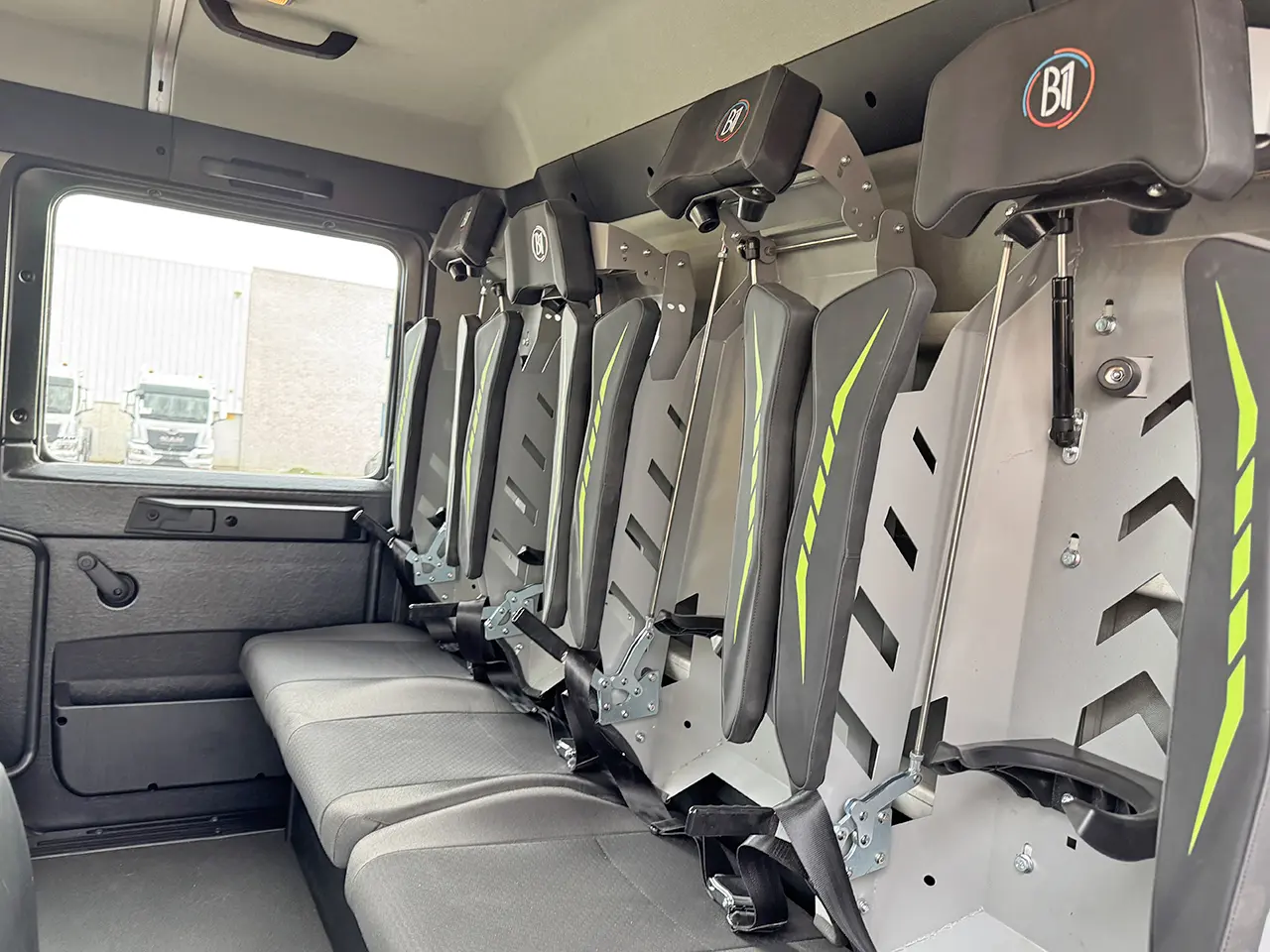

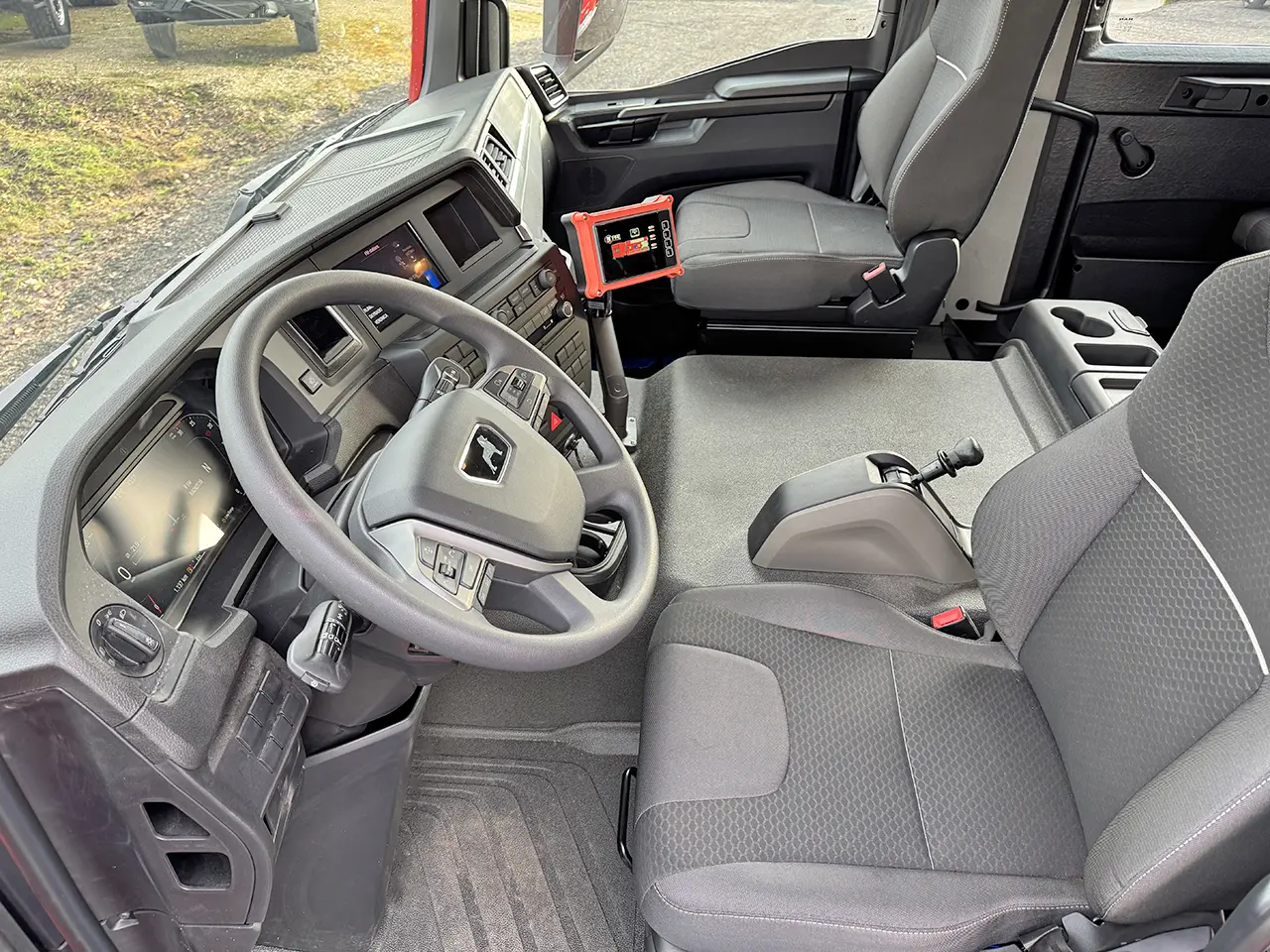

Crew cab for 5+1 seats

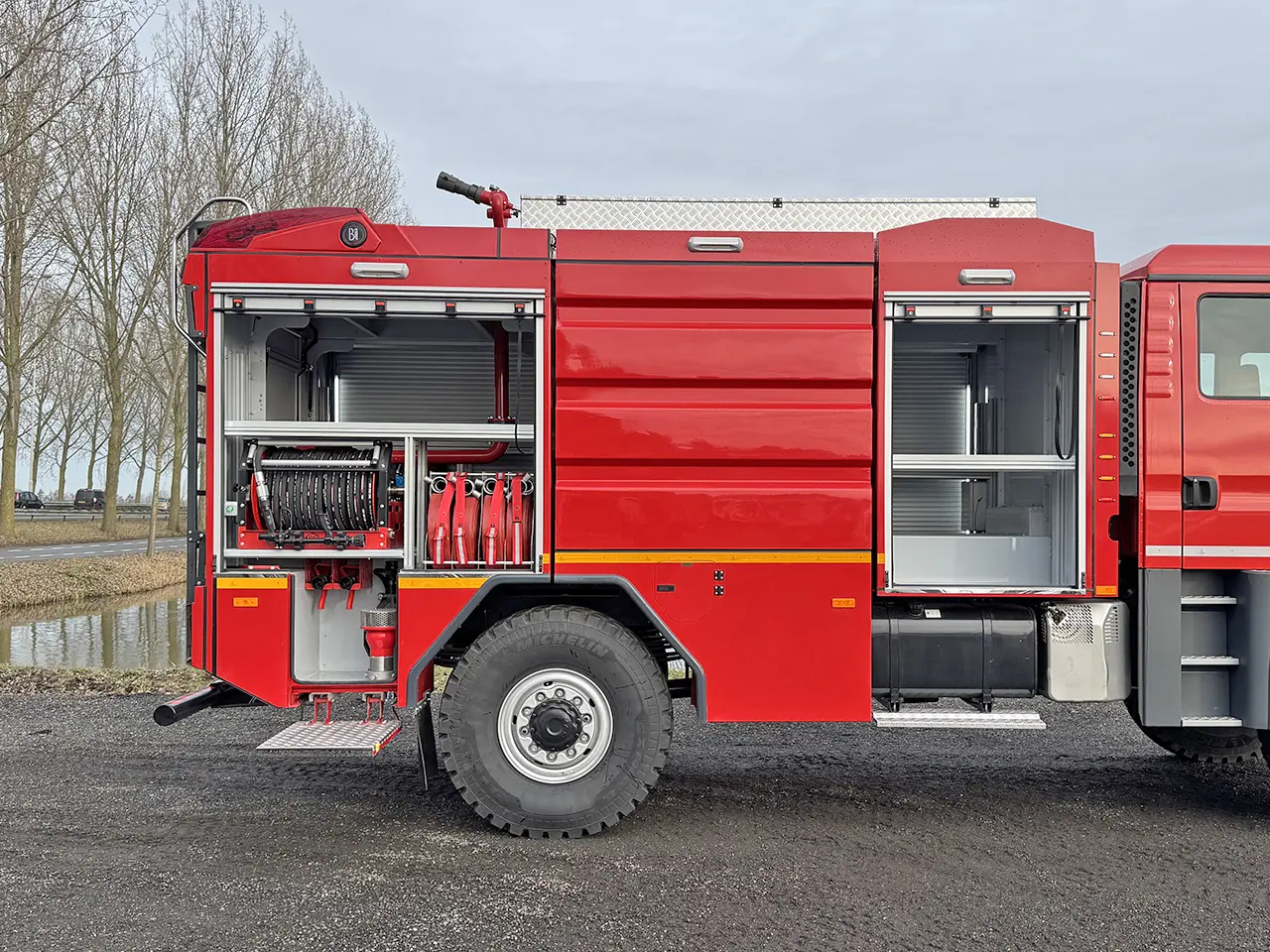

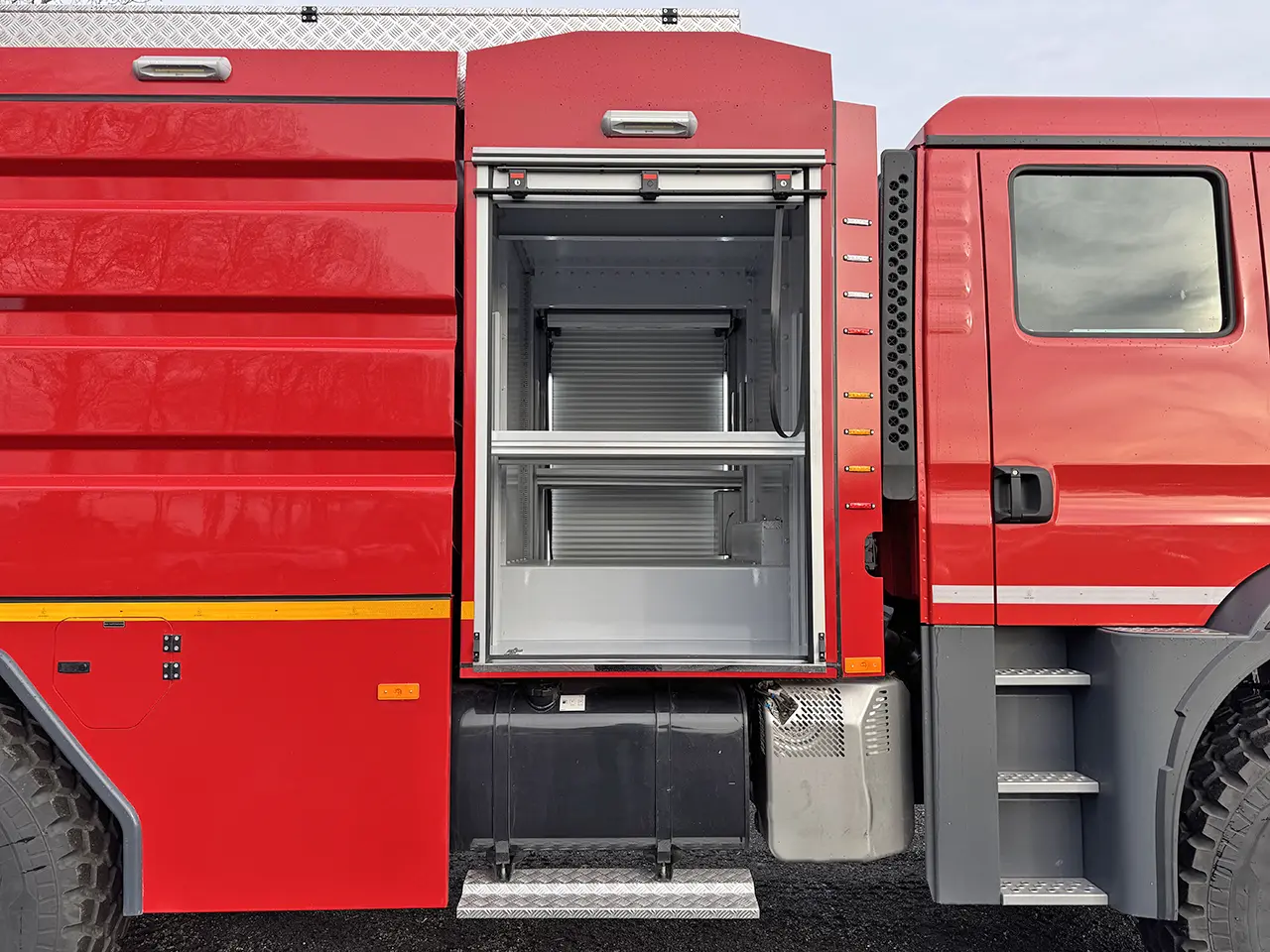

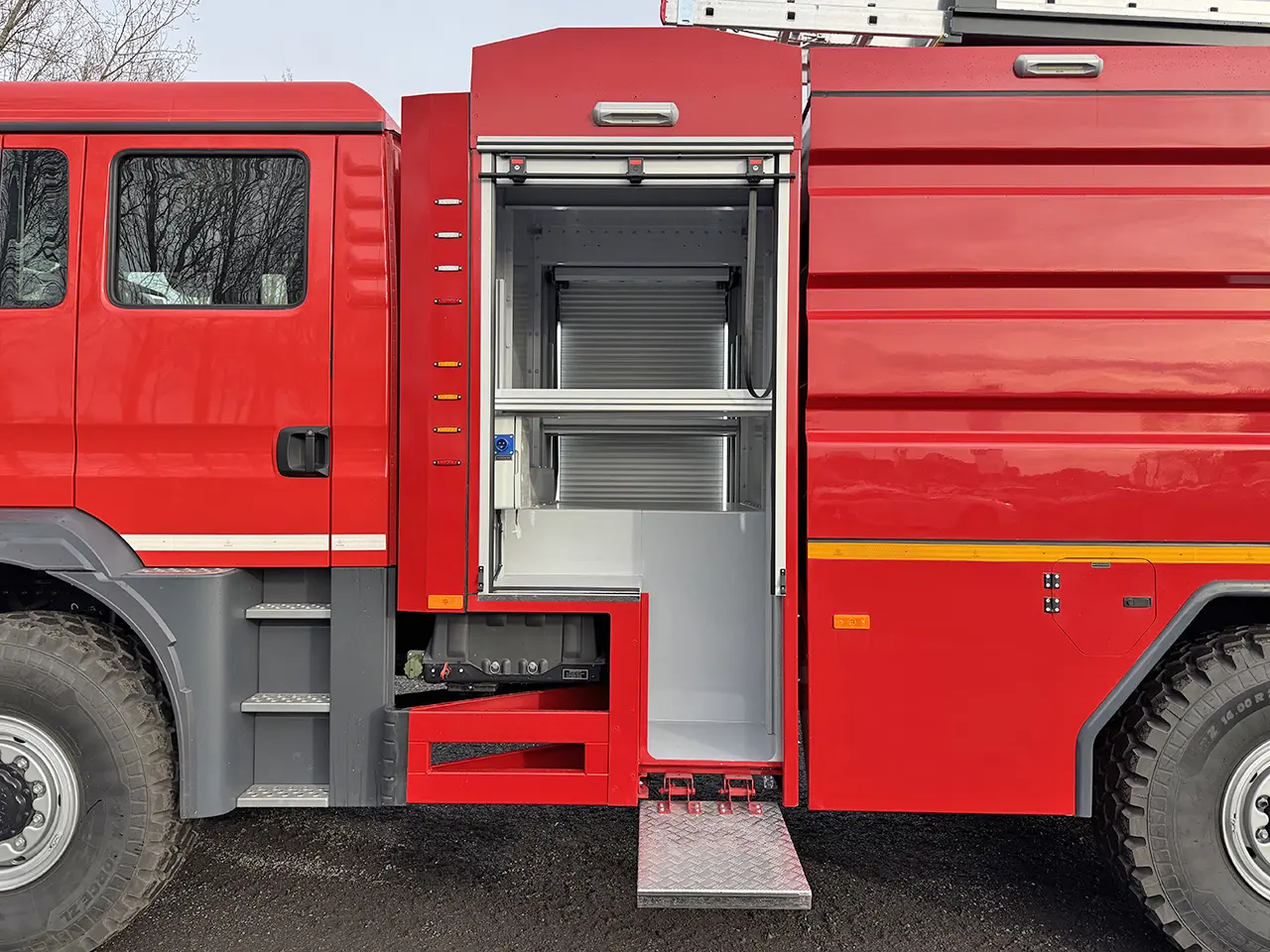

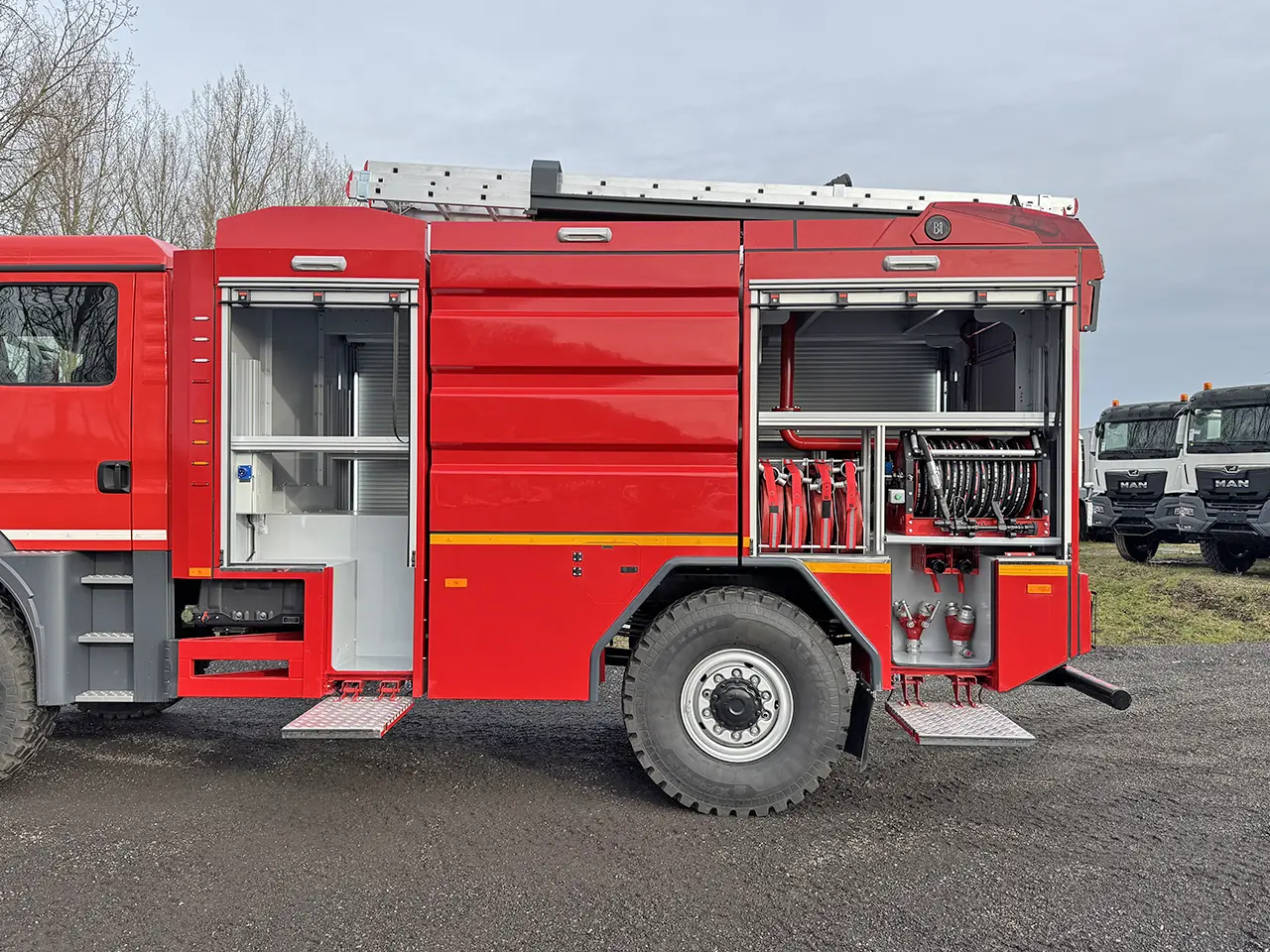

2+2+1 lockers layout

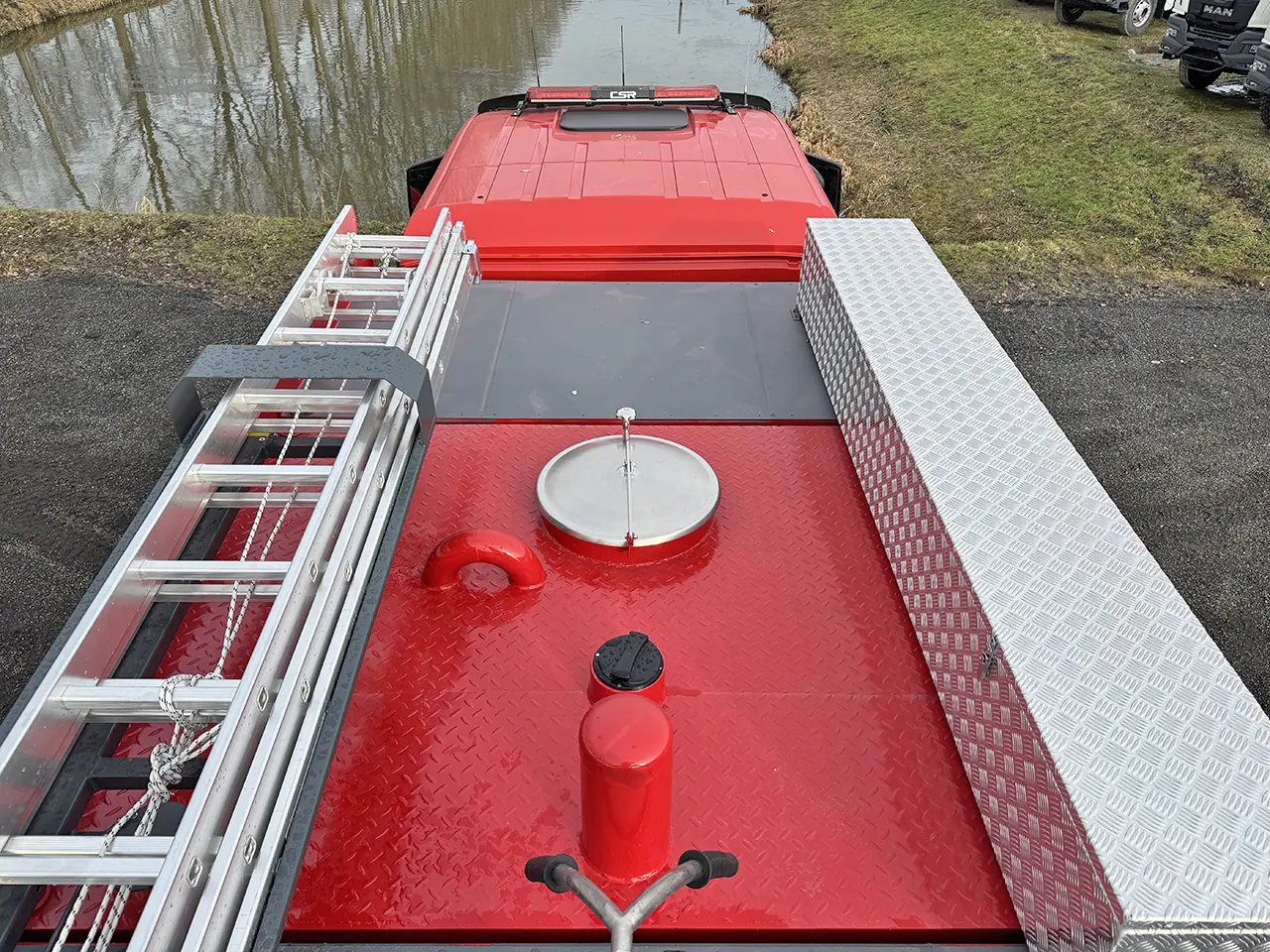

Tanks: water 5.000 ltr. + foam 500 ltr.

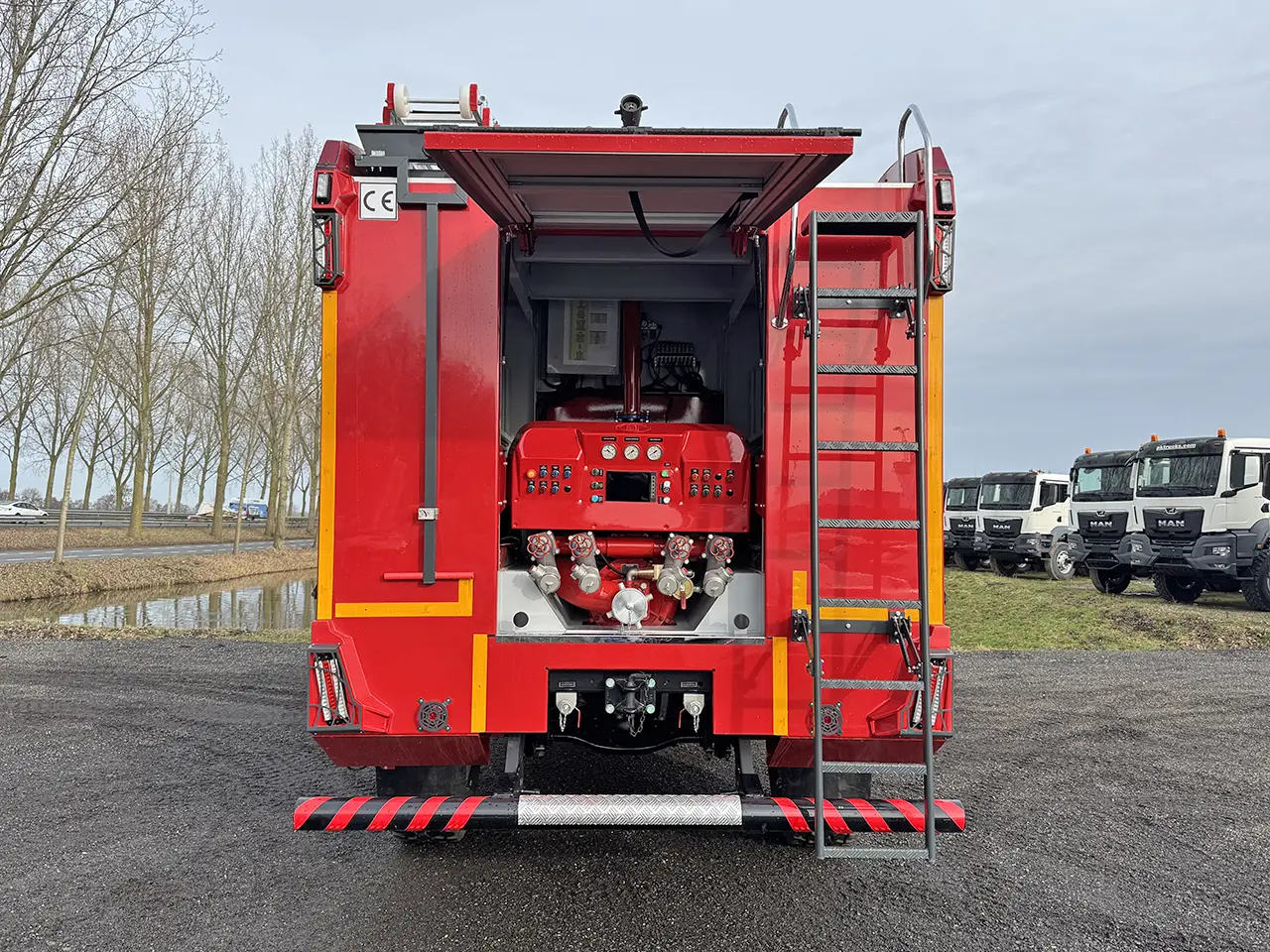

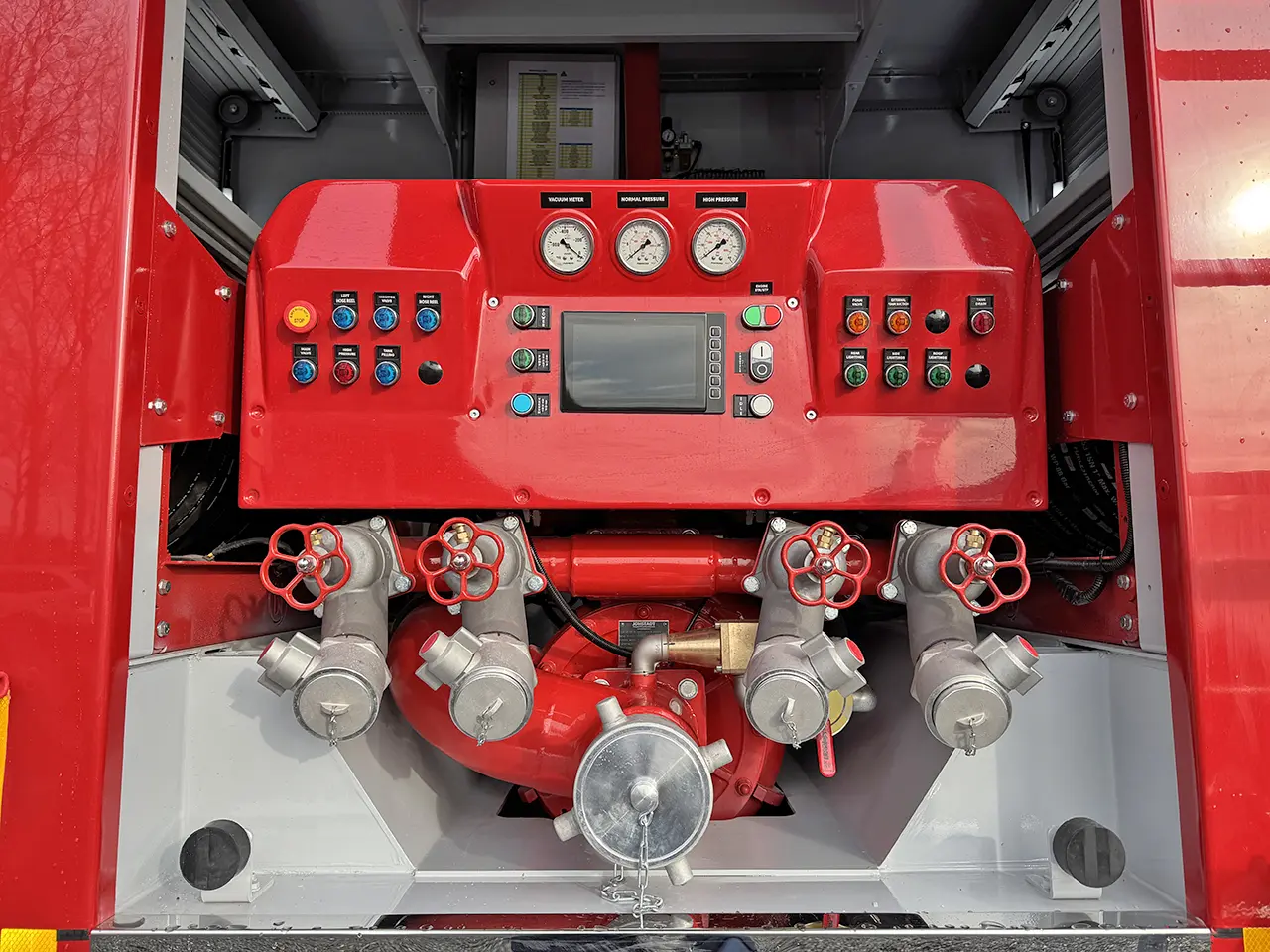

Pump: JOHSTADT TO 3001 located at the rear.
Fire Fighting Centrifugal Pump EN 1028 with normal (10/15 bar) and high pressure pump (40 bar) on a single shaft made of stainless steel, mechanical seal, bearing without oil, central drainage.

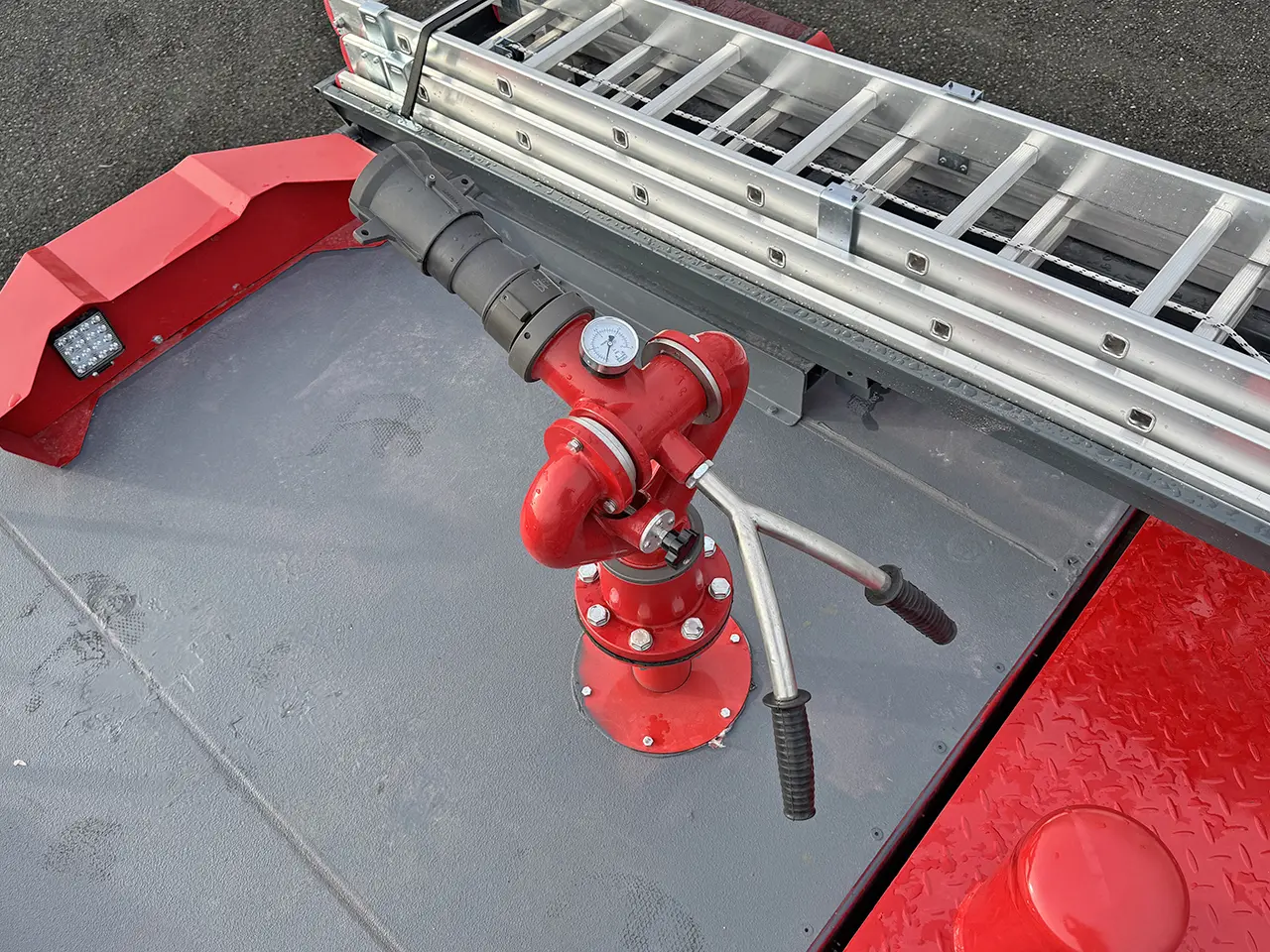

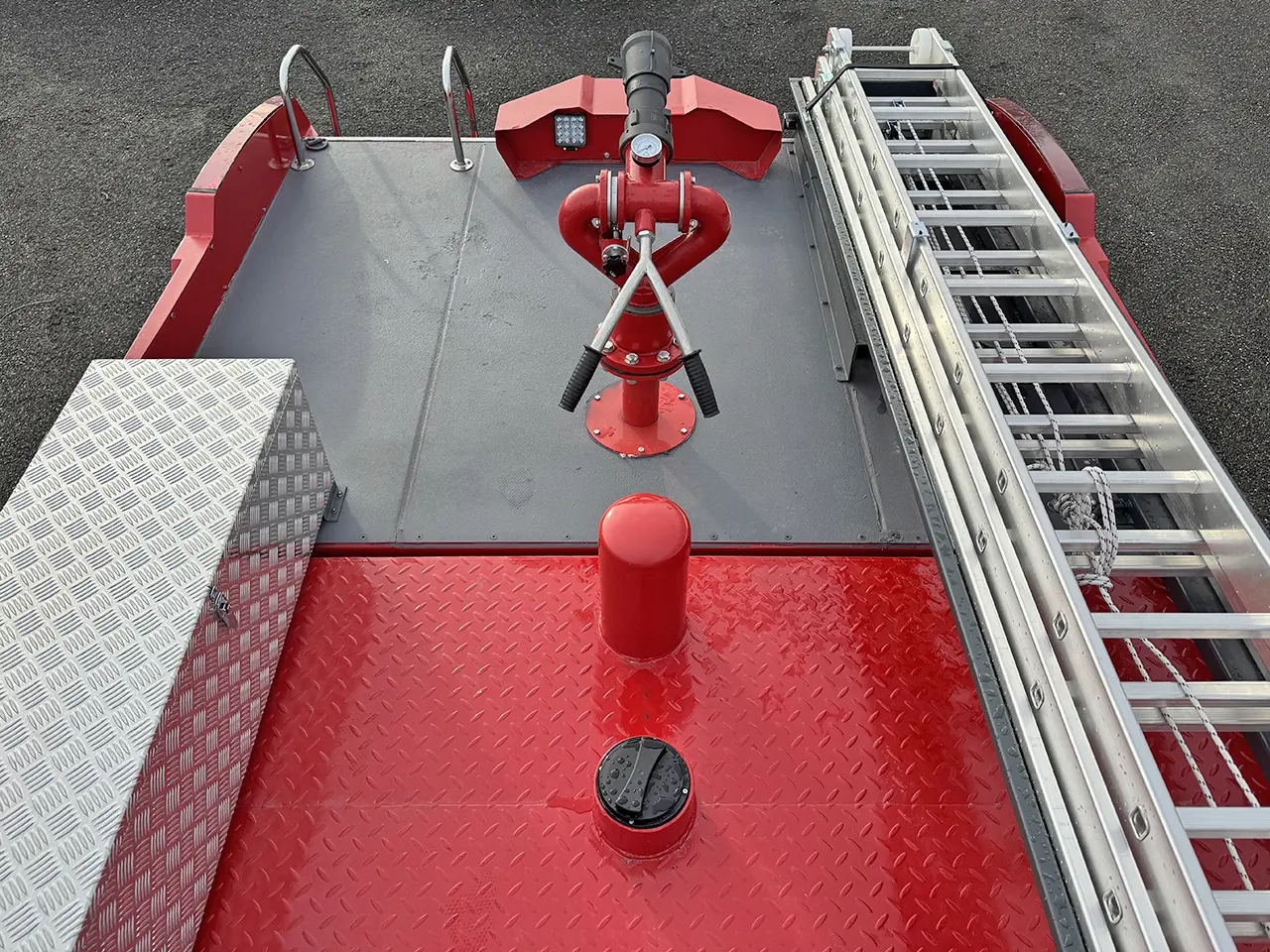

Water and foam monitor flow: 2400 l/min at 10 bar

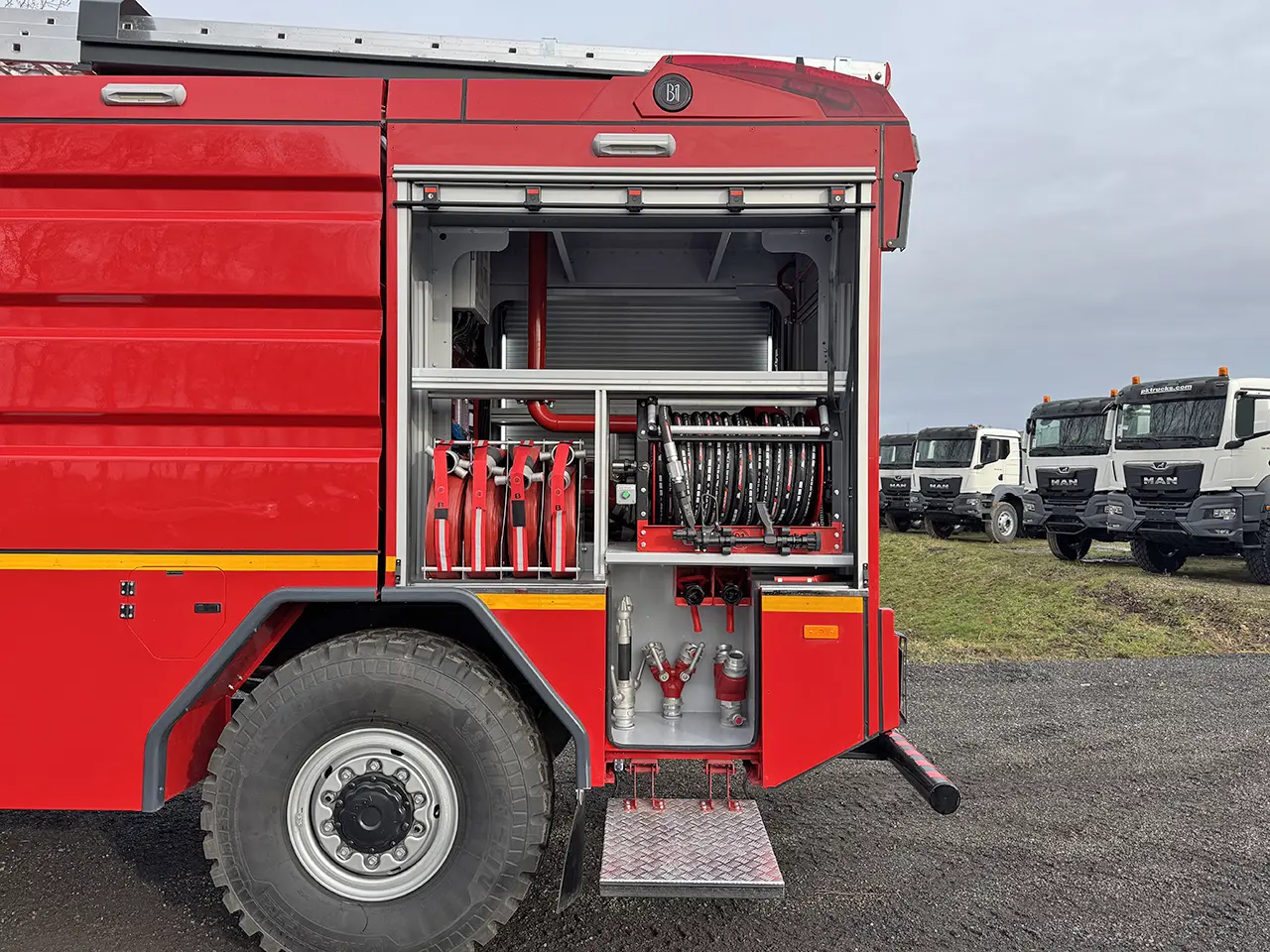

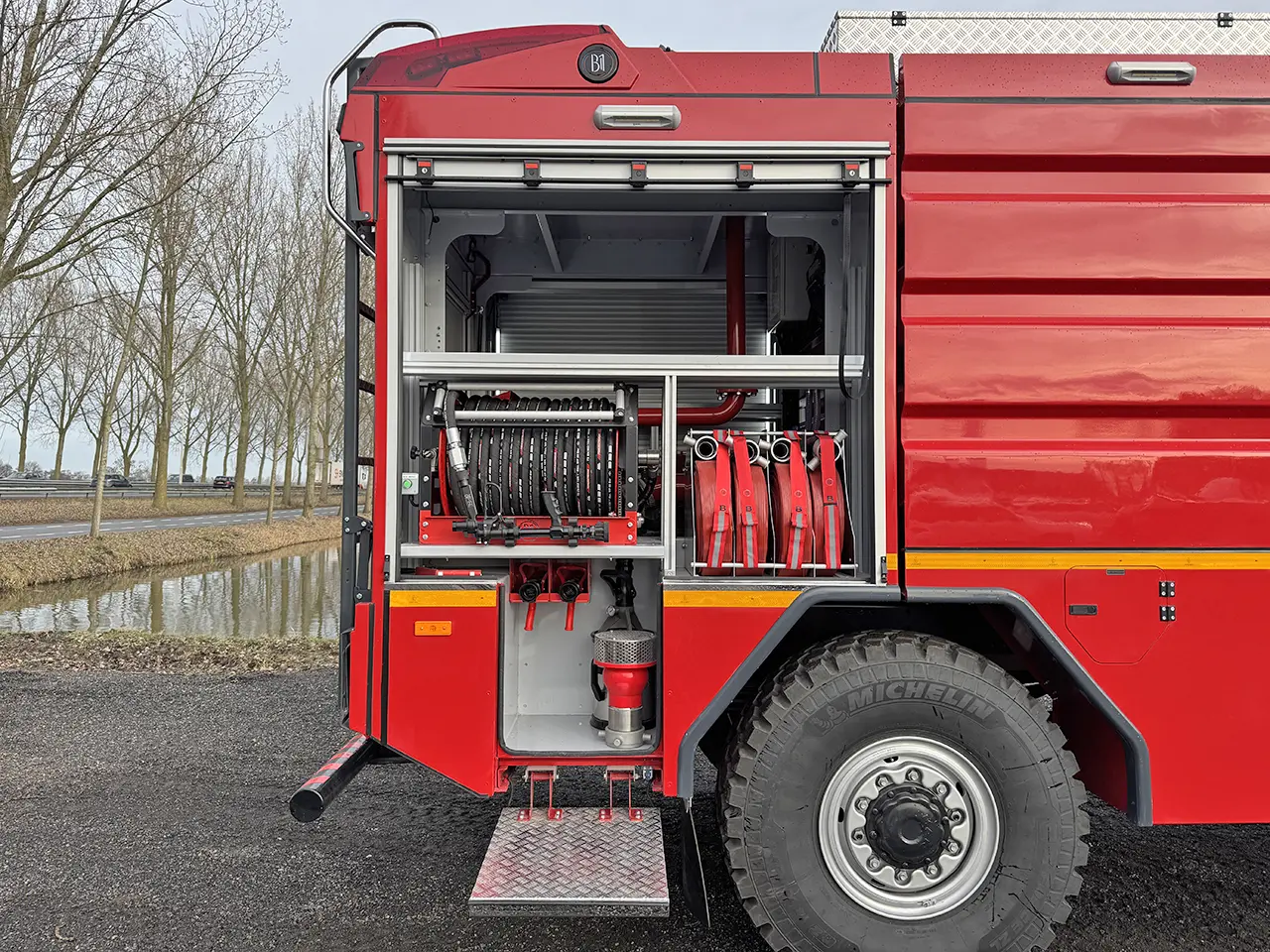

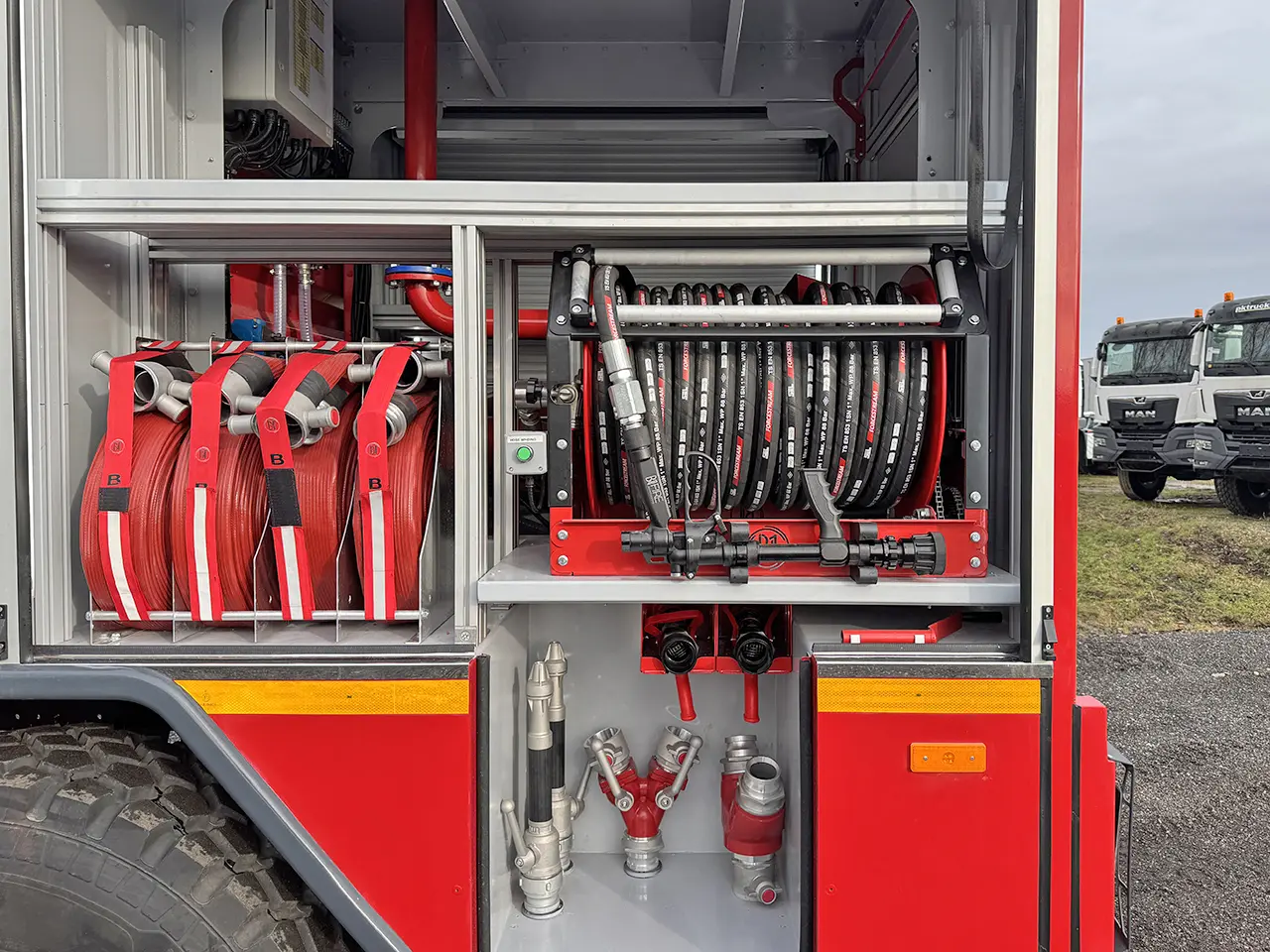

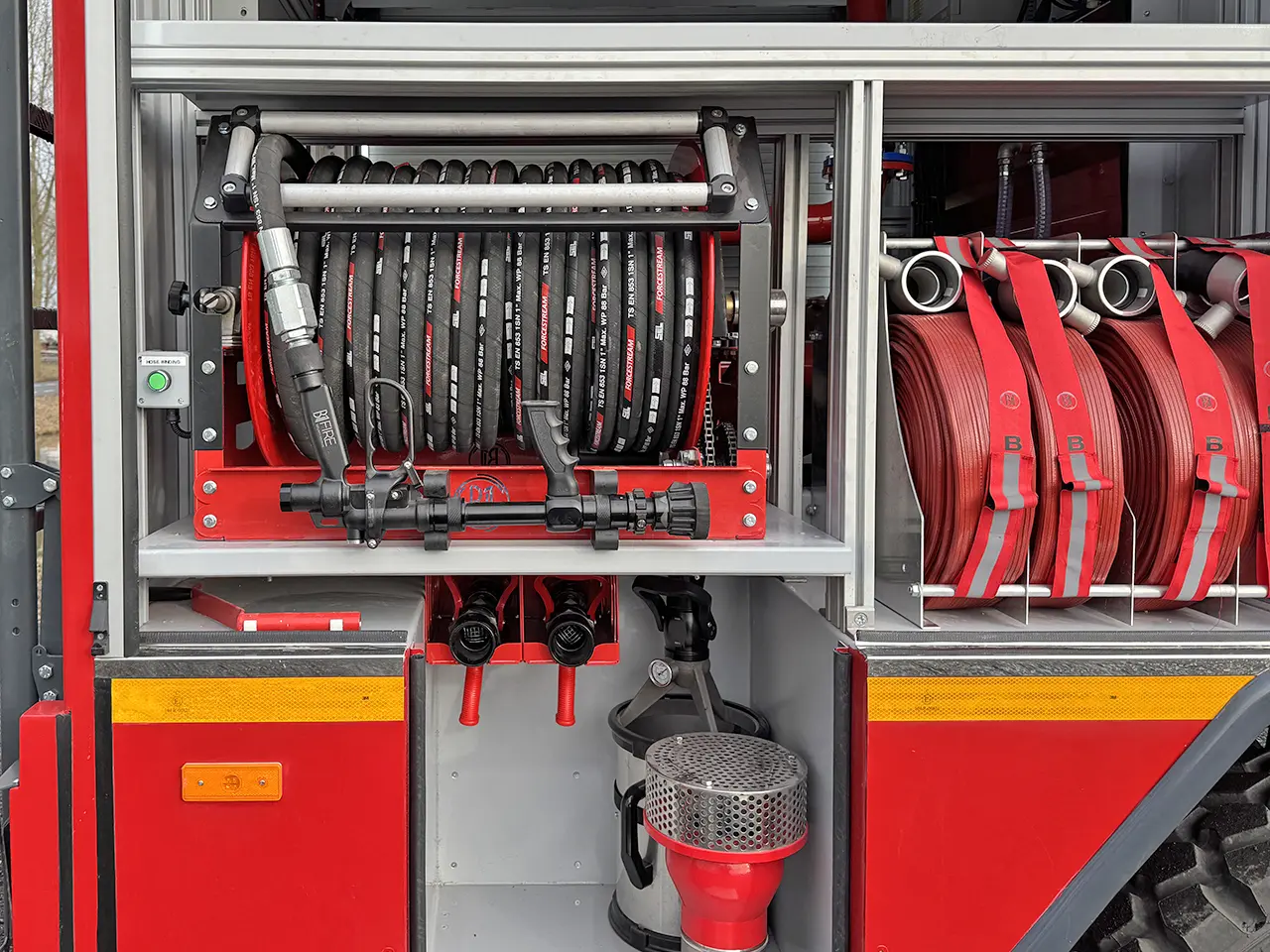

1 inch 50 mtr. high pressure hose reel with 50 mtr. rubber hose with 150 l/min nozzle – jet/spray nozzle

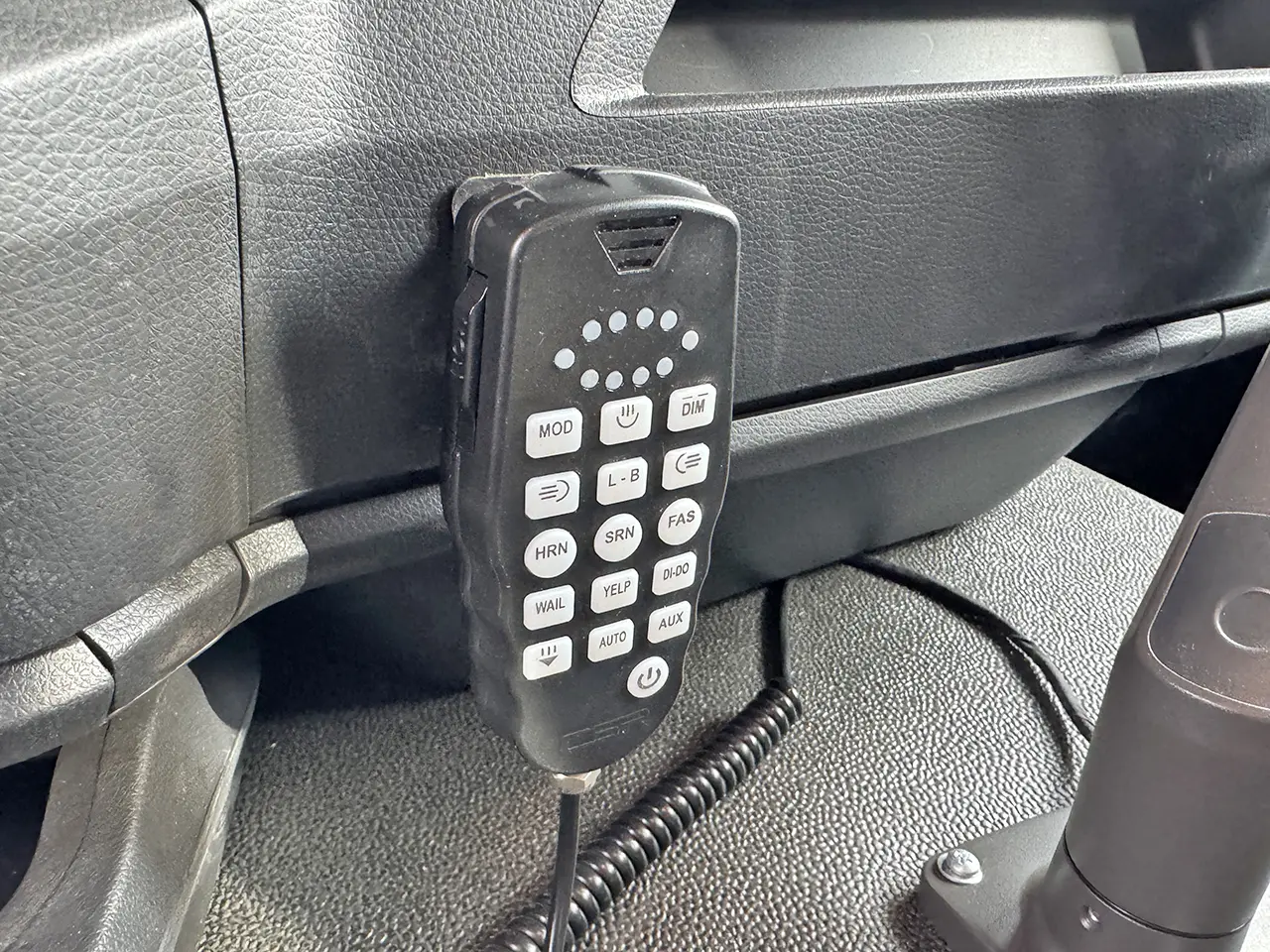

Red light bar type PA System installed on the top of the cabin, with 100w speaker, microphone, three sound siren with speaker.
Complete specification in pdf.
