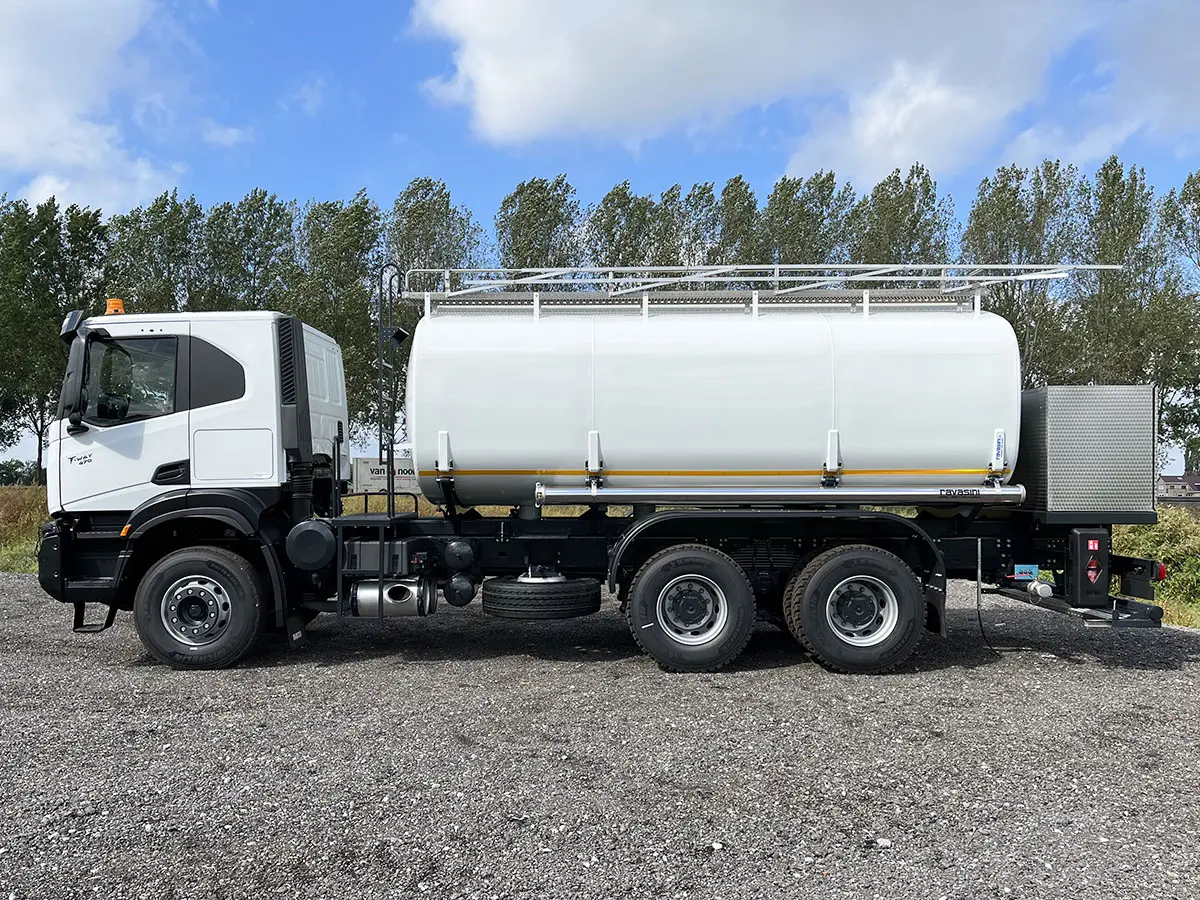

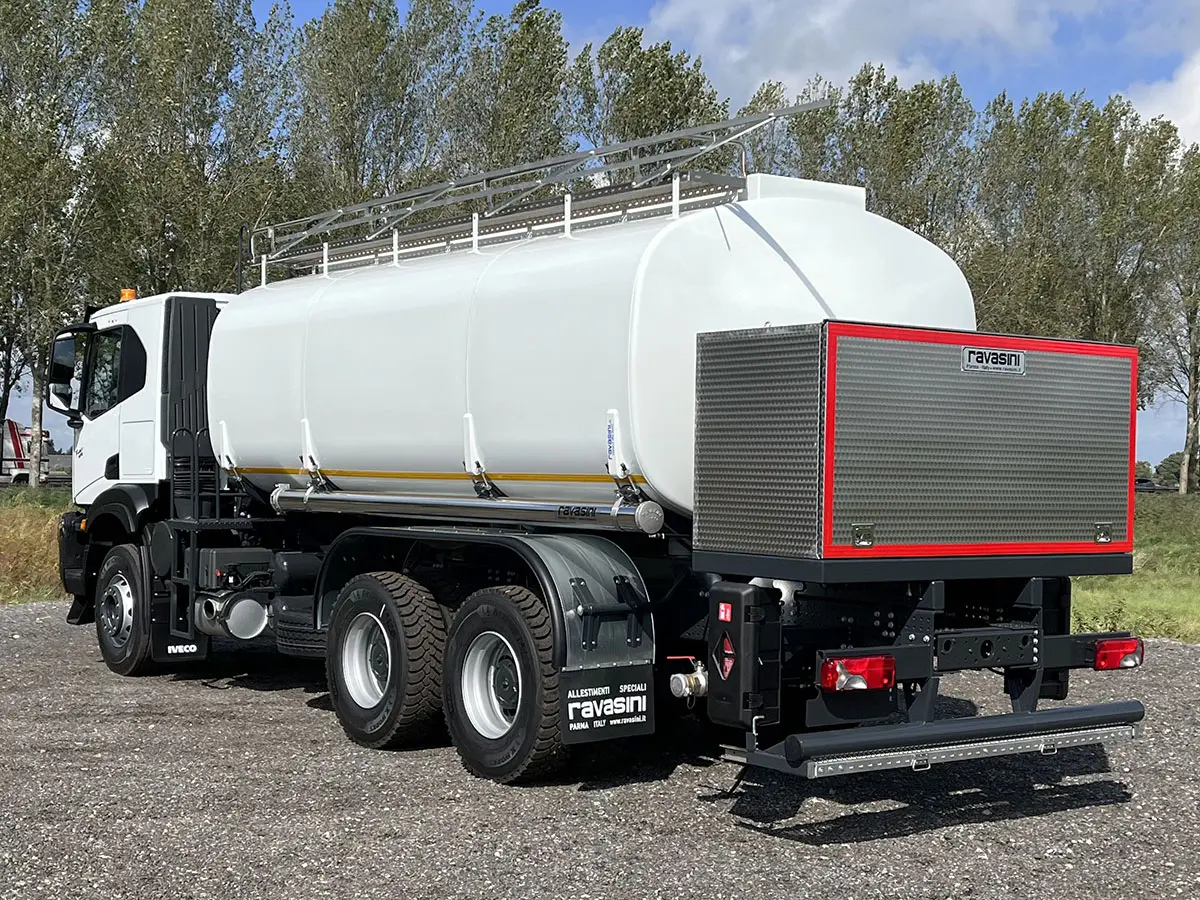

Iveco T-Way AT380T47H

Specifications

• ID

  IV4887
• Units in stock

  2
• Vehicle status

  New / Unused
• Construction

  Fuel Tank Truck
• Axle-configuration

  6x4
• Engine power

  475hp/349kW
• Emission code

  EURO-3
• Engine type

  F3HGE611V
• Transmission

  Manual
• Gearbox

  ZF16S2520TO
• PTO

  NH/4C
• Drive

  Left hand drive
• Suspension

  Spring
• Wheel base

  4.200 mm
• GVW

  33.500 kg
• Tyres

  315/80R22.5
• Cabin

  Sleeper
• Production year

  2023
• Model year

  2023
• Construction brand

  Ravasini
• Construction volume

  20000 Ltr.
• External dimensions

  960x250x360cm
• Net unit price EXW

  € 157.500
• Remarks

  Fuel tank: 290 ltr.
  Air conditioning

  Equipped with Ravasini fueltank 20.000 ltr.
  Three compartments (6.800l+6.500l+6.800l+expansion volume)
  Manhole with cover diam. 500 complete with inlet and breathing valve and containing basin in case of liquid pouring out from the manhole.
  Pumping unit placed in a suitable stainless steel box, positioned on the rear side of the vehicle.
  Positive displacement pump 500 l/1 min.
  Liter counter with a flow rate of 550 l/1, complete with filter, degasser, aircheck valve, with positive displacement head having partial measuring at 5 resettable digits, and total measuring with 7 non resettable digits.
  Manual winding hose reel with 20 m of 1½ hose and delivery gun.

  Complete specification in PDF.
