Iveco T-Way AD410T47WH AT Fassi F1750R.2.8 with JIB

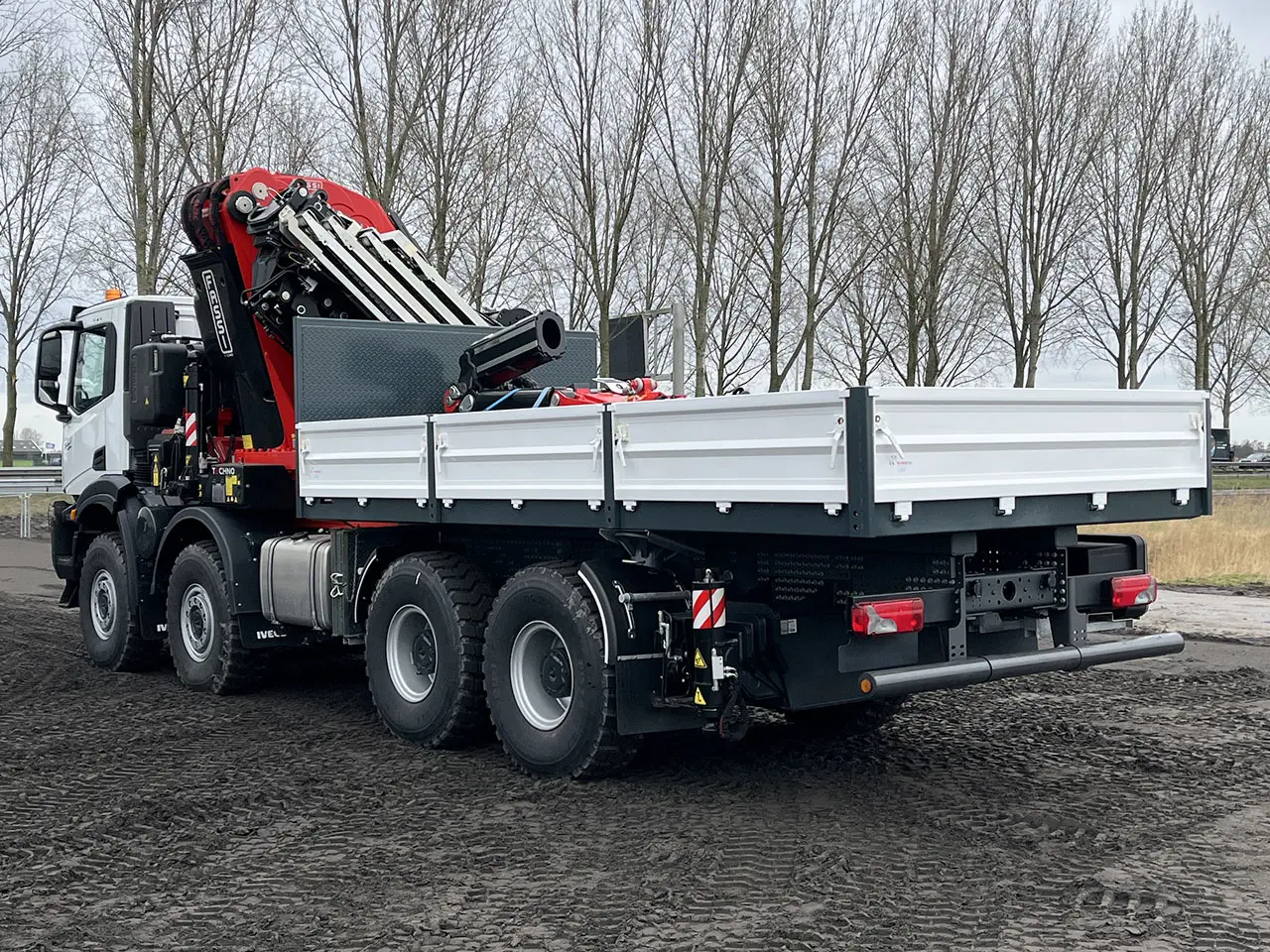

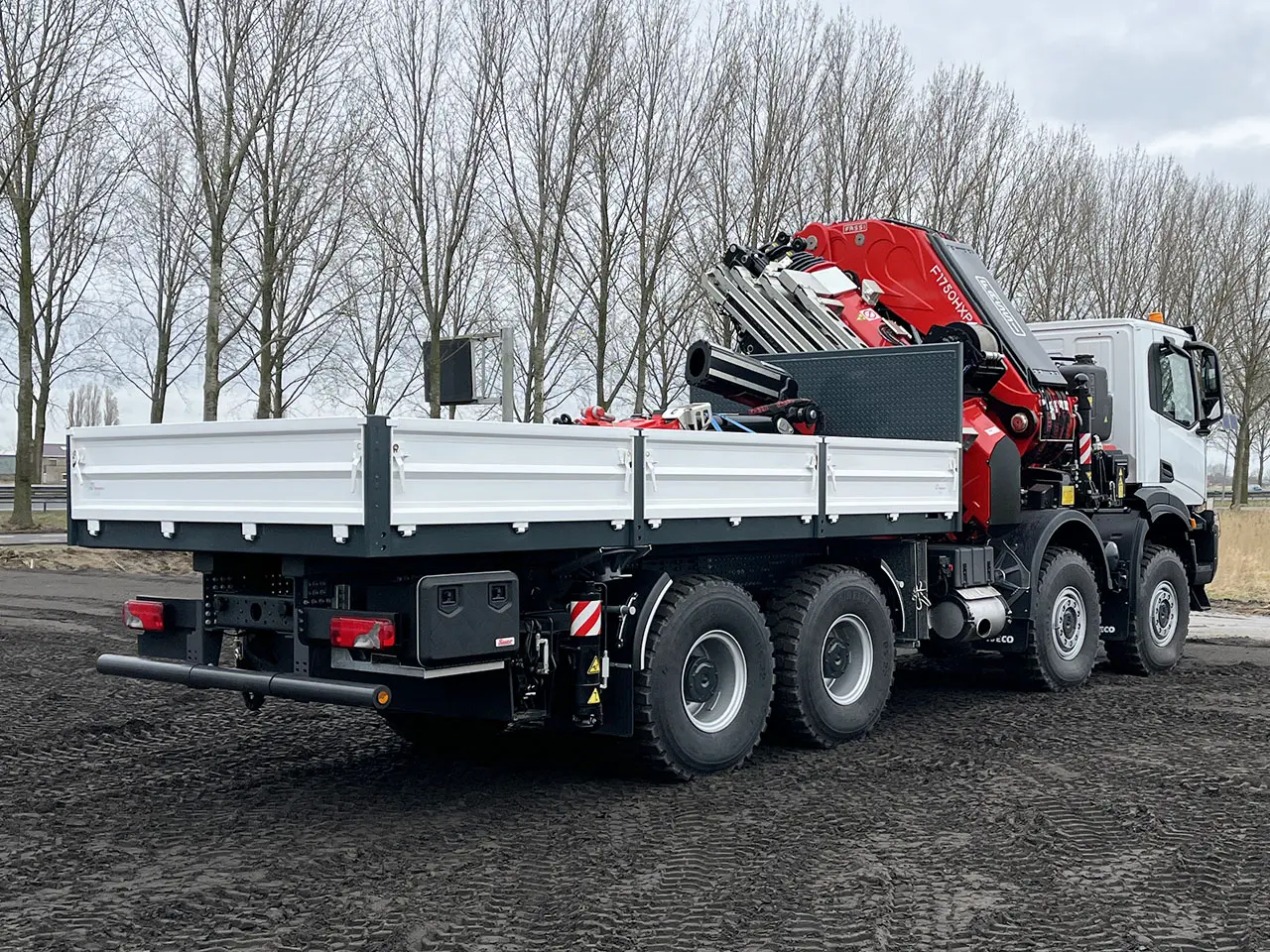

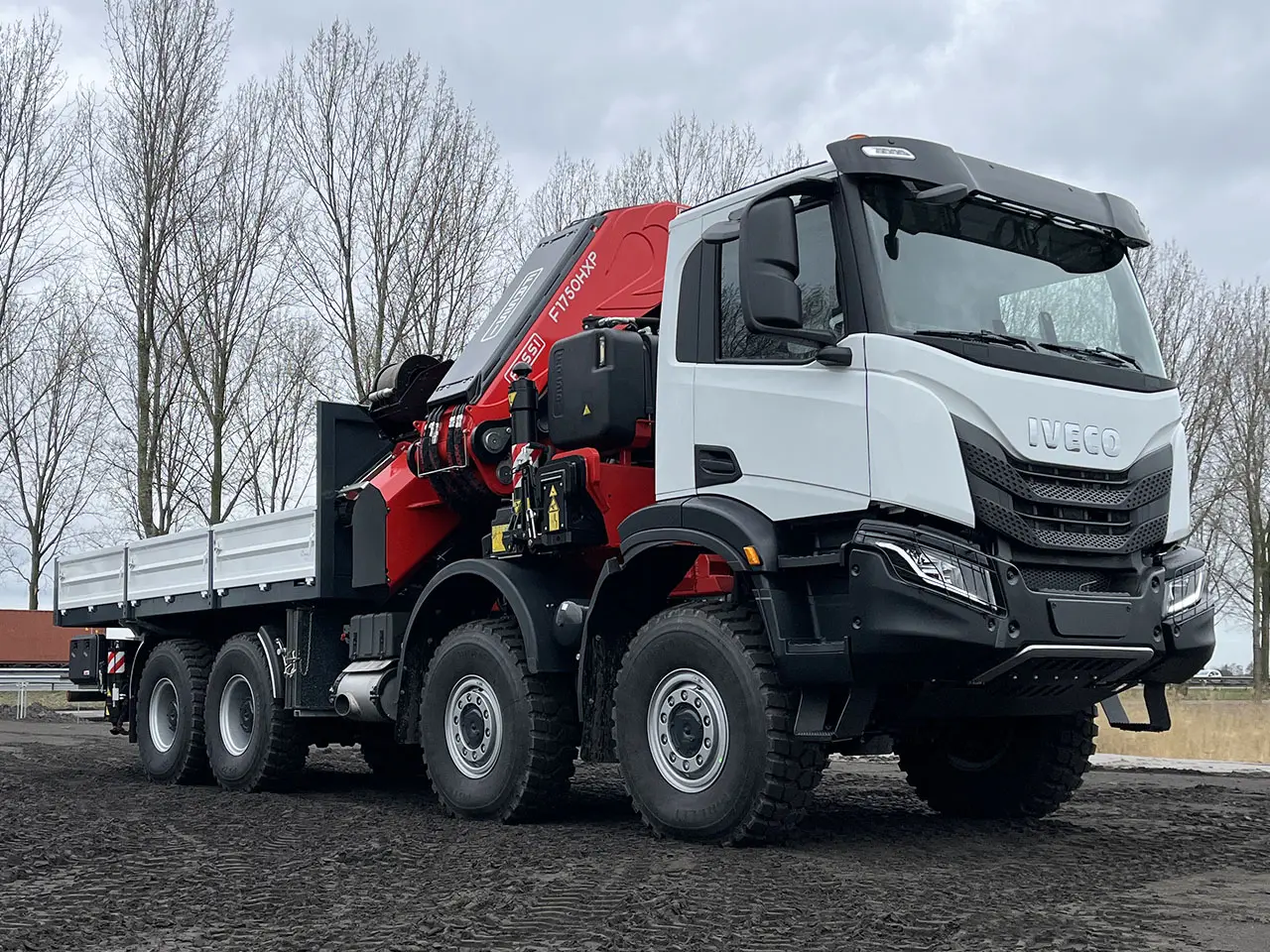

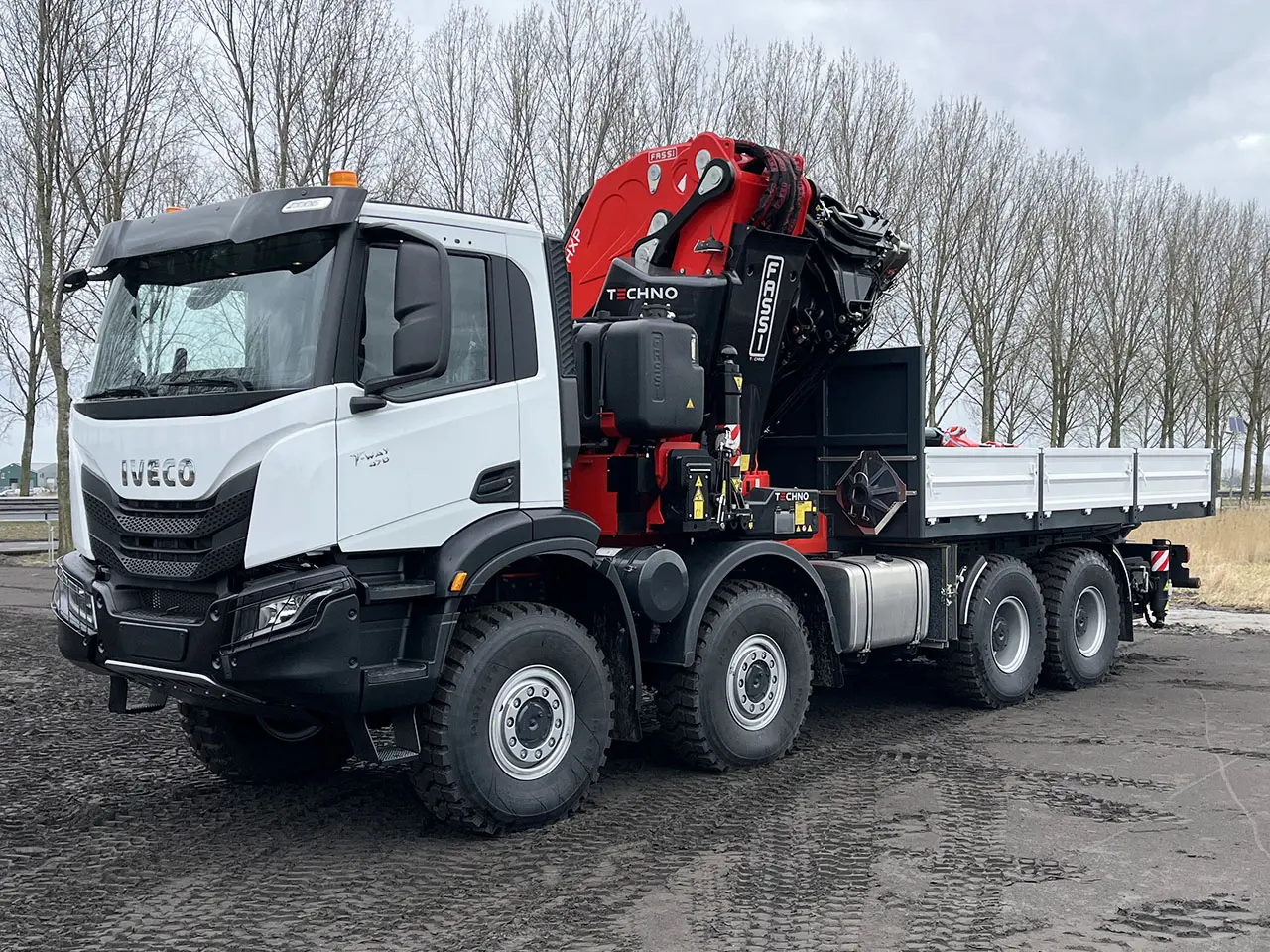

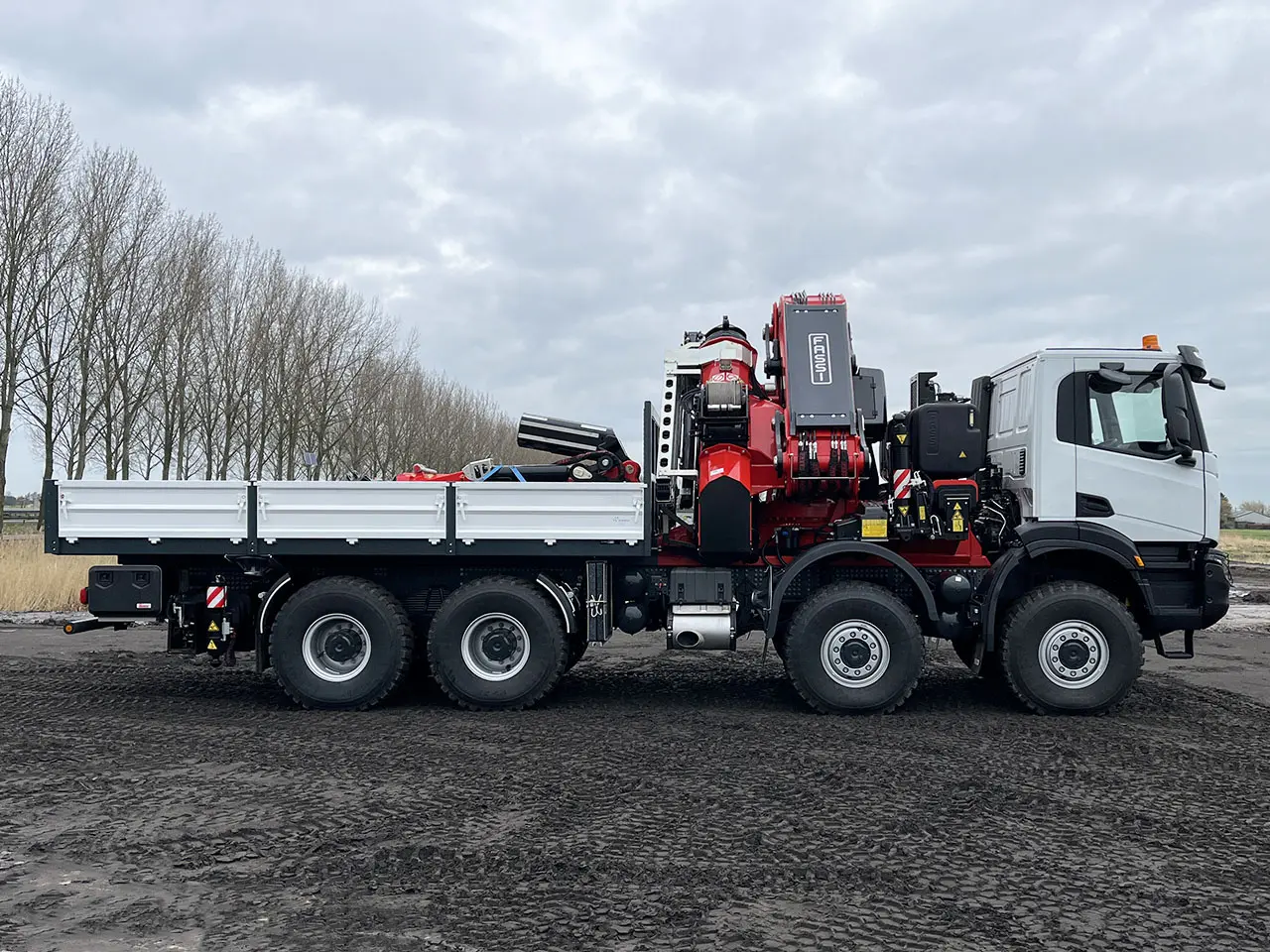

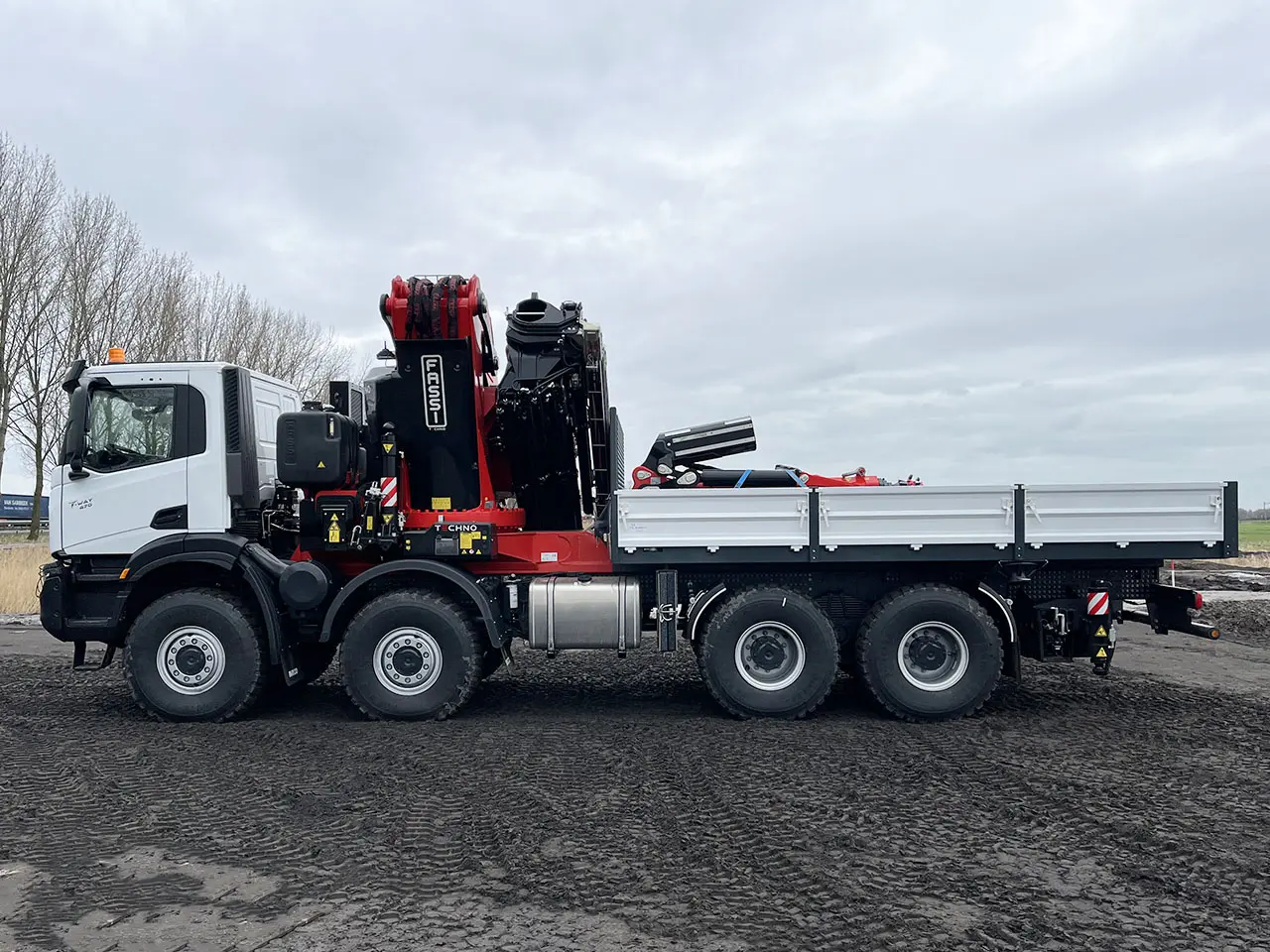

Iveco T-Way AD410T47WH AT Fassi F1750R.2.8 with JIB 8x8 Crane Truck

Total units (1)

Quotation request

Specifications

• ID

  IV4895
• Vehicle status

  New / Unused
• Construction

  Crane Truck
• Axle-configuration

  8x8
• Engine power

  475hp/349kW
• Emission code

  EURO-3
• Engine type

  F3HGE611
• Transmission

  Automatic
• Gearbox

  ZF16TX2240TO
• Drive

  Left hand drive
• Suspension

  Spring
• Wheel base

  5.020 mm
• GVW

  40.000 kg

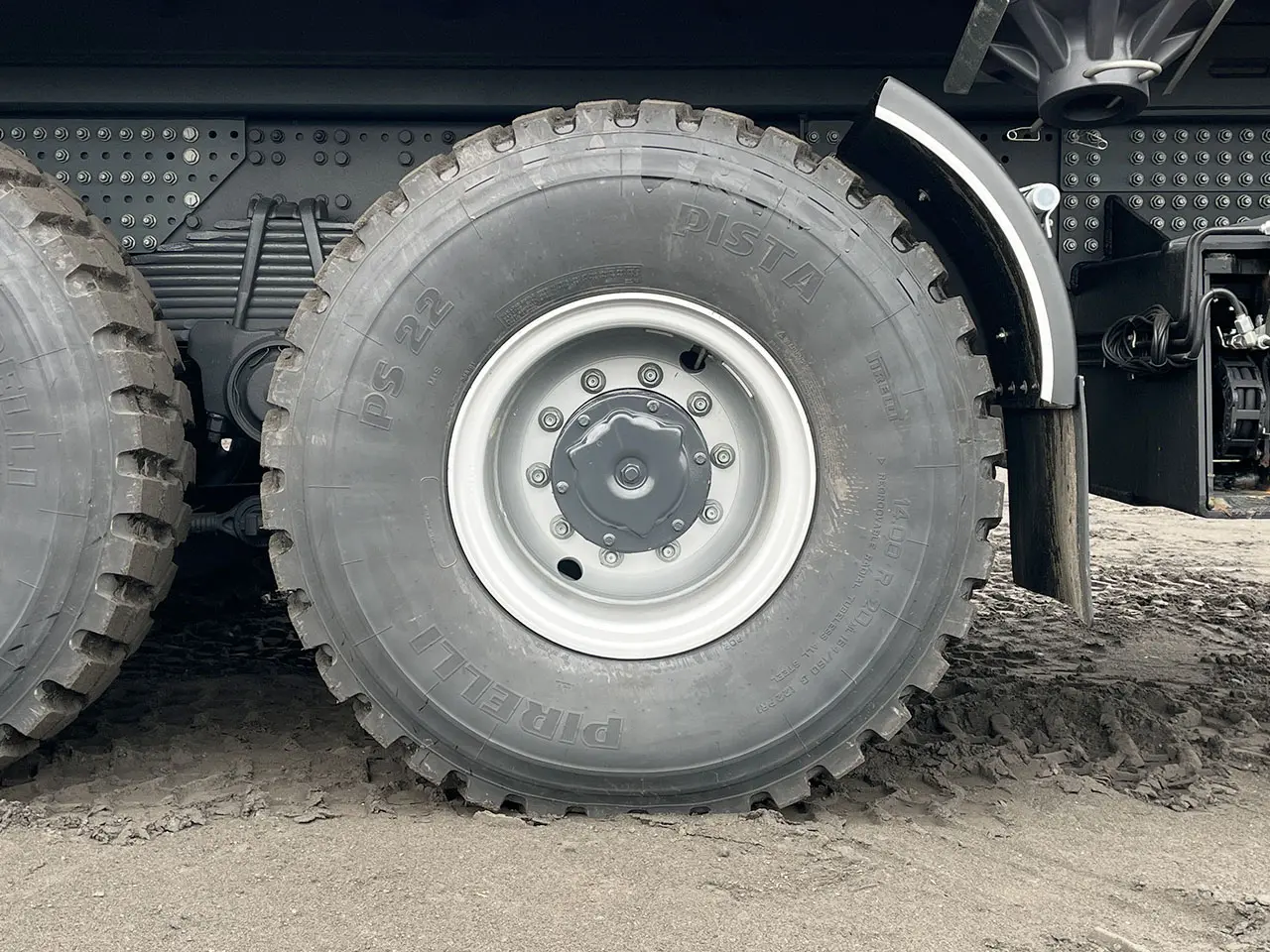

• Tyres

  14.00R20

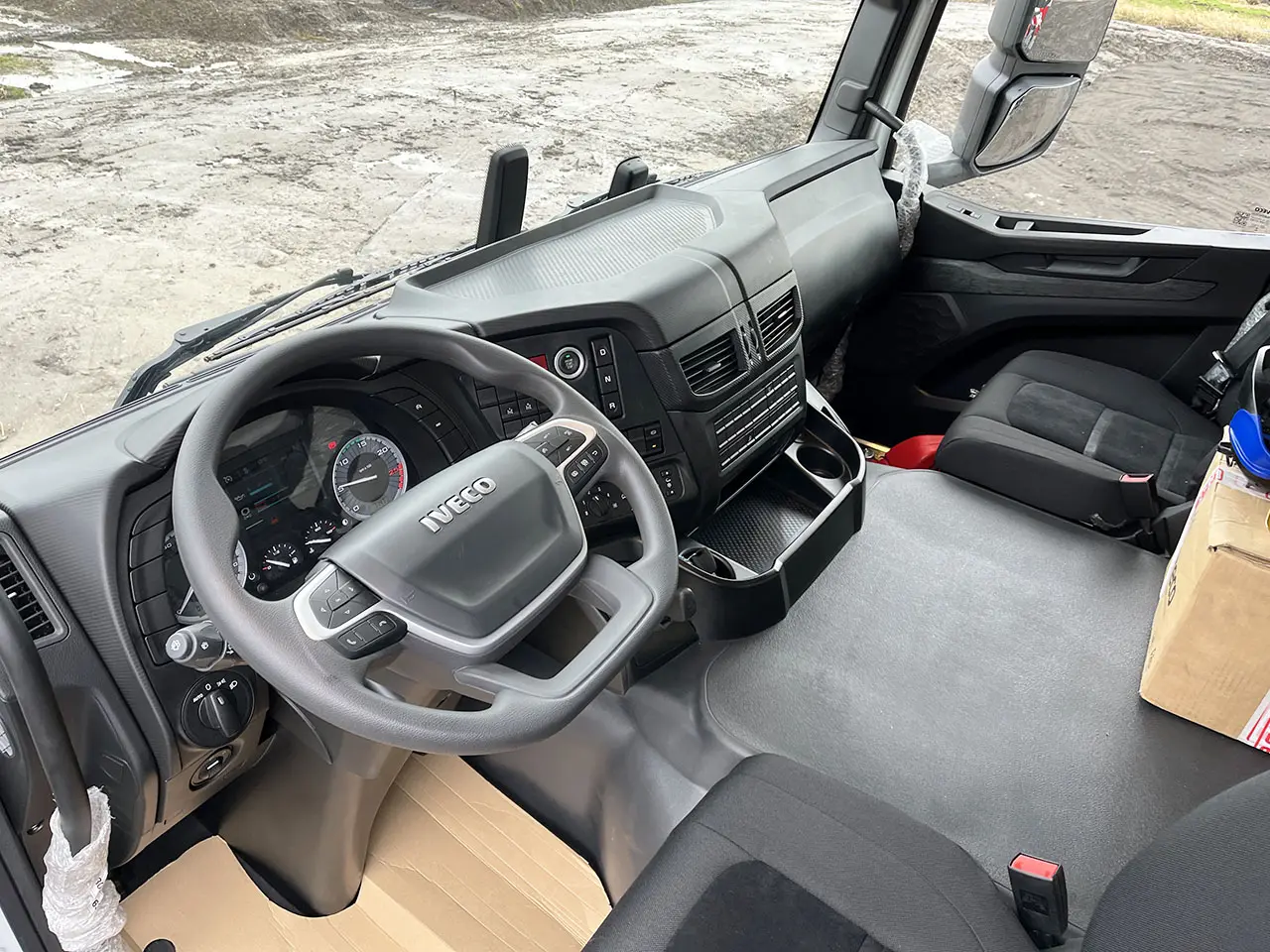

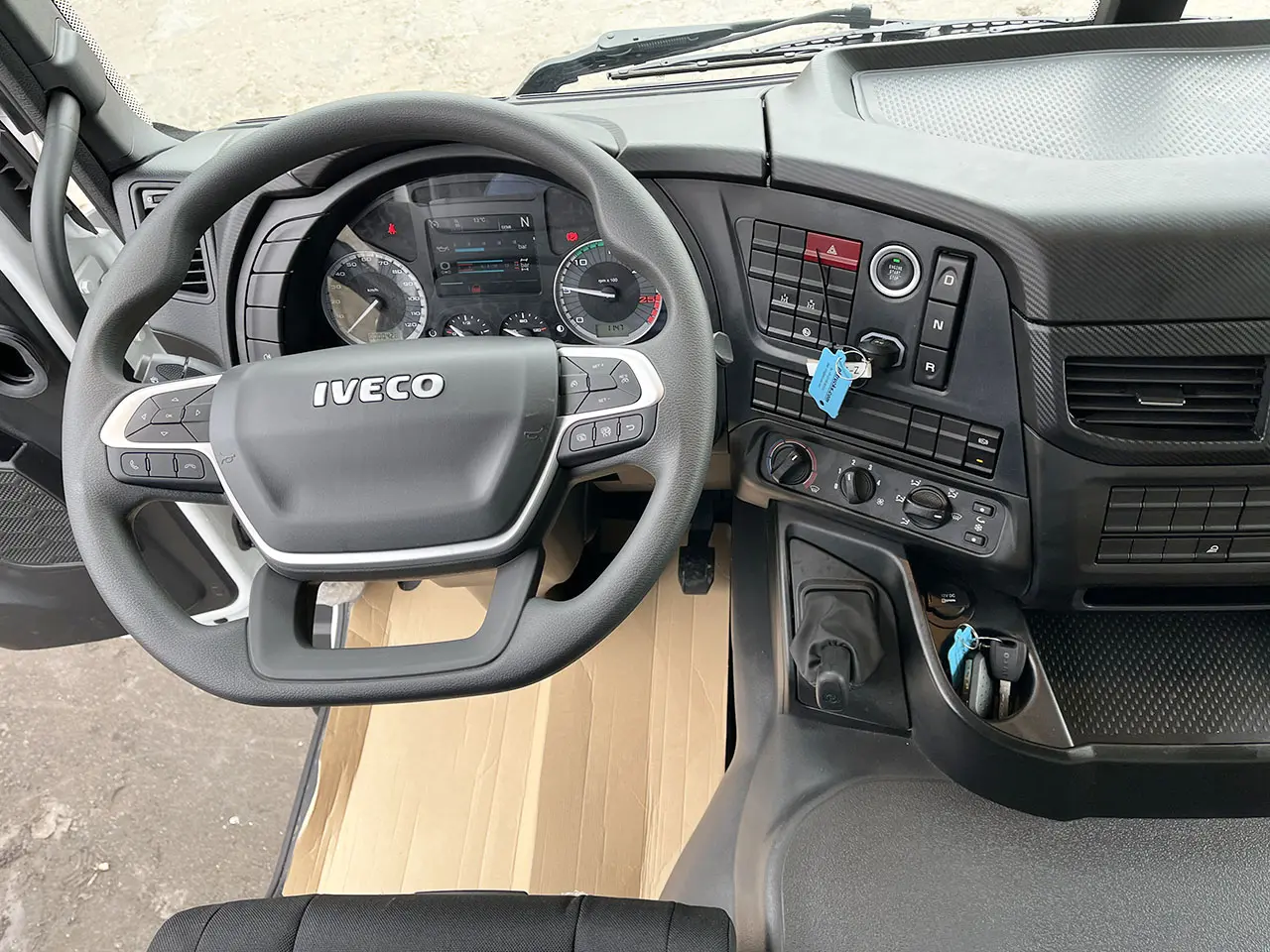

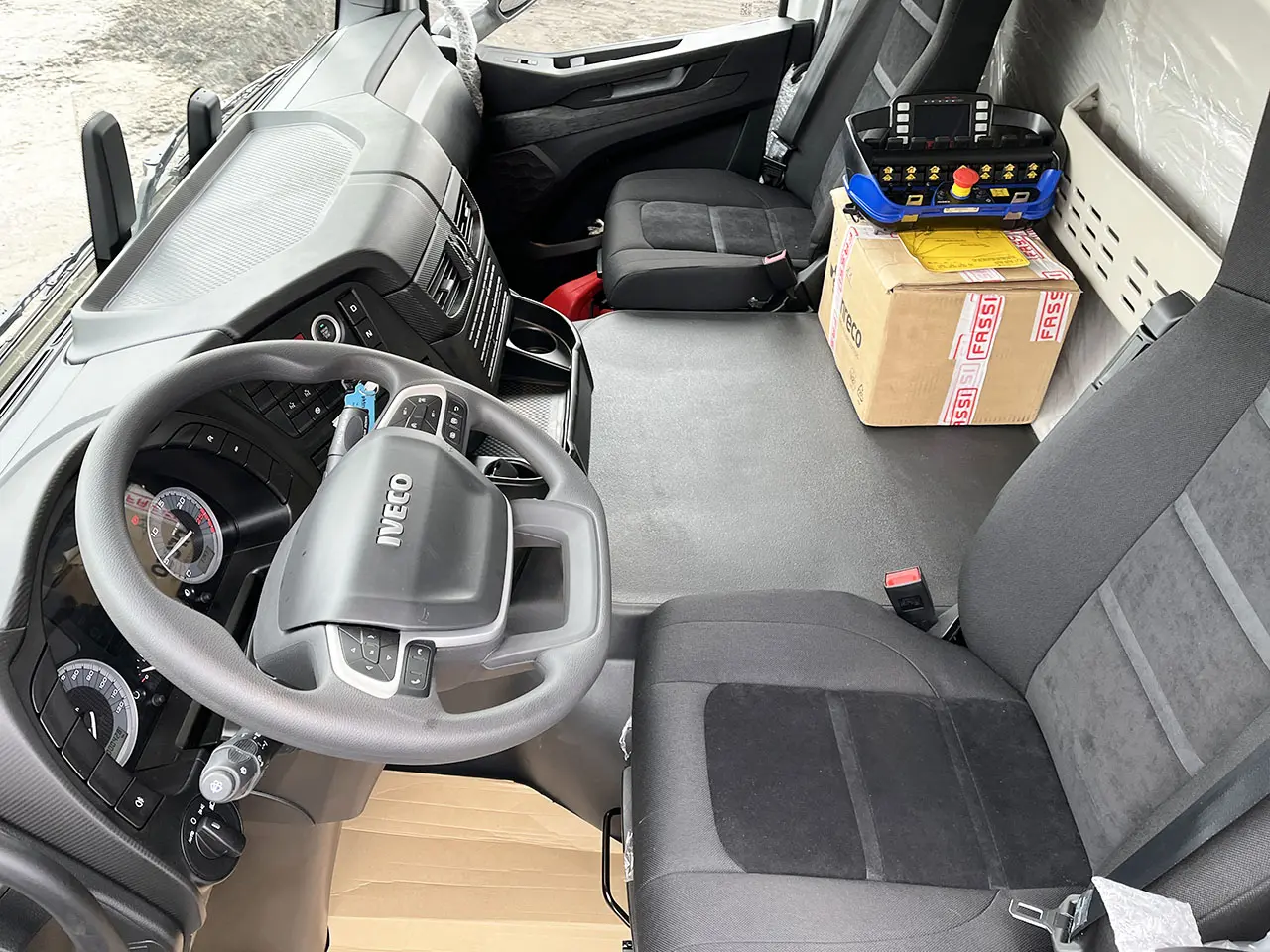

• Cabin

  Day
• Production year

  2023
• Model year

  2024
• Construction brand

  Fassi
• External dimensions

  1100x250x410cm
• Remarks

  Fuel tank: 400 ltr.
  Air conditioning

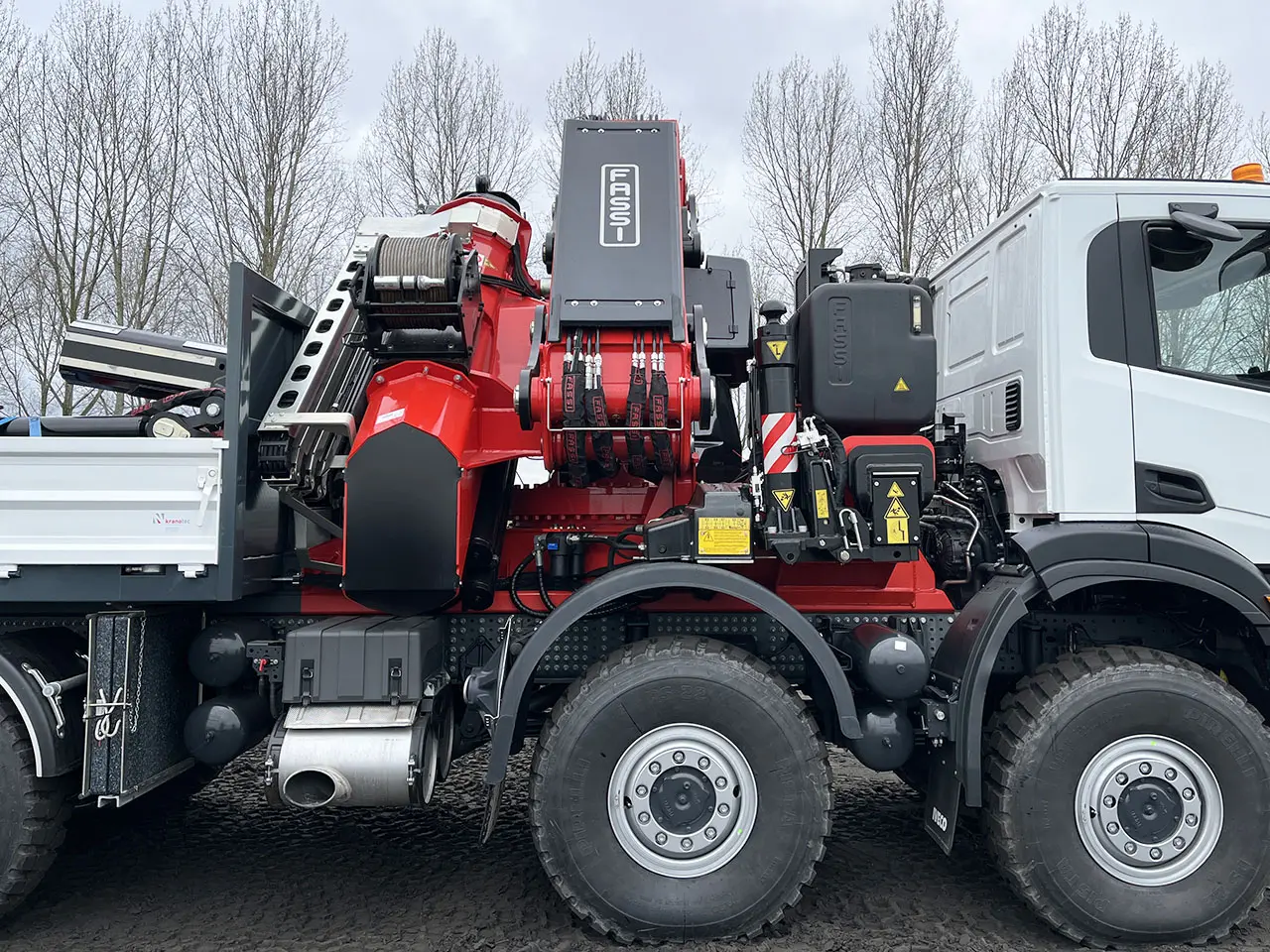

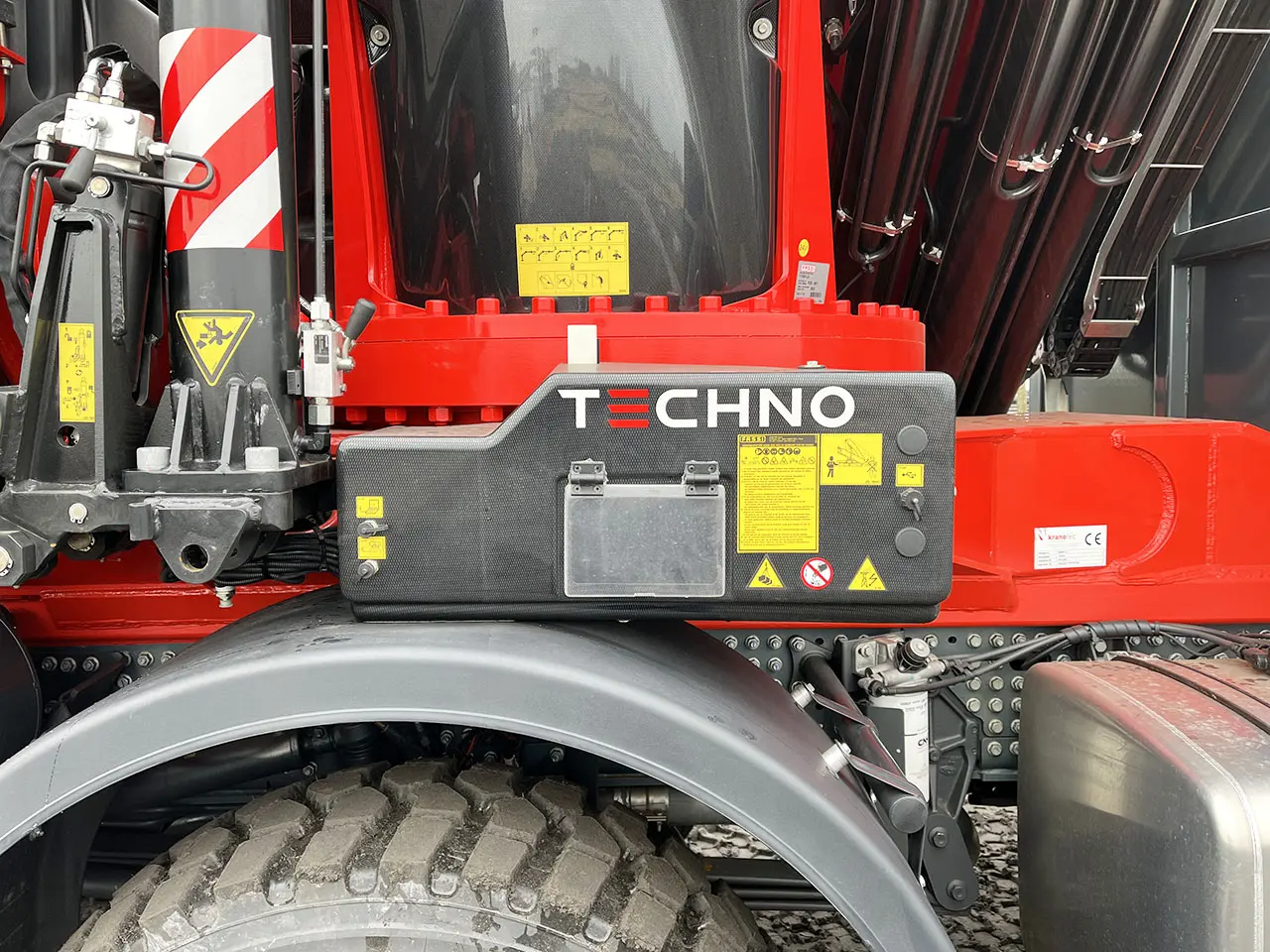

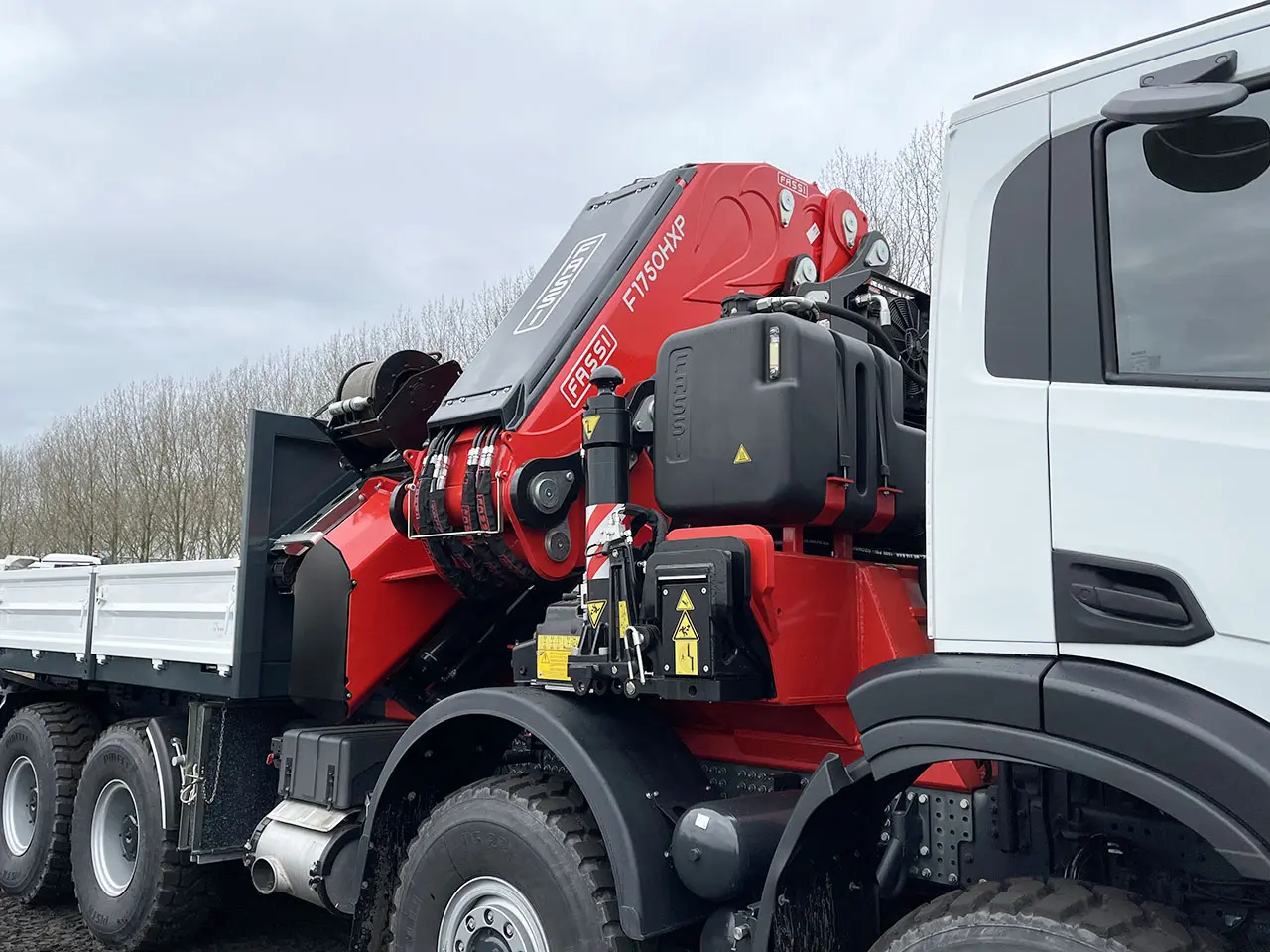

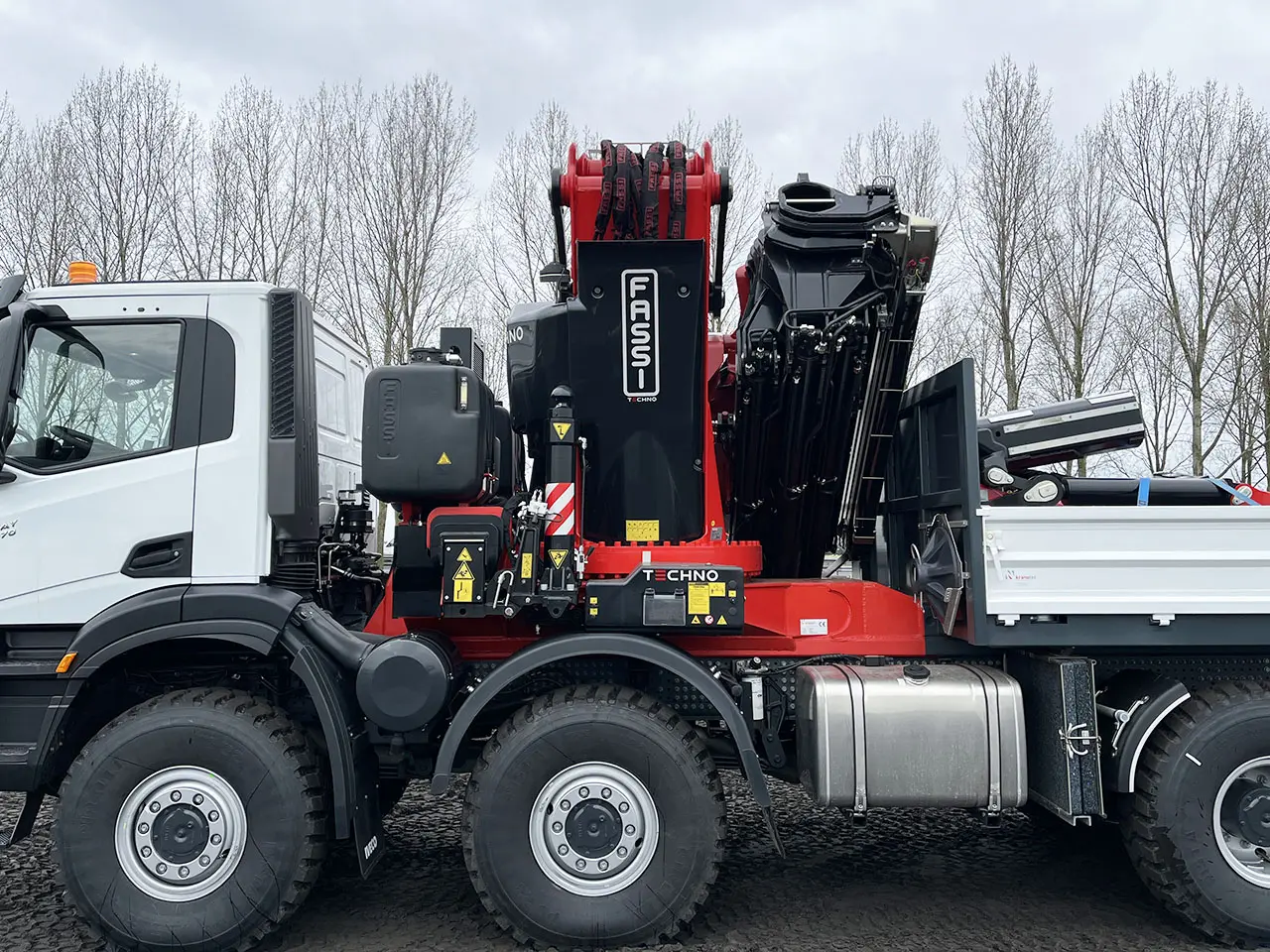

  Equipped with Fassi crane:
  Type: F1750R.2.8 HXP-Techno L826 JDP
  Hydraulic extension type L826
  JDP Jib dual power device activation
  Max. lifting moment 132 tm / 1295 kNm
  Max. hydraulic outreach 31.80 m

  Lifting capacity:
  30.000 kg / 4.05 m
  21.460 kg / 5.65 m
  16.225 kg / 7.40 m
  12.720 kg / 9.25 m
  10.285 kg / 11.25 m
  8.550 kg / 13.25 m
  7.080 kg / 15.35 m
  6.100 kg / 17.35 m
  5.380 kg / 19.35 m

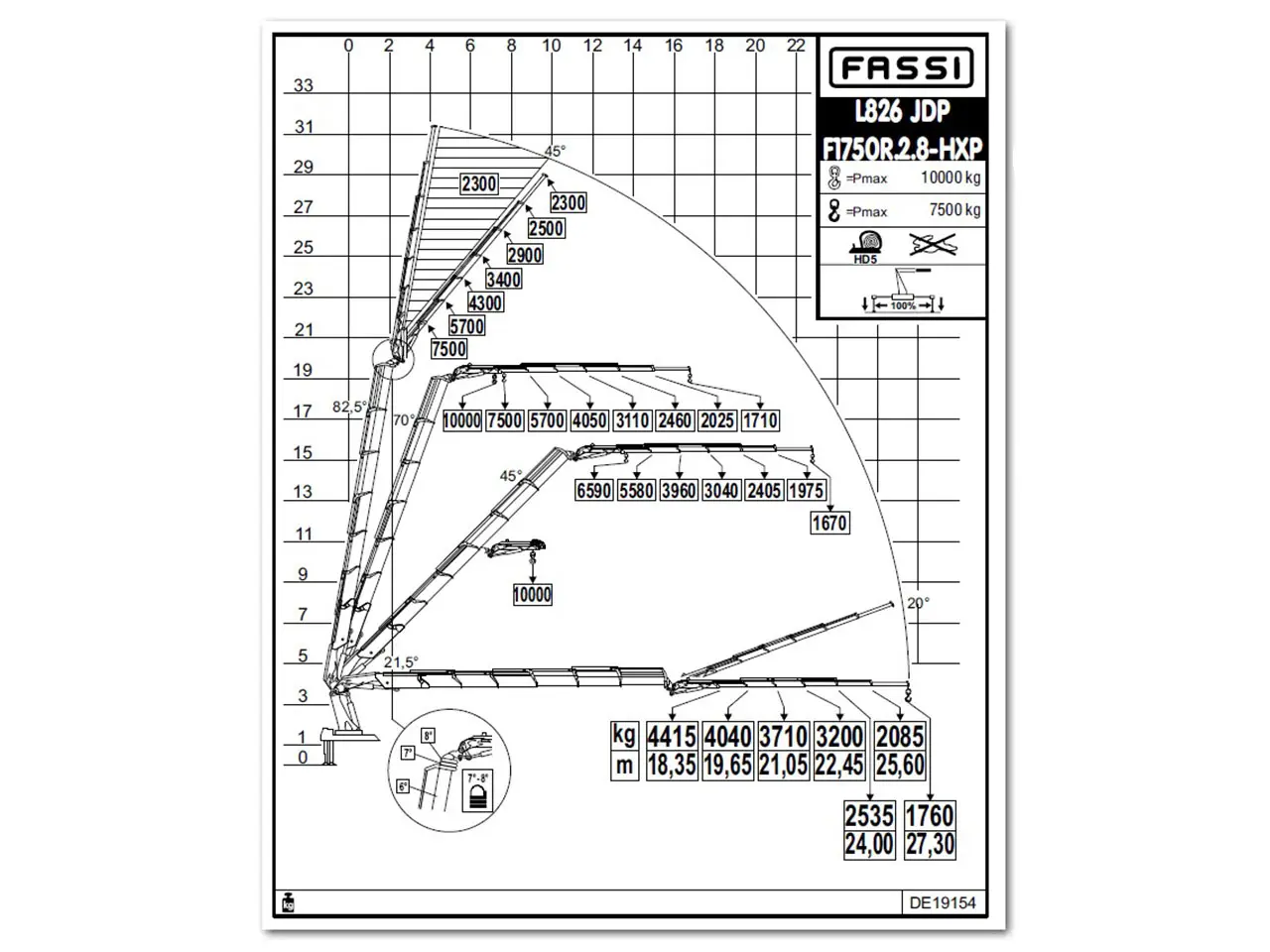

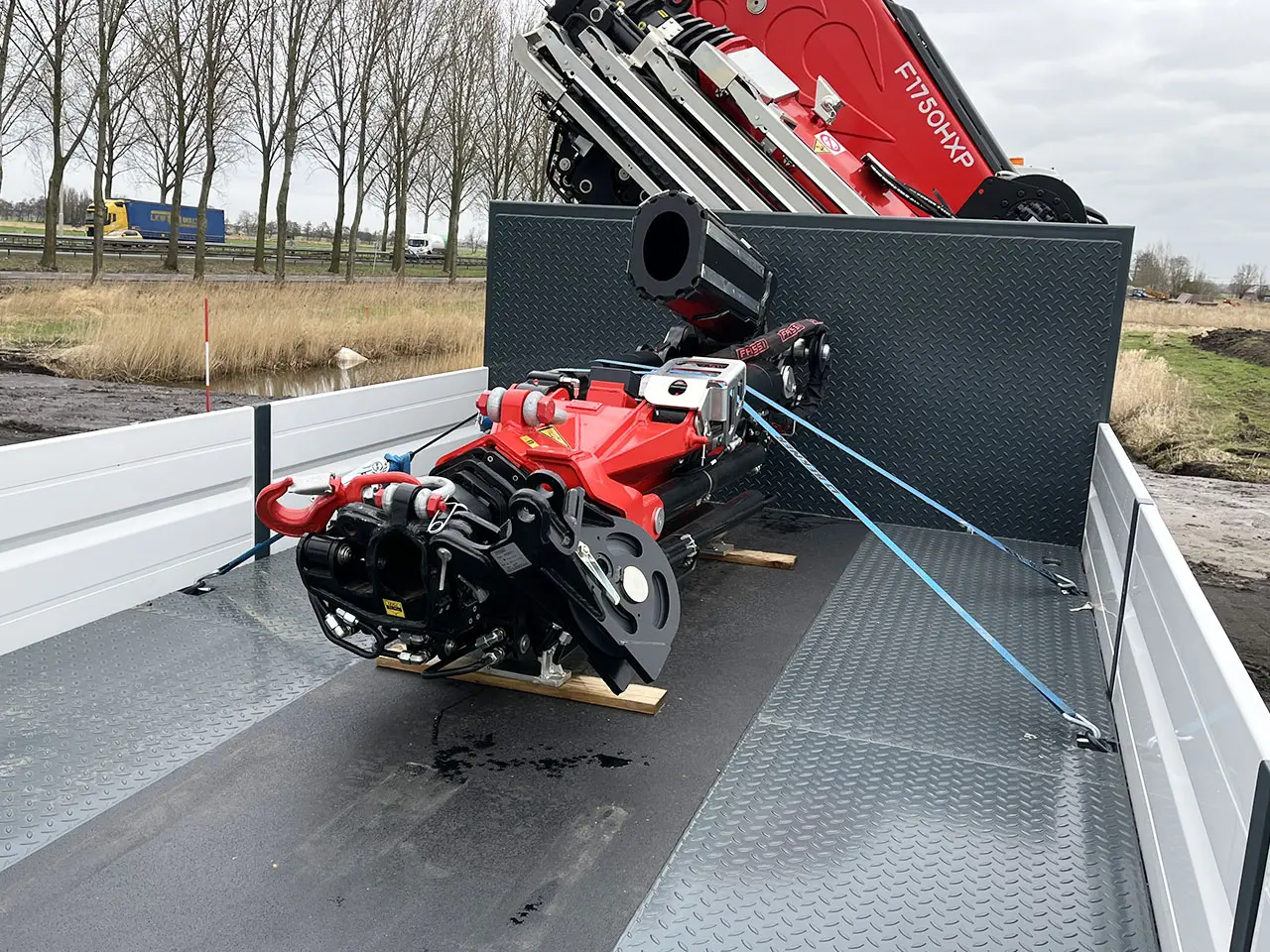

  Lifting capacity including Jib:
  4.415 kg / 18.35 m
  4.040 kg / 19.65 m
  3.710 kg / 21.05 m
  3.200 kg / 22.45 m
  2.535 kg / 24.00 m
  2.085 kg / 25.60 m
  1.760 kg / 27.30 m

  Electronic/Hydraulic Equipment:
  IMC integral machine control
  FX990 control unit
  D900 digital distributor bank

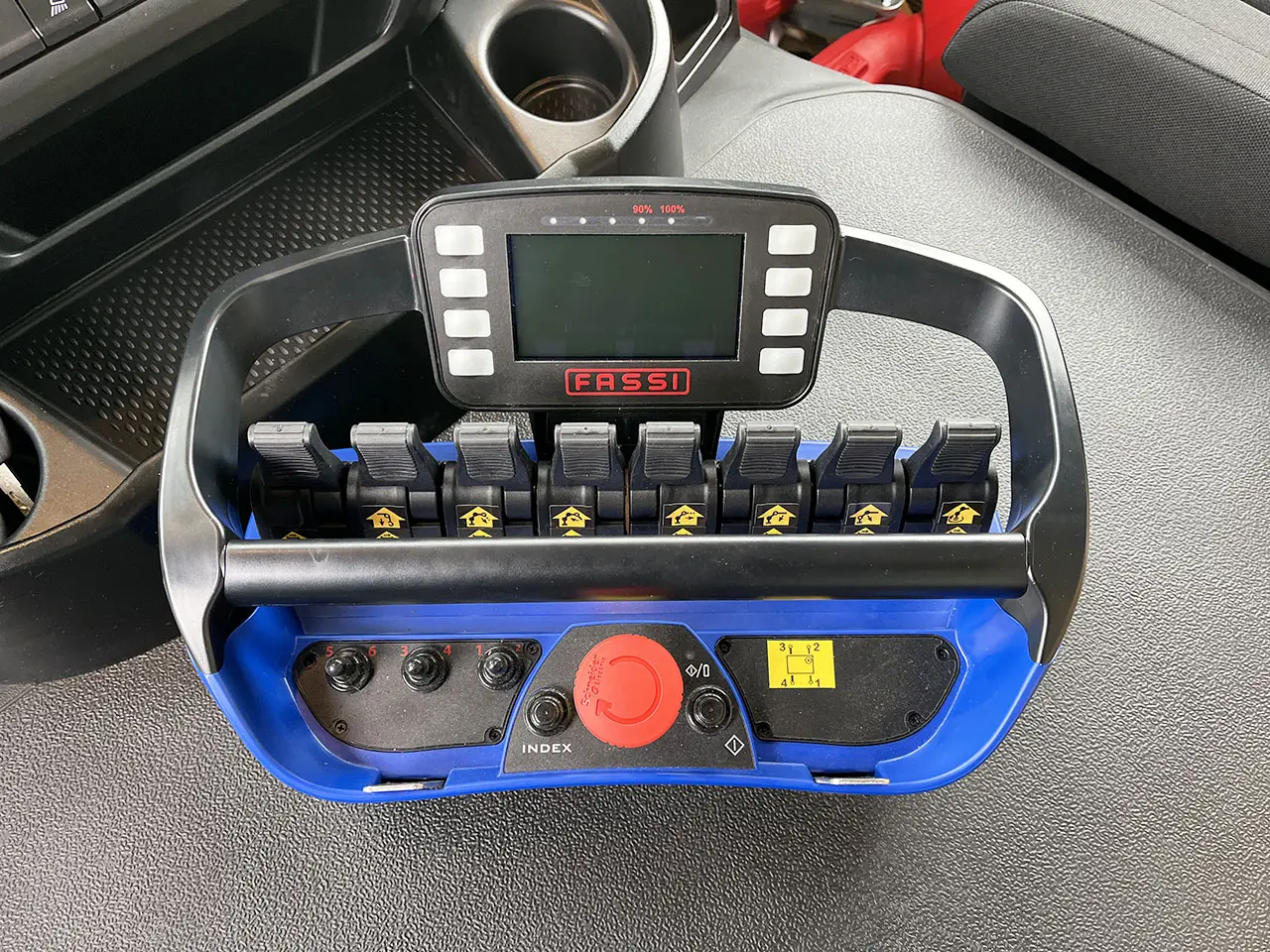

  V7S 8 functions radio remote control
  ADC automatic dynamic control
  FX991 - Touch screen display
  Electronic flow sharing
  Double linkage
  Prolink system
  Continuous rotation on a slew ring
  Foldable pulley L91
  Hydraulic winch V30

  Flat-bed lashing rings

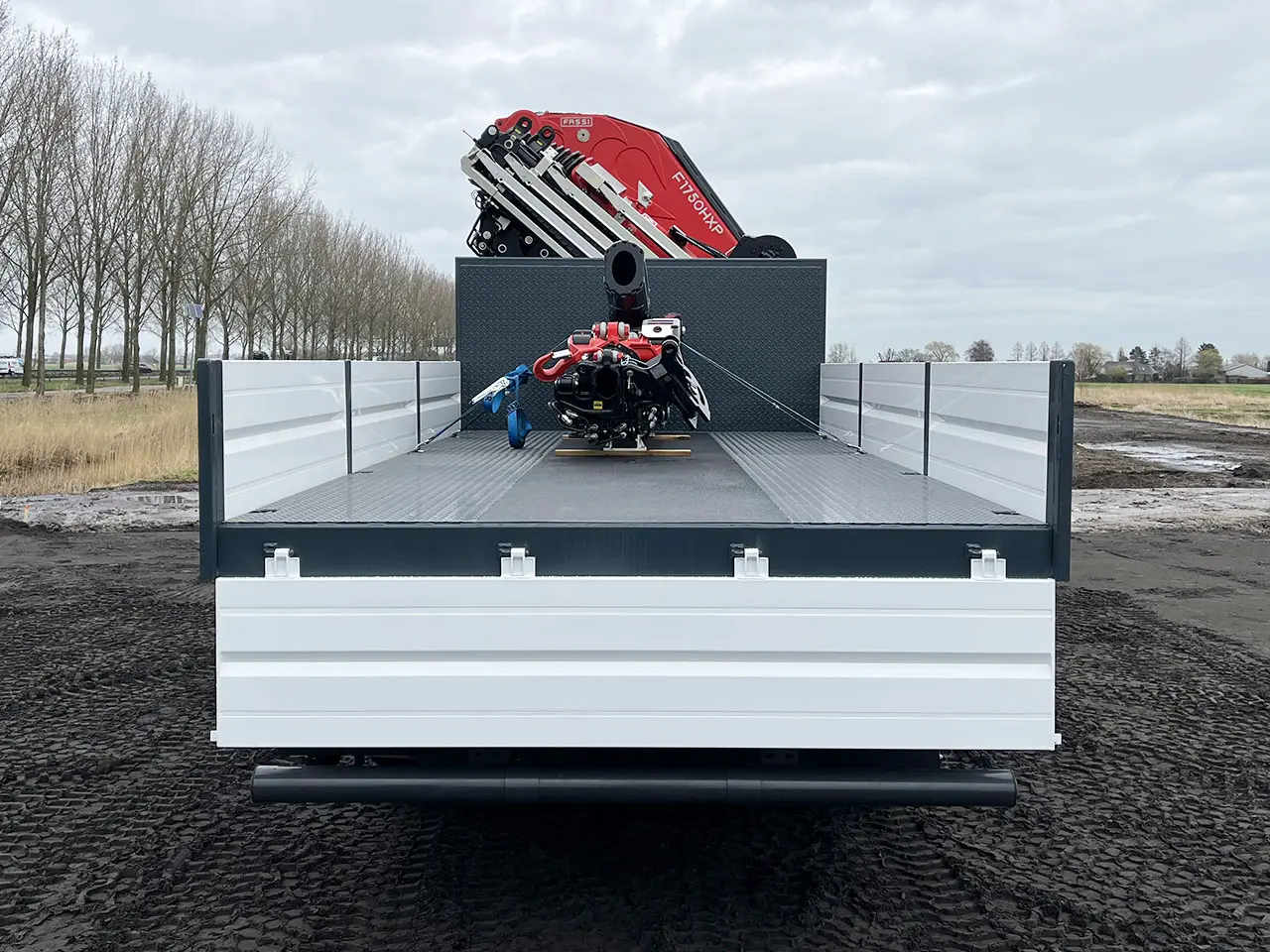

  Flat-bed dimensions 530 x 250 x 0.50 cm

  Complete specification in PDF.

Technical details

• Download PDF iv4895-fassi-f1750r28-hxp-techno-crane-specification
• Download PDF iv4895-iveco-t-way-ad410t47wh-8x8-chassis-cabin-datasheet
• Download PDF iv4895-iveco-t-way-ad410t47wh-8x8-chassis-cabin-specification
