Pre-order
In stock (2)

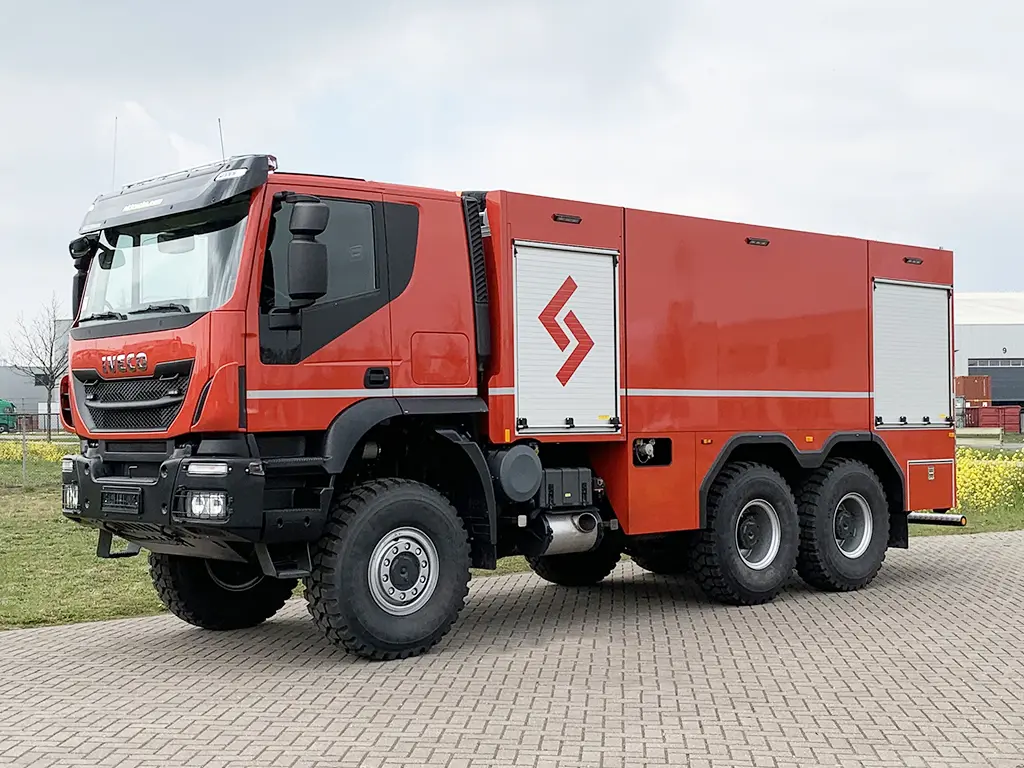

Iveco T-Way AD380T43H AT 6x4 Fire Fighter Truck
6x4
430hp/316kW
EURO-3
Left hand drive
€ 272.500
Net unit price EXW
Specifications
General
- ID
- IV5336
- Brand
- Iveco
- Construction
- Fire Fighter Truck
- Construction volume
- 11.000 Ltr.
- Fuel
- Diesel
- Production year
- 2023
- Model year
- 2024
- Vehicle status
- New / Unused
Engine
- Engine type
- F3HGE611Y
- Emission code
- EURO-3
- Engine power
- 430hp/316kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- ZF16TX2240TO
- PTO
- MULTIPOWER
Chassis
- Wheel base
- 4.500 mm
- GVW
- 33.500 kg
- Axle configuration
- 6x4
- Suspension
- Spring
Dimensions
- External dimension
- 10.000 x 2.600 x 3.400 mm
- Empty weight
- 14.000 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- No
- Tire size
- 315/80R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 290 ltr.Air conditioning
Equipped with fire fighting engine:
2+2+1 lockers layout
Tanks: water 11.000 ltr. + foam: 1.100 ltr.
Pump system Maleco
Medium pressure flow rate: 4.000 lpm@ 10 bar
High pressure flow rate: 250 lpm@ 40 bar
Roof monitor: 2.400 lpm@ 10 bar
Electric driven hose reels with 50 mtr.
Foam proportioner: 3% / 6%
Complete specification in PDF.
Pre-Order Status:
Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
