In stock (4)

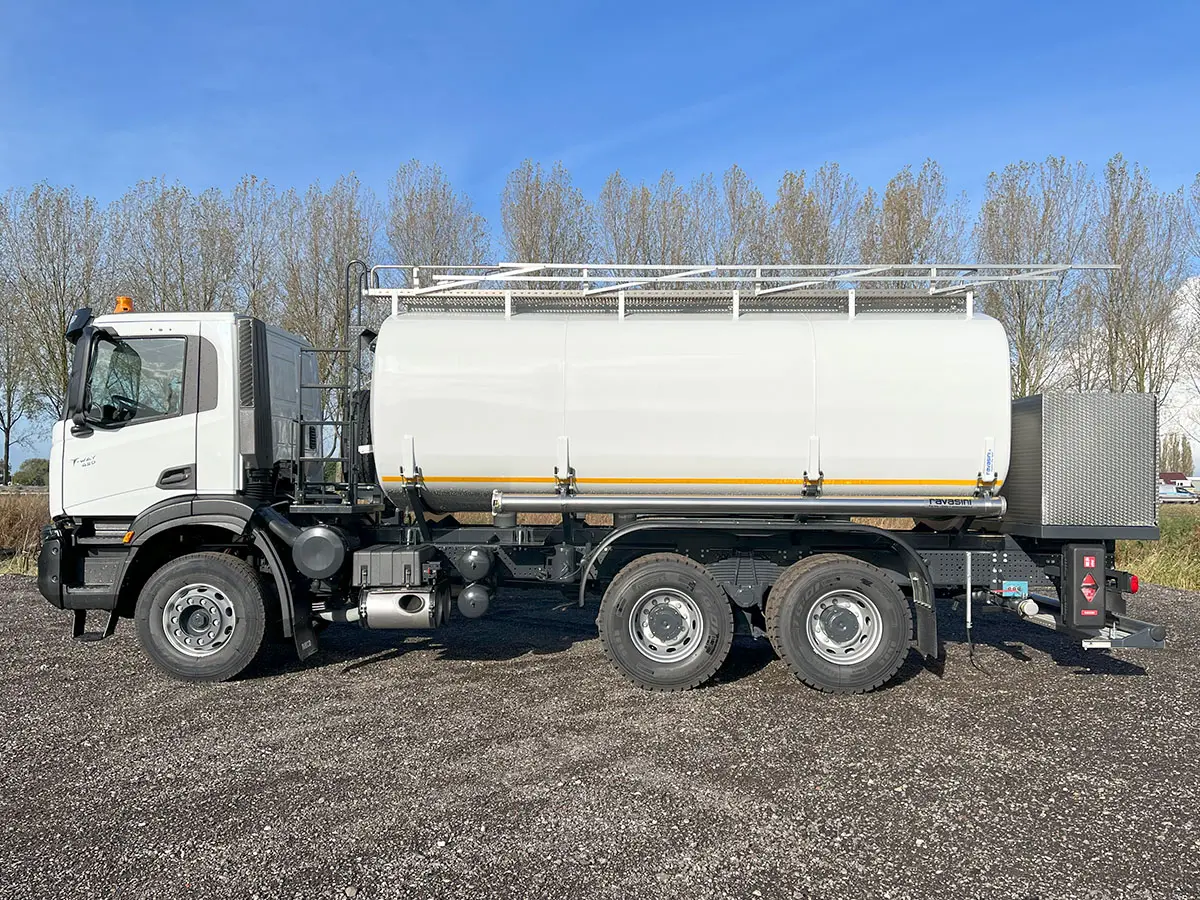

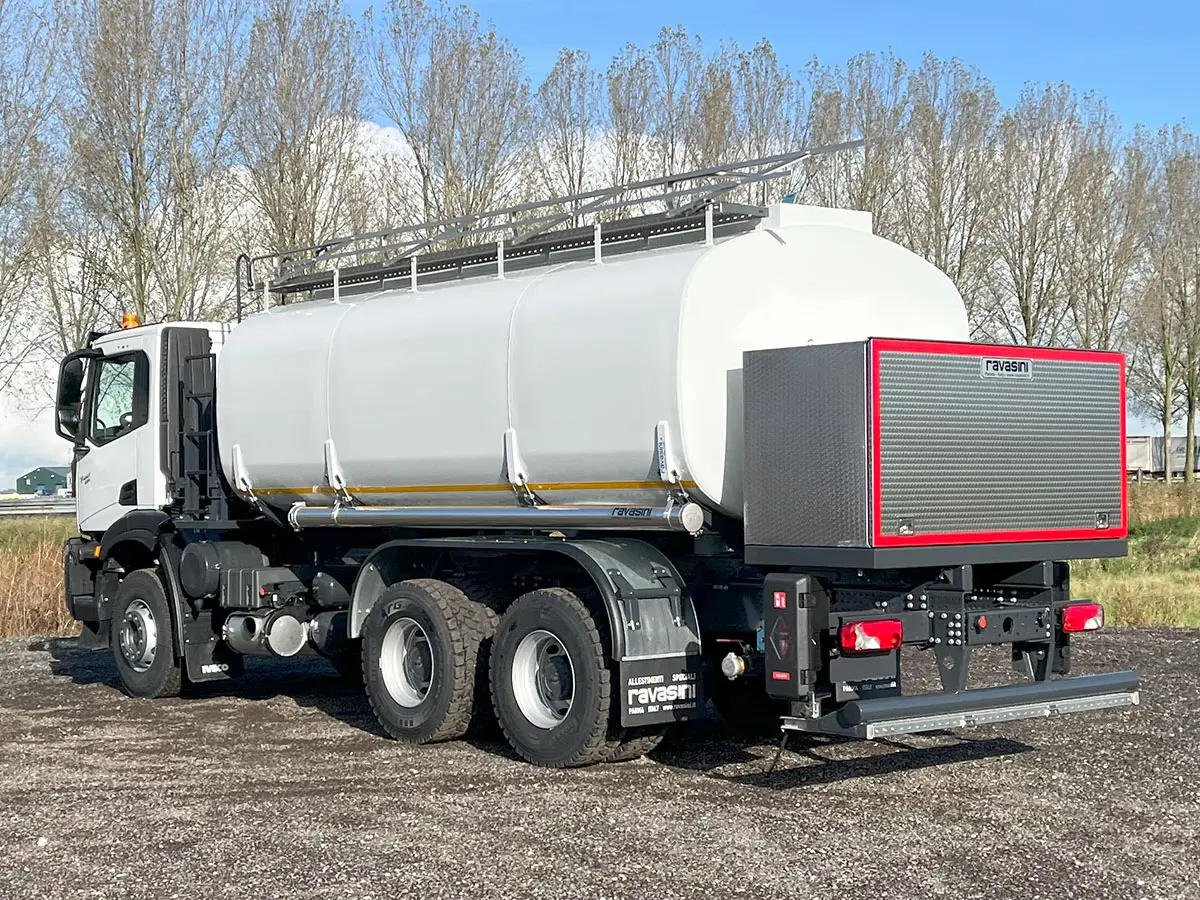

Iveco T-Way AD380T43H AT 6x4 Fuel Tank Truck
€ 155.000
Net unit price EXW
General
- ID
- IV4898
- Brand
- Iveco
- Construction
- Fuel Tank Truck
- Construction brand
- Ravasini
- Construction volume
- 20.000 Ltr.
- Fuel
- Diesel
- Production year
- 2023
- Model year
- 2023
- Vehicle status
- New / Unused
Chassis
- Wheel base
- 3.800 mm
- GVW
- 33.500 kg
- Axle configuration
- 6x4
- Suspension
- Spring
Engine
- Engine type
- F3HGE611Y
- Emission code
- EURO-3
- Engine power
- 430hp/316kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- ZF16TX2240TO
Dimensions
- External dimension
- 9.600 x 2.500 x 3.600 mm
- Empty weight
- 13.400 kg
Remarks
Fuel tank: 290 ltr.Air conditioning
Equipped with Ravasini fueltank 20.000 ltr.
Three compartments (6.800l+6.500l+6.800l+expansion volume)
Manhole with cover diam. 500 complete with inlet and breathing valve and containing basin in case of liquid pouring out from the manhole.
Pumping unit placed in a suitable stainless steel box, positioned on the rear side of the vehicle.
Positive displacement pump 500 l/1 min.
Liter counter with a flow rate of 550 l/1, complete with filter, degasser, aircheck valve, with positive displacement head having partial measuring at 5 resettable digits, and total measuring with 7 non resettable digits.
Manual winding hose reel with 20 m of 1,5 hose and delivery gun.
Complete specification in PDF.
