In stock (1)

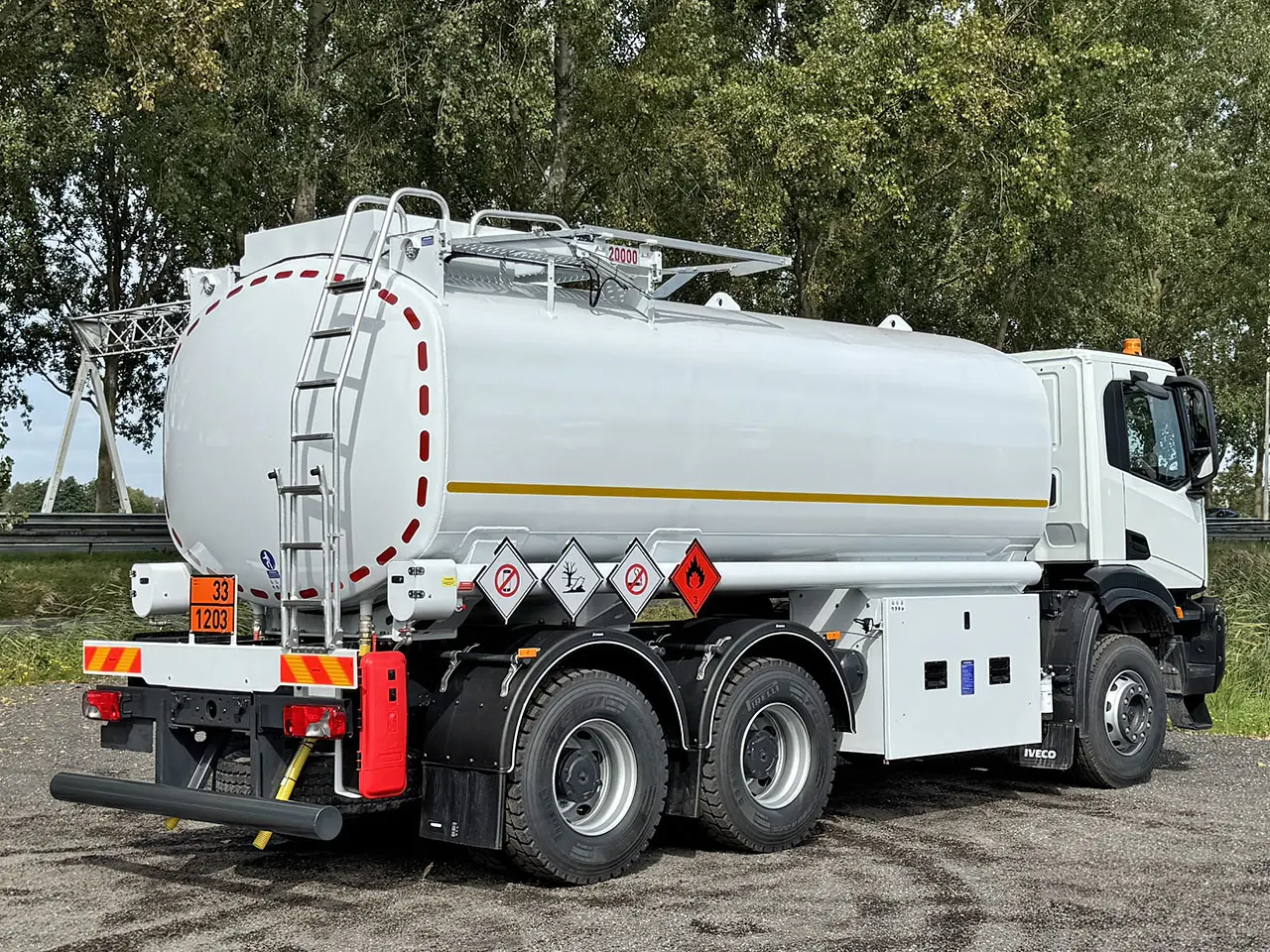

Iveco T-Way AD380T43 Fuel Tank Truck 6x4
€ 151.450
Net unit price EXW
General
- ID
- Q00538
- Brand
- Iveco
- Construction
- Fuel Tank Truck
- Construction volume
- 20.000 Ltr.
- Fuel
- Diesel
- Production year
- 2025
- Model year
- 2026
- Vehicle status
- New / Unused
Chassis
- Wheel base
- 3.800 mm
- GVW
- 33.500 kg
- Axle configuration
- 6x4
- Suspension
- Spring
Engine
- Engine type
- F3HGE611Y
- Emission code
- EURO-3
- Engine power
- 430hp/316kW

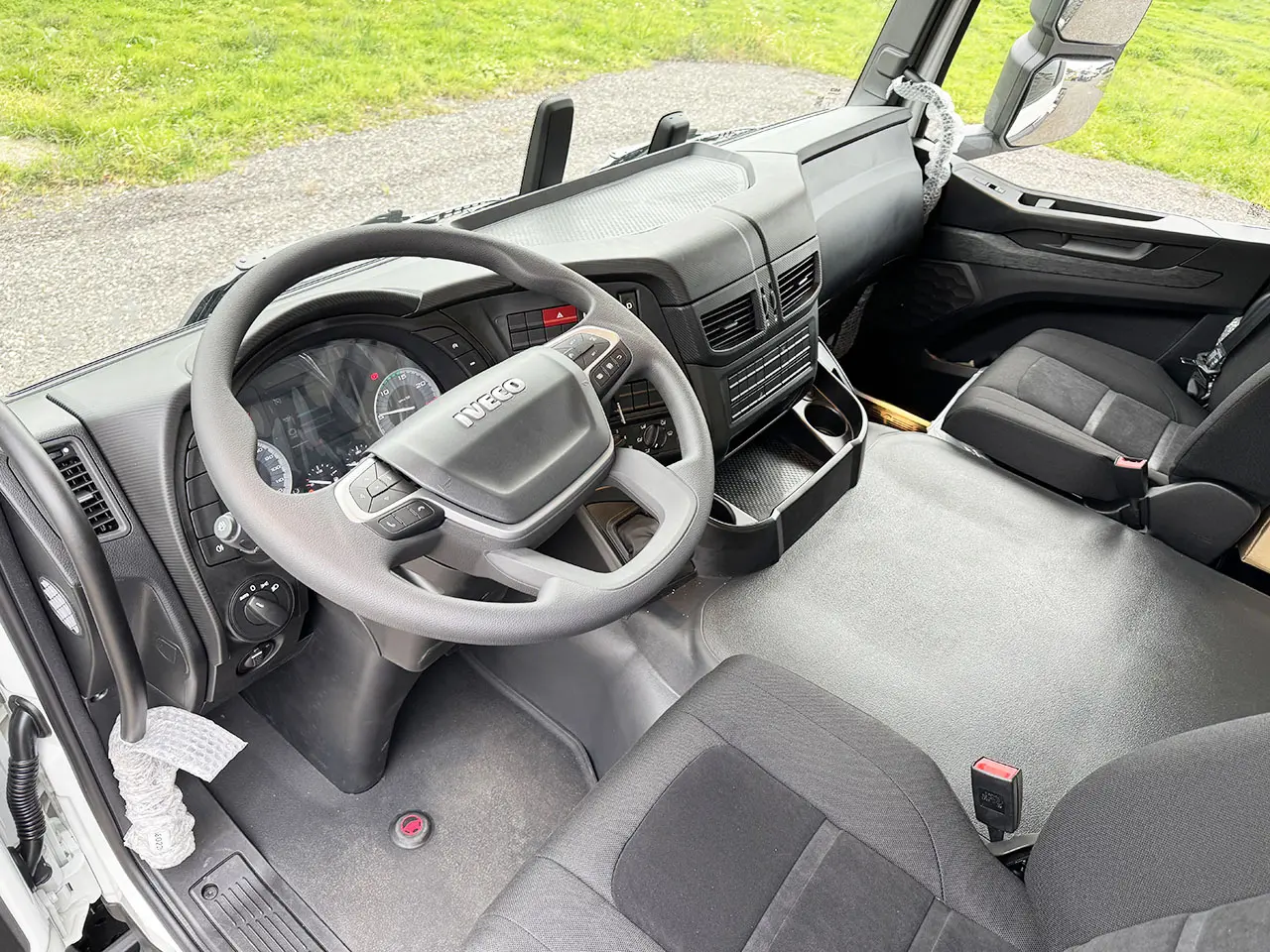

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- ZF16TX2240TO
- PTO
- NH/4C
Dimensions
- External dimension
- 8.400 x 2.500 x 3.500 mm
- Empty weight
- 12.000 kg
Remarks
Fuel tank: 290 ltr.Air conditioning
Equipped with aluminum fuel tank body 20.000 ltr.
One compartments +5% air gap
Elliptical tank body is made with ALUMINUM 5182. Thickness; bottom 5.2mm, sides 5.2mm, all baffles min. 5.2mm. In body joints, robot automation welding technology will be used.
On top of the tank in such a way that contains the manhole covers. Accumulate rainwater on the top of the body for drainage that passes through the body by 2 pieces pipe with spherical valve at the ends.
All discharge pipes will be 3" (inch) diameter. The valves will be in the entrance of the cabinet, fixed with Flange and cables. Discharging cabinet will placed on right side according to driving way.
2.5’ Pump (450 ltr./min) with bypass and filters
Flowmeter mechanical with heavy duty filtering system
Pneumatic hose reel + 40m hose + dispensing gun
Complete specification in PDF.
