Iveco Eurocargo ML180E28 4x2 Fuel Tank Truck
Price on request
General
- ID
- IV5380
- Brand
- Iveco
- Construction
- Fuel Tank Truck
- Construction volume
- 10.000 Ltr.
- Fuel
- Diesel
- Production year
- 2024
- Model year
- 2024
- Vehicle status
- New / Unused
Chassis
- Wheel base
- 4.185 mm
- GVW
- 18.000 kg
- Axle configuration
- 4x2
- Suspension
- Spring
Engine
- Engine type
- Tector 7
- Emission code
- EURO-3
- Engine power
- 280hp/207kW

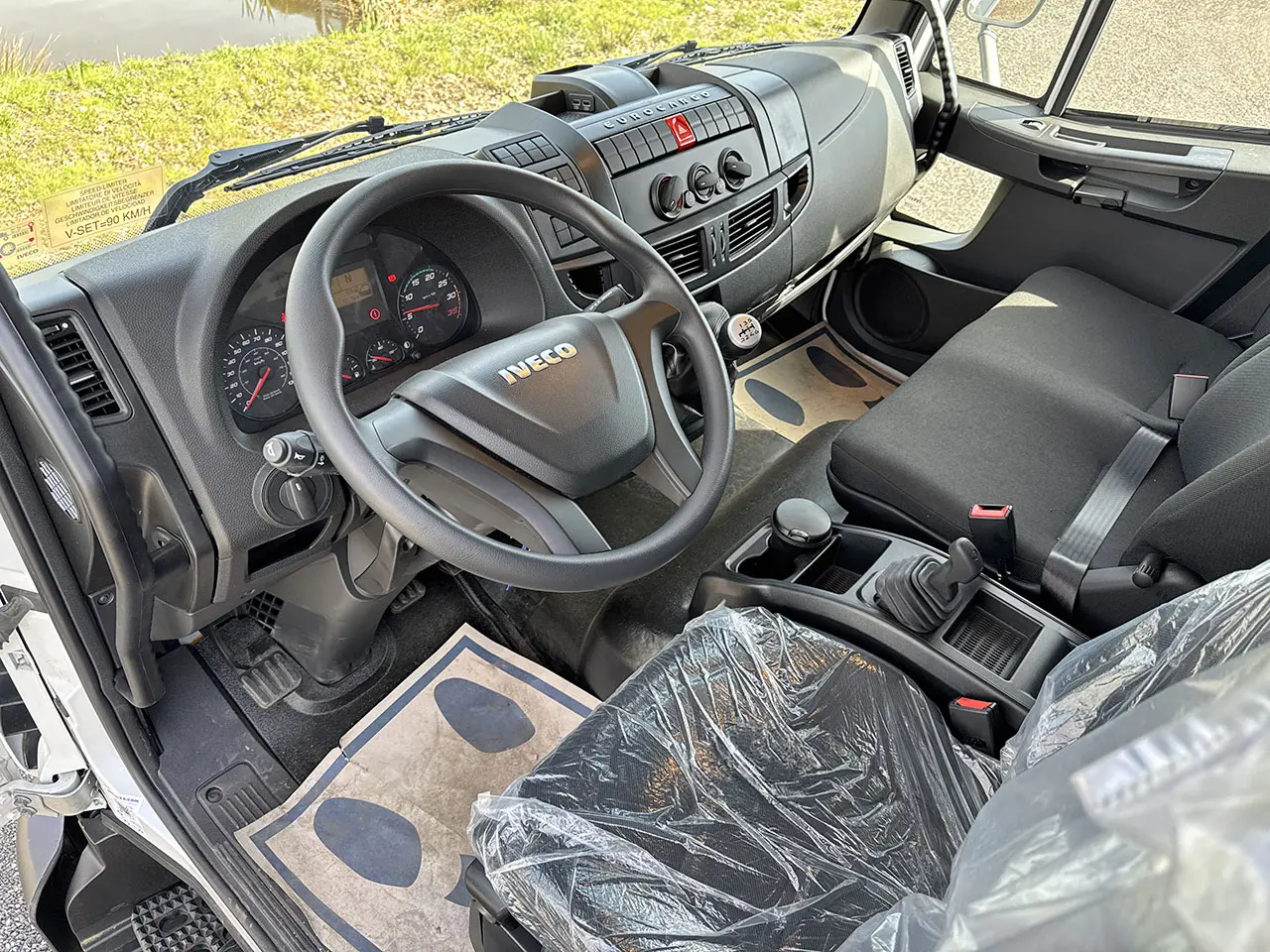

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Manual
- Gearbox
- 6-Speed
- PTO
- NH/4C
Dimensions
- External dimension
- 7.300 x 2.500 x 3.200 mm
Remarks
Fuel tank: 115 ltr.Air conditioning

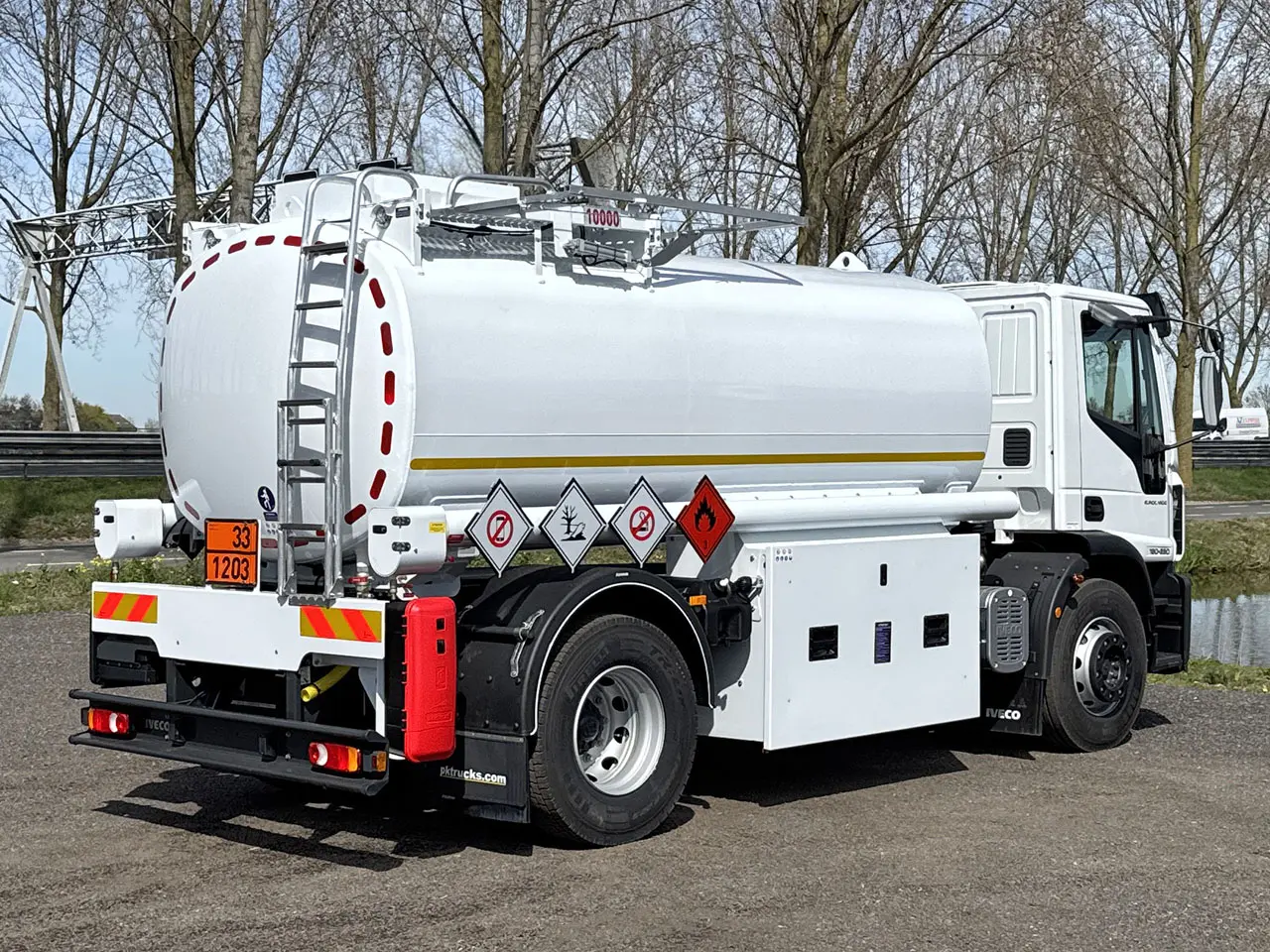

Equipped with aluminum fuel tank body 10.000 ltr.
One compartments +5% air gap
Elliptical tank body is made with ALUMINUM 5182. Thickness; bottom 5.2mm, sides 5.2mm, all baffles min. 5.2mm. In body joints, robot automation welding technology will be used.
On top of the tank in such a way that contains the manhole covers. Accumulate rainwater on the top of the body for drainage that passes through the body by 2 pieces pipe with spherical valve at the ends.
All discharge pipes will be 3" (inch) diameter. The valves will be in the entrance of the cabinet, fixed with Flange and cables. Discharging cabinet will placed on right side according to driving way.
2.5 inch Pump (450 ltr/min.) with bypass and filters
Flowmeter mechanical with heavy duty filtering system
Pneumatic hose reel + 40 mtr. hose + dispensing gun
Complete specification in PDF.
