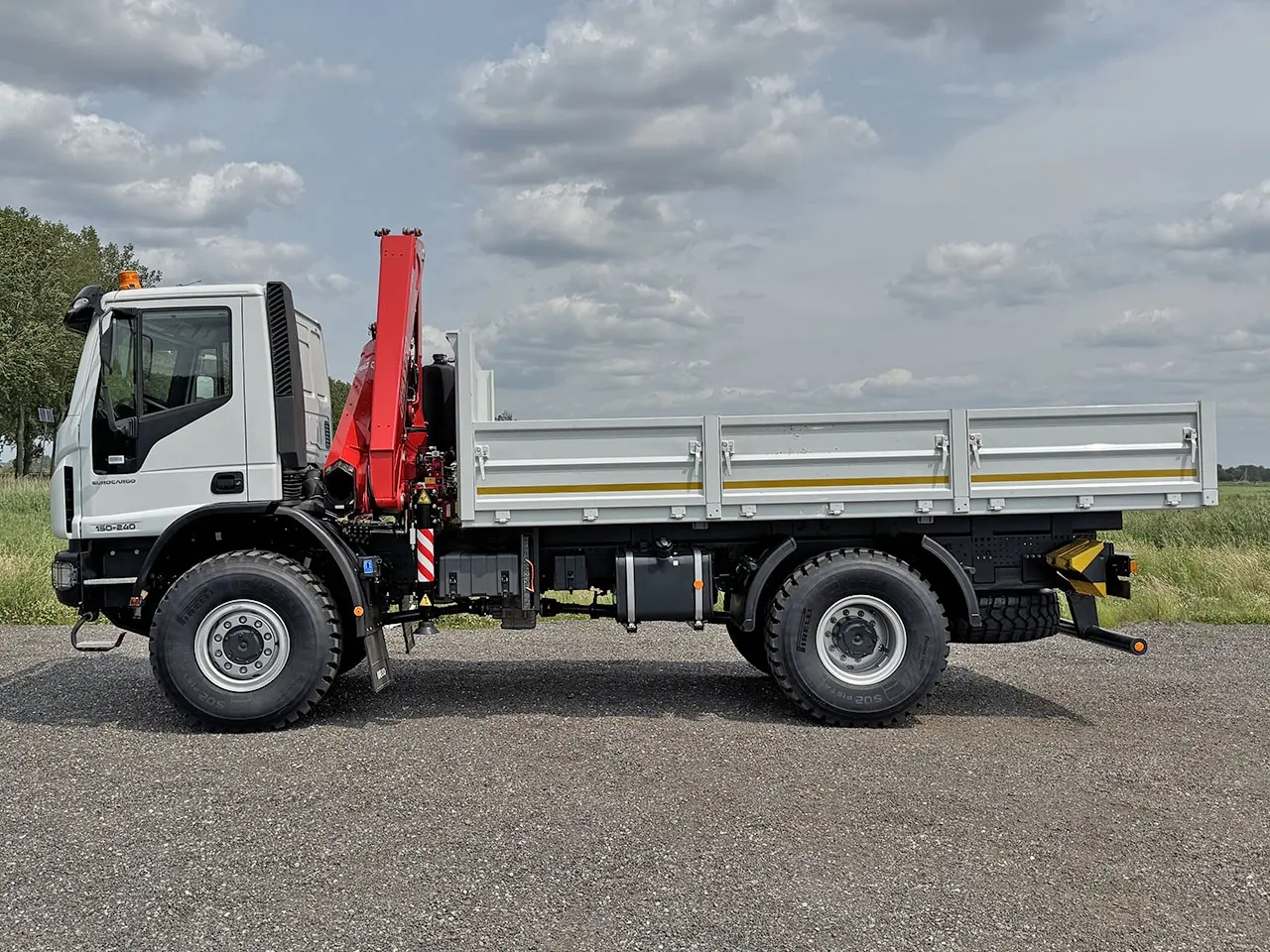

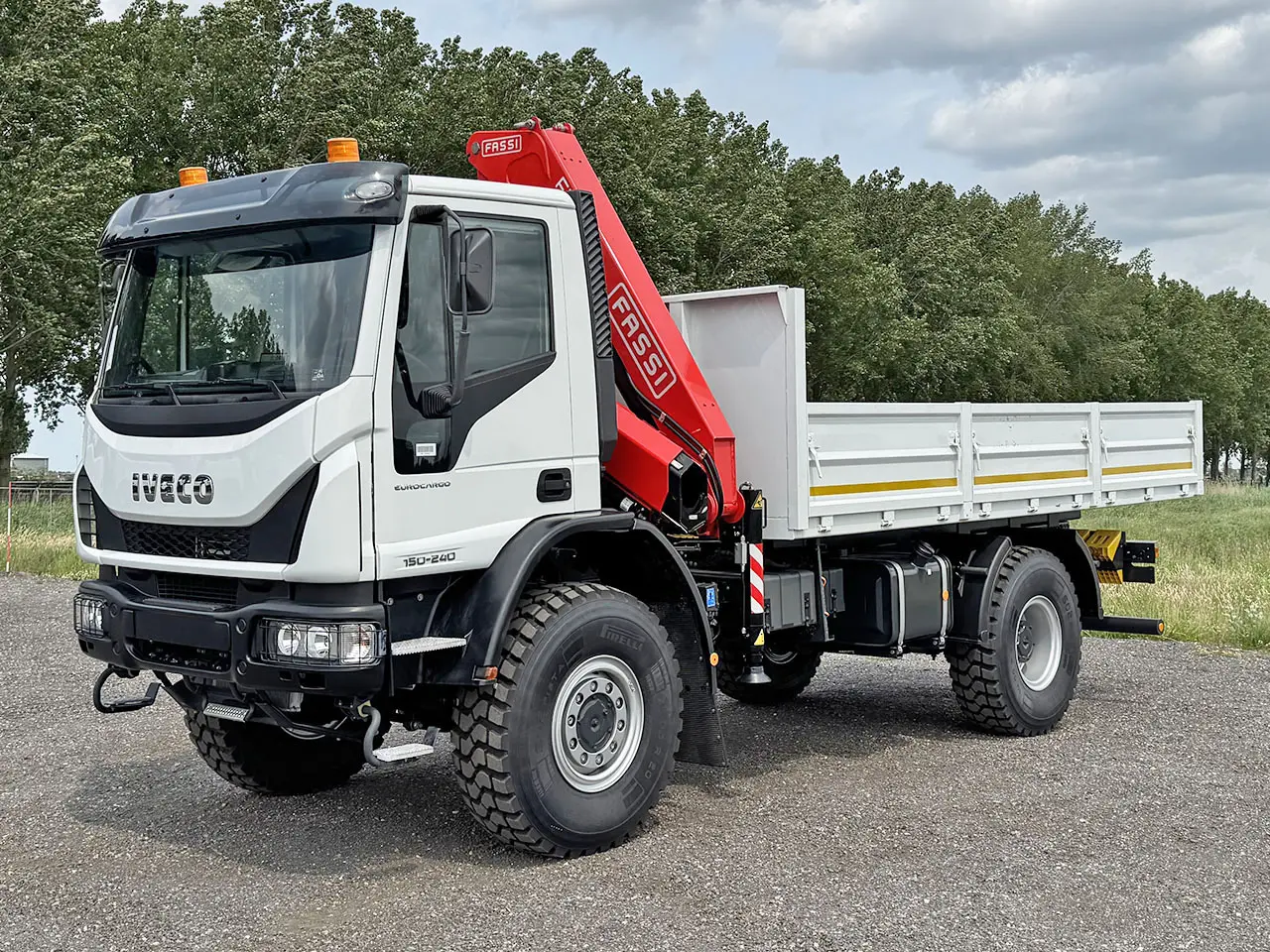

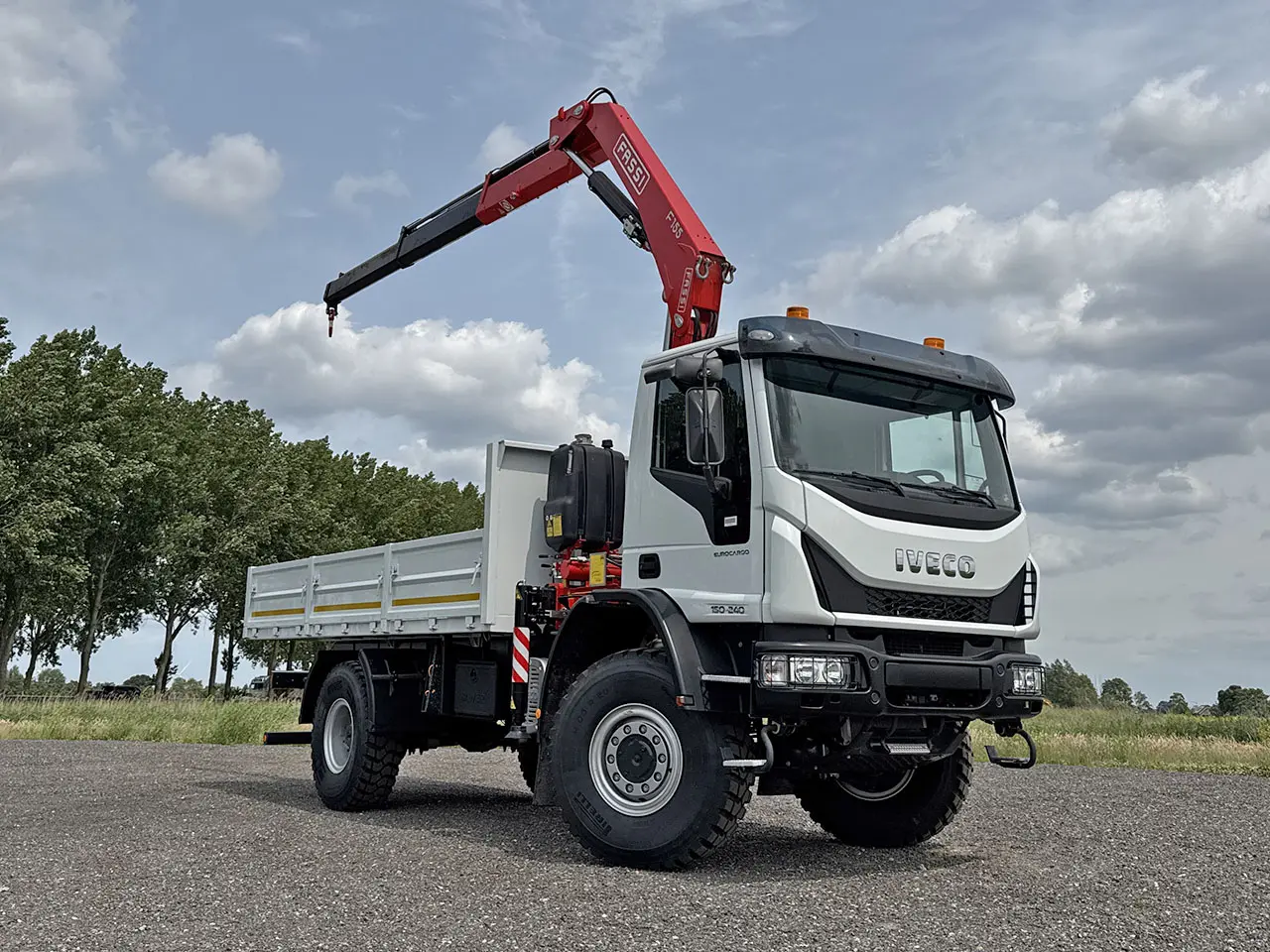

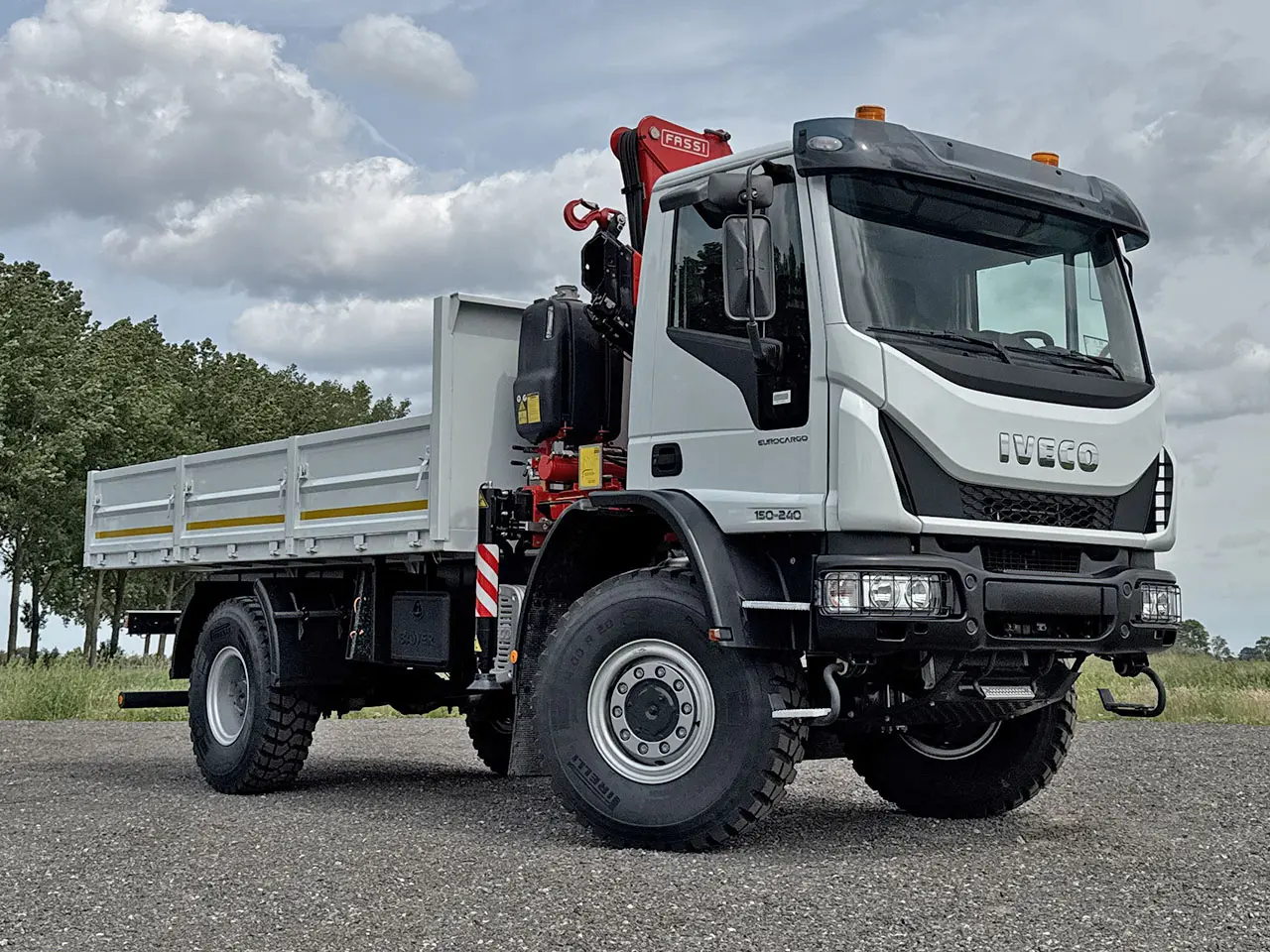

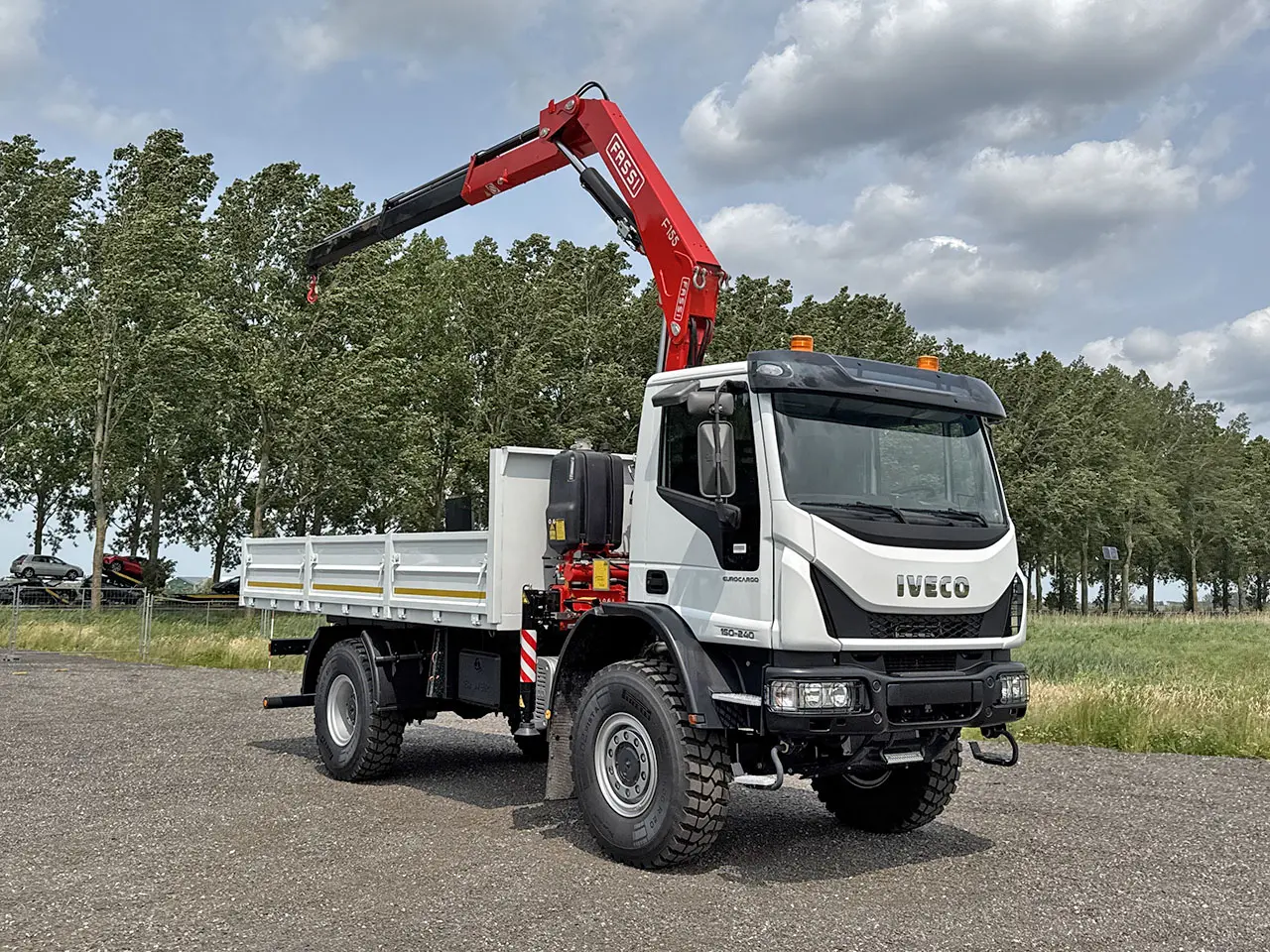

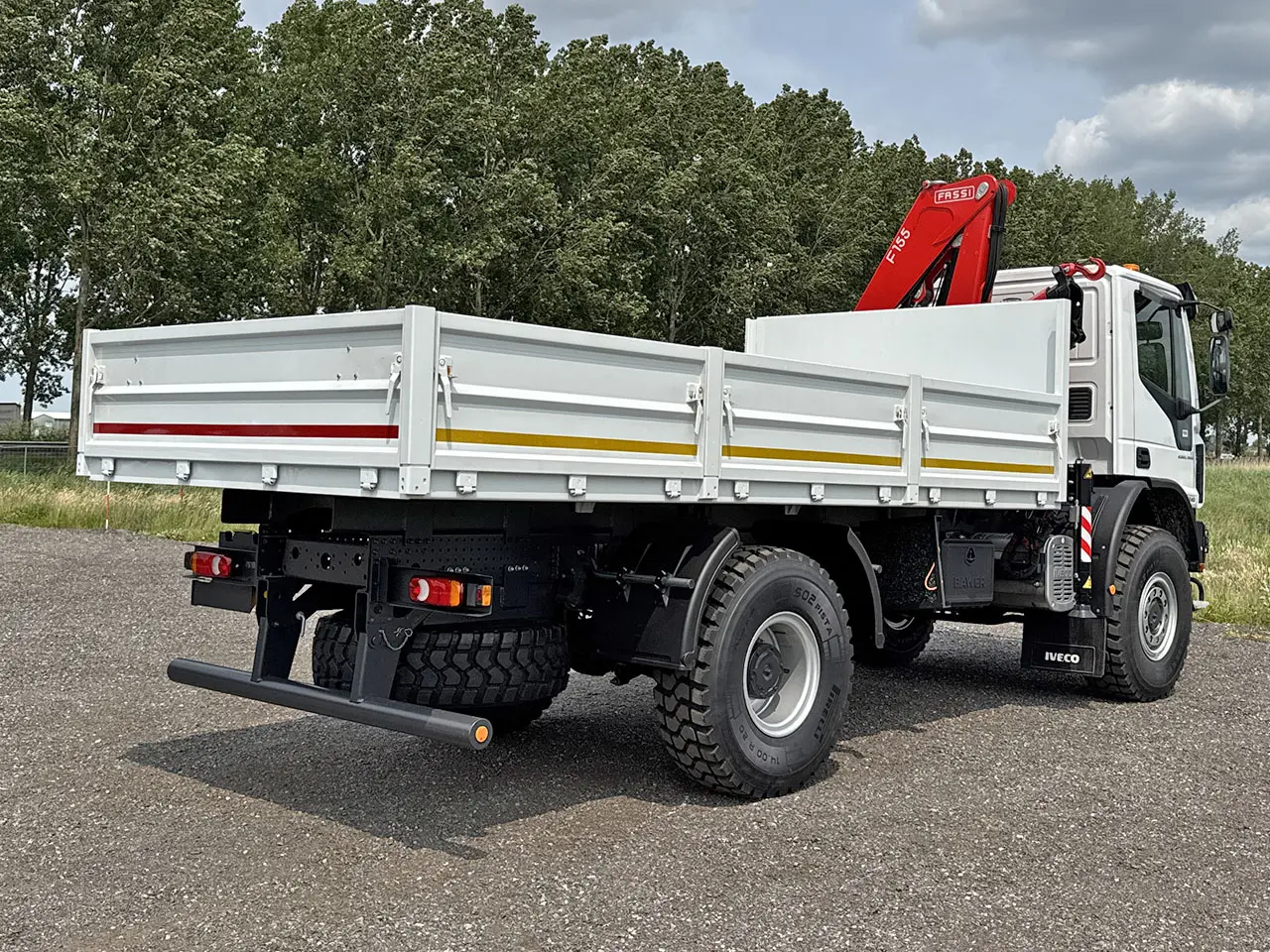

Iveco Eurocargo ML150E24WS Fassi F155A.0.22 4x4 Crane Truck
4x4
240hp/177kW
EURO-3
Left hand drive
€ 119.500
Net unit price EXW
Specifications
General
- ID
- IV5257
- Brand
- Iveco
- Construction
- Crane Truck
- Construction brand
- Fassi
- Fuel
- Diesel
- Production year
- 2023
- Model year
- 2024
- Vehicle status
- New / Unused
Engine
- Engine type
- TECTOR
- Emission code
- EURO-3
- Engine power
- 240hp/177kW

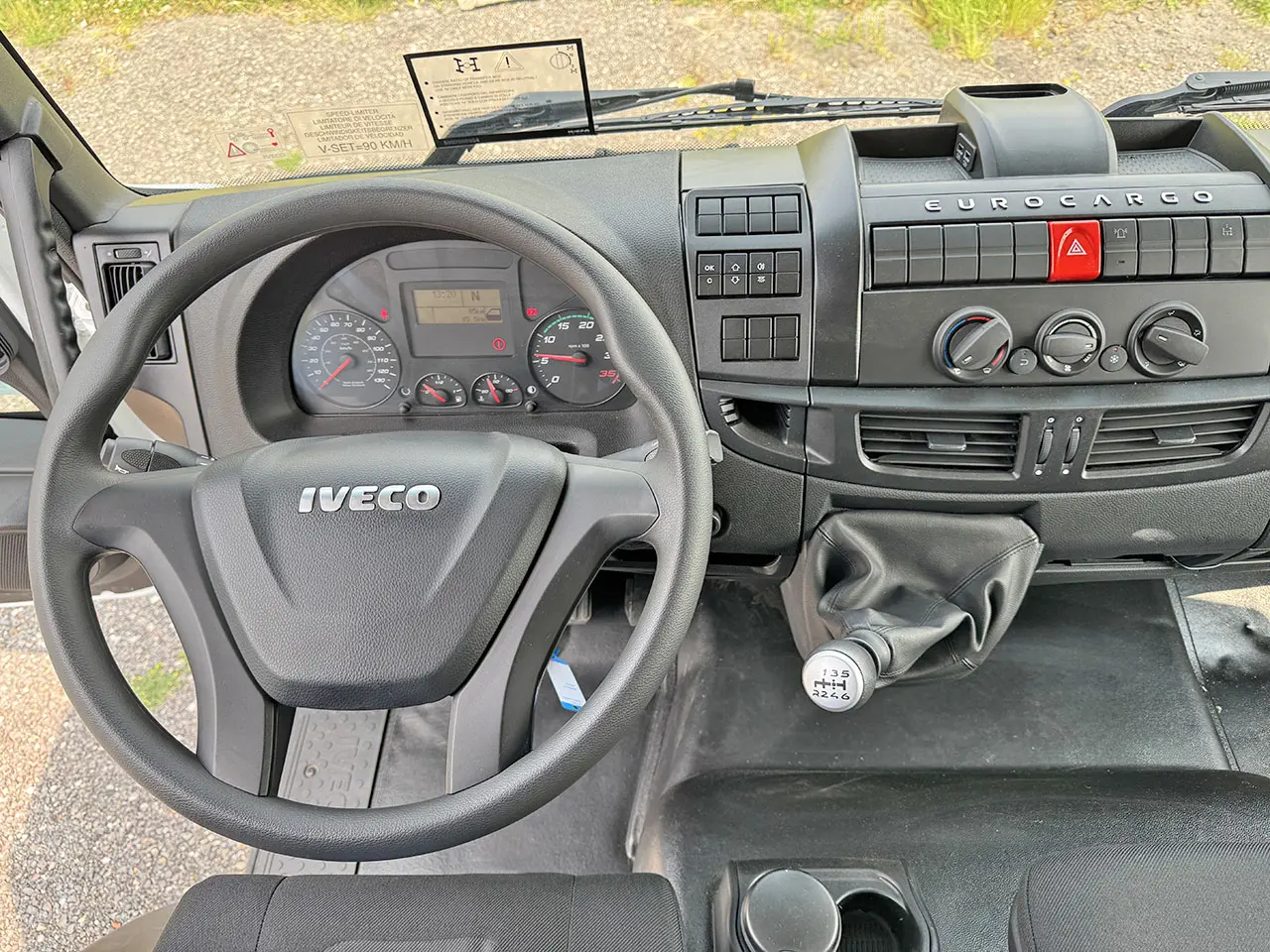

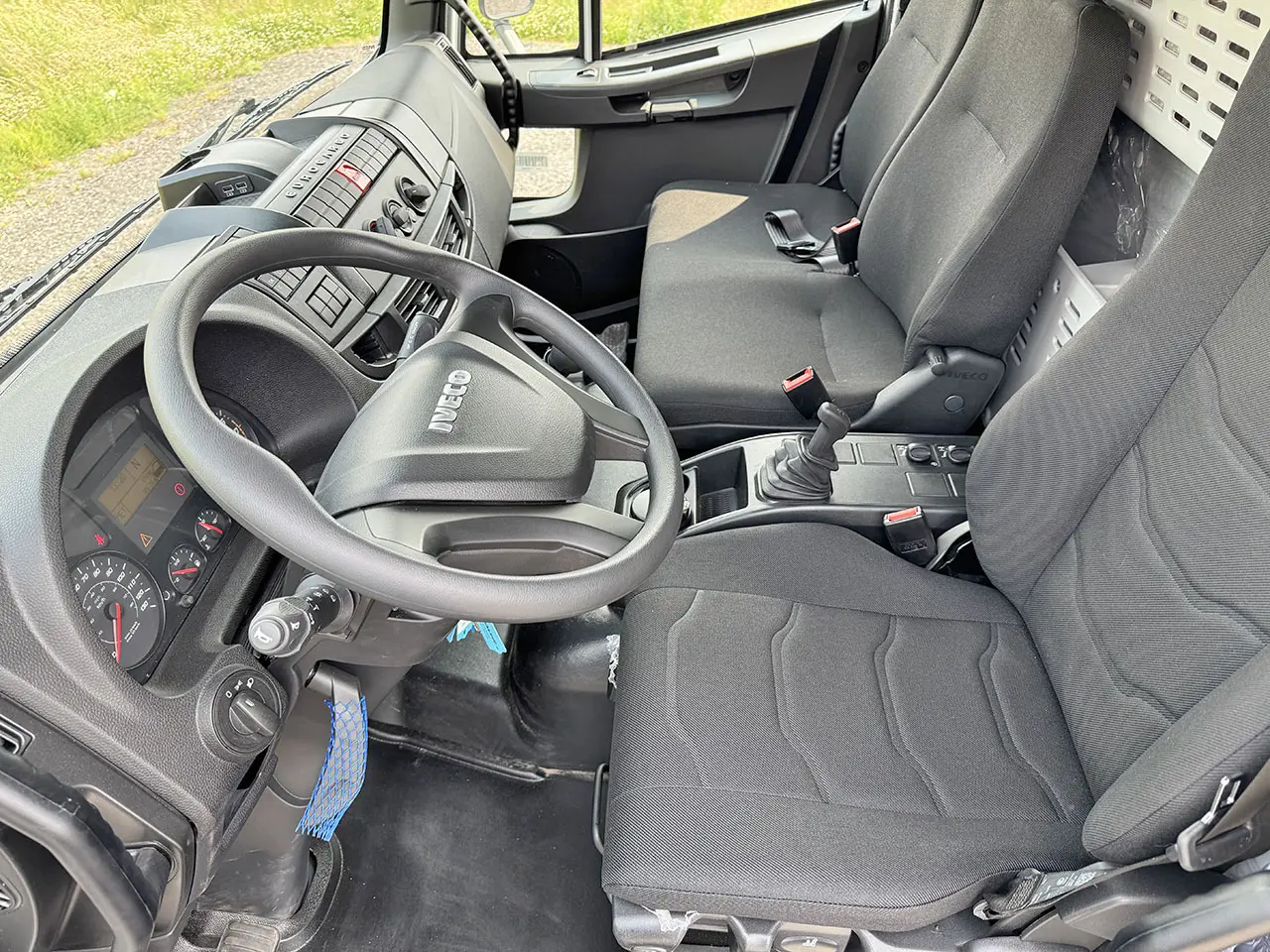

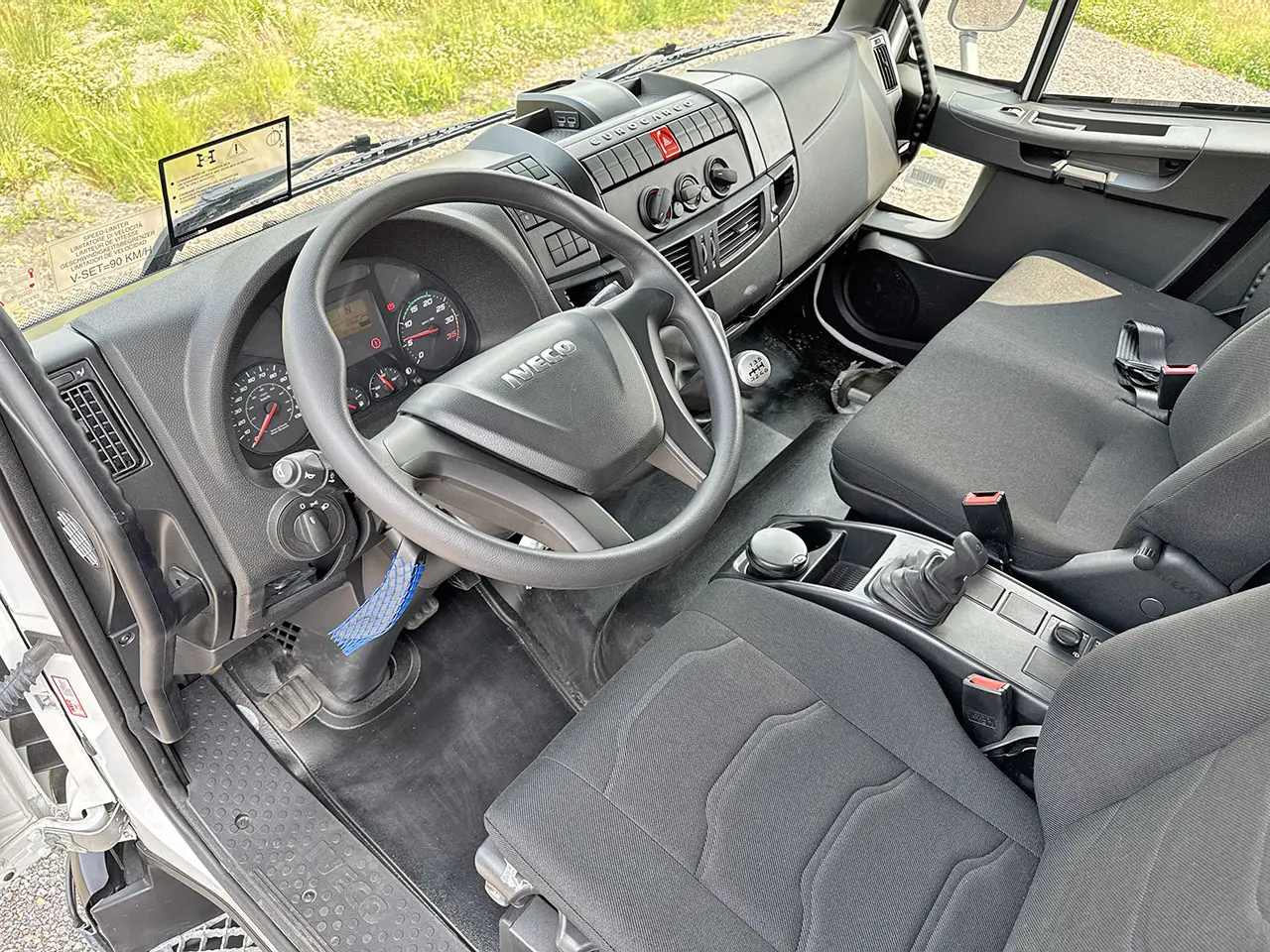

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Manual
- Gearbox
- ZF6S1005TO
- PTO
- NH/4C
Chassis
- Wheel base
- 4.150 mm
- GVW
- 15.000 kg
- Axle configuration
- 4x4
- Suspension
- Spring
Dimensions
- External dimension
- 8.000 x 2.500 x 3.700 mm
- Empty weight
- 10.500 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes

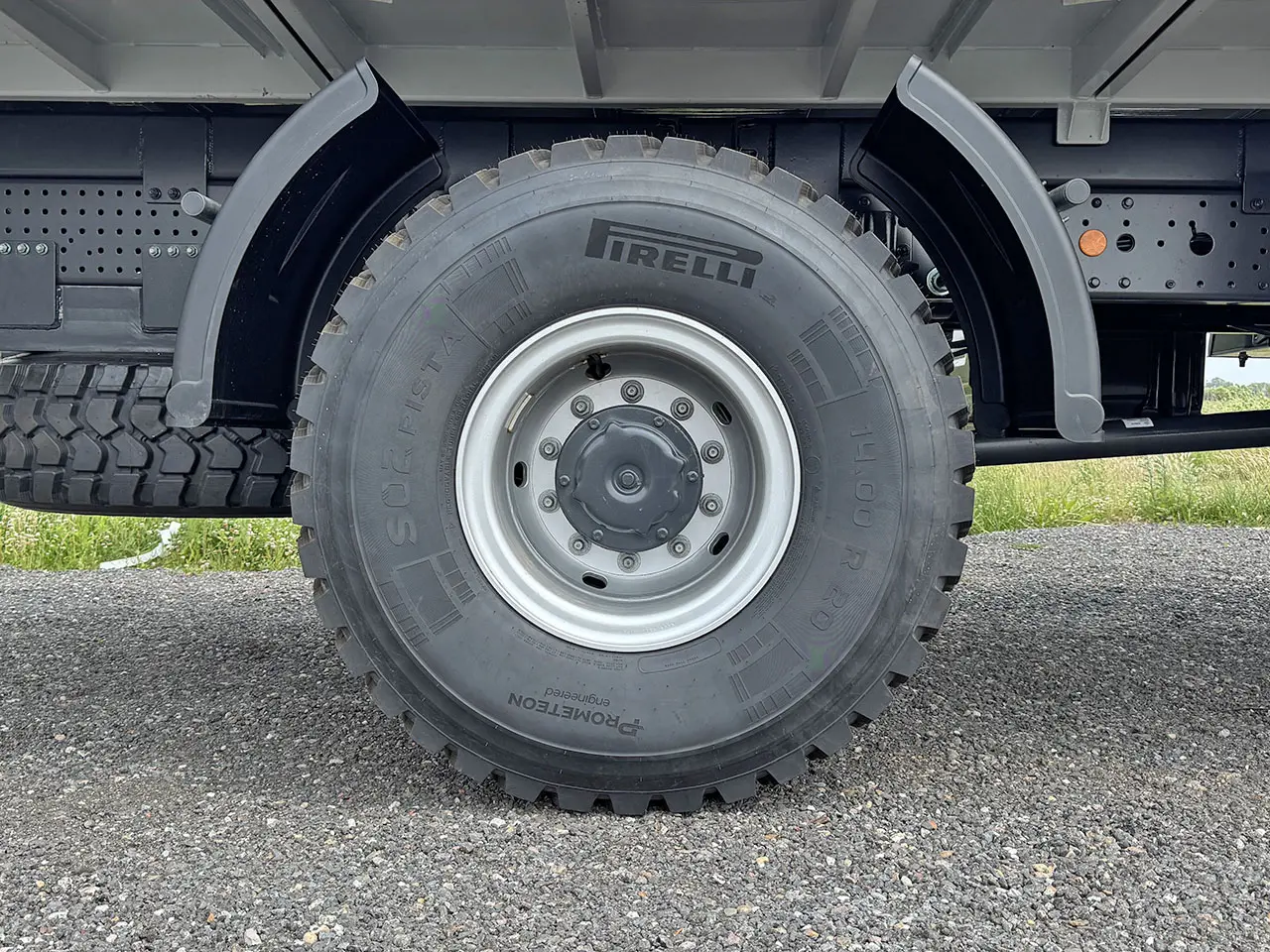

- Tire size
- 14.00R20
Axle 2
- Steering
- No
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 14.00R20
Remarks
Fuel tank: 180 ltr.Air conditioning
Head light protection
Foldable rear bumper

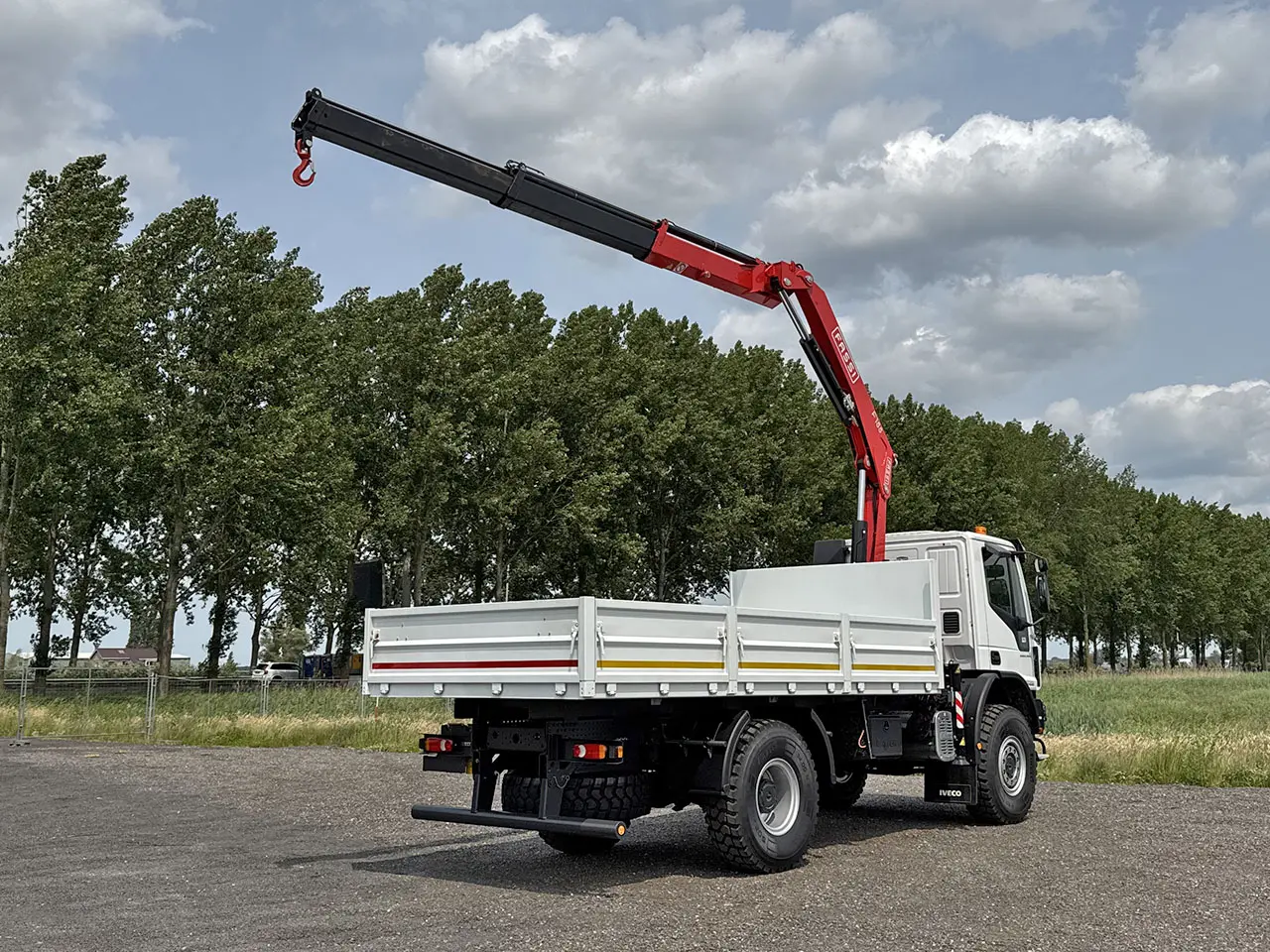

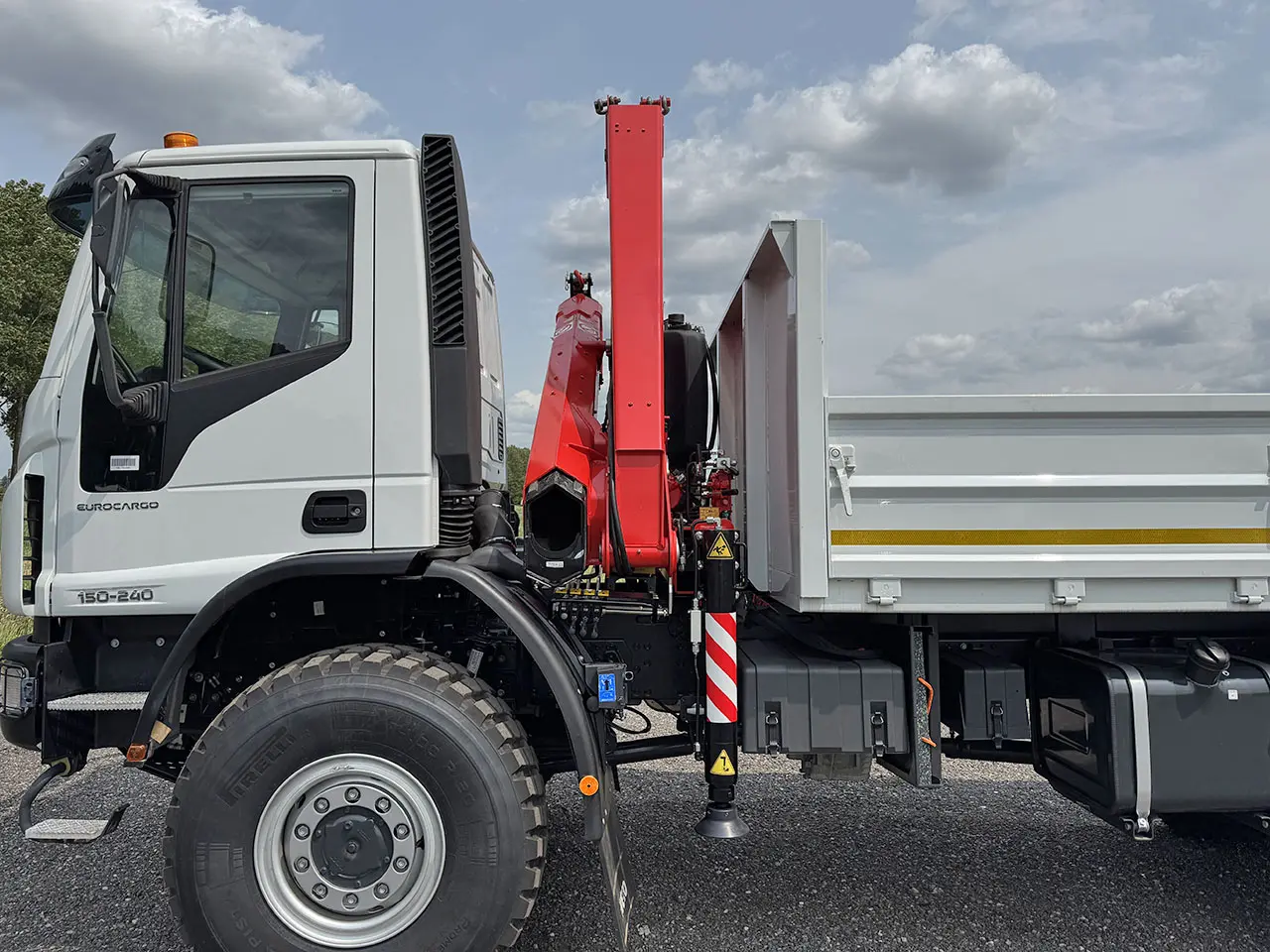

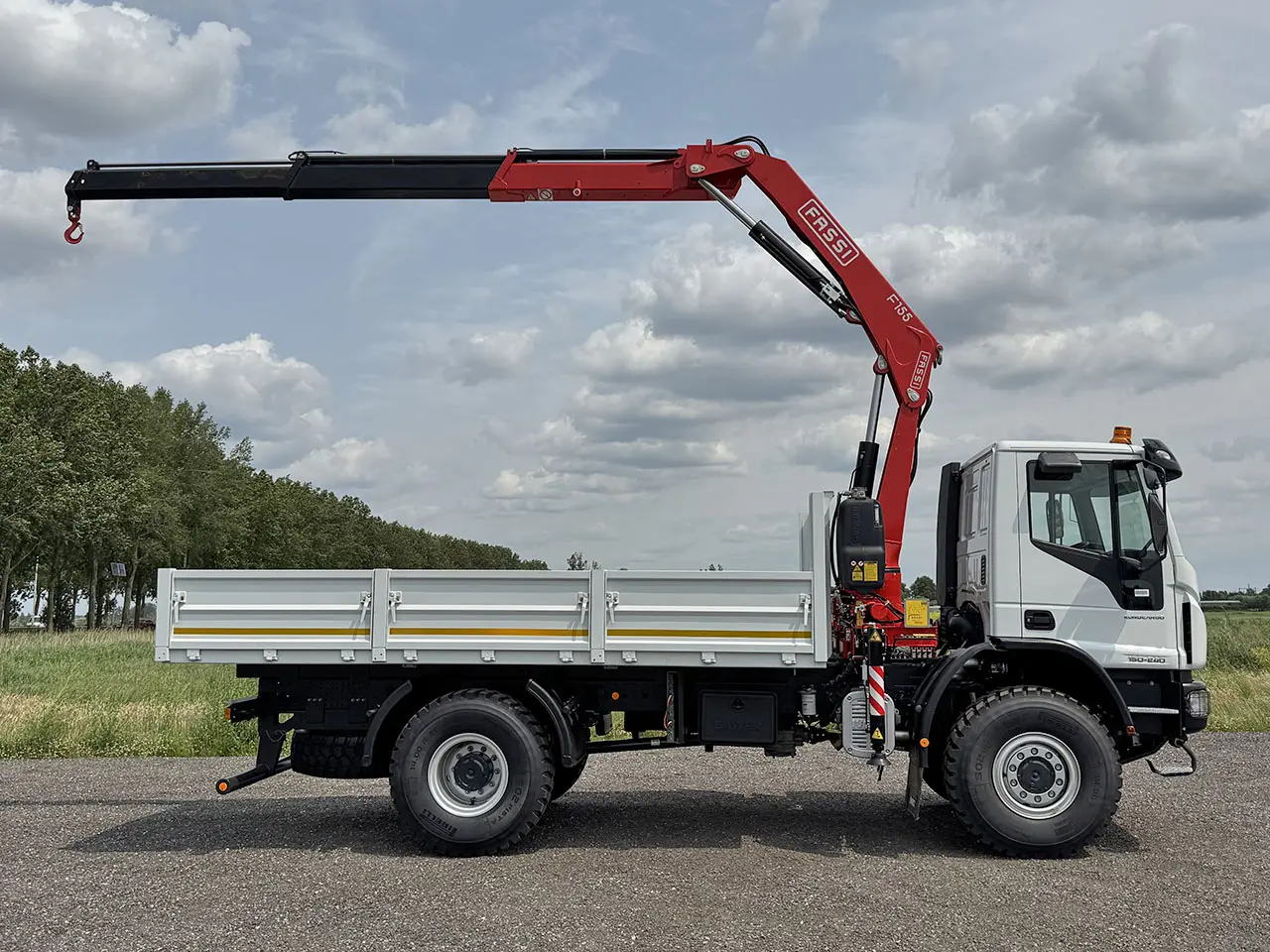

Equipped with Fassi crane and flatbed:
Type: F155A.0.22
Lifting moment: 133 KNm.
Standard hydraulic reach: 8.30 mtr.
Load at the max horizontal outreach: 1.660 kg.

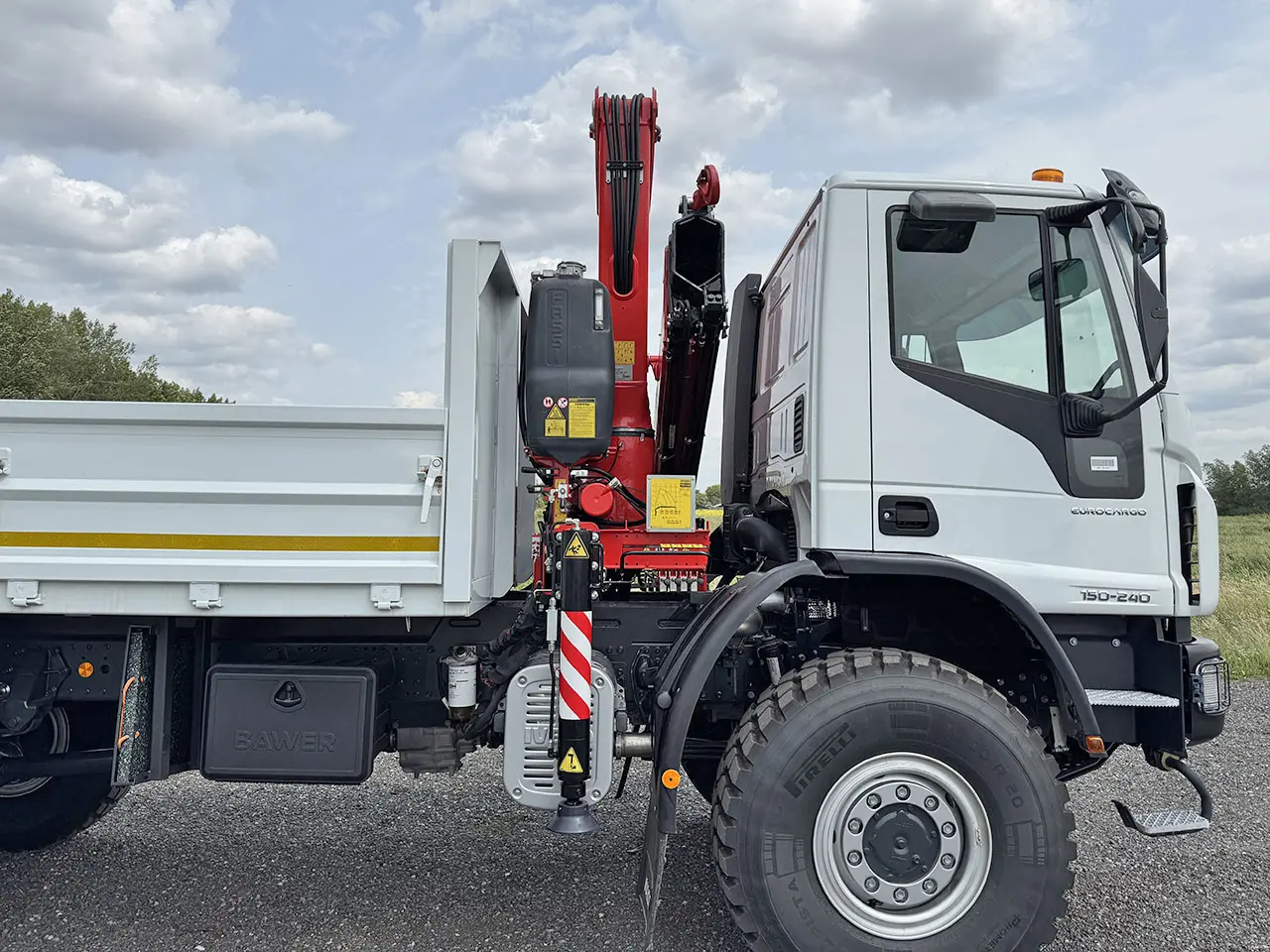

Hydraulically extra extendable outriggers
Long fixing rods

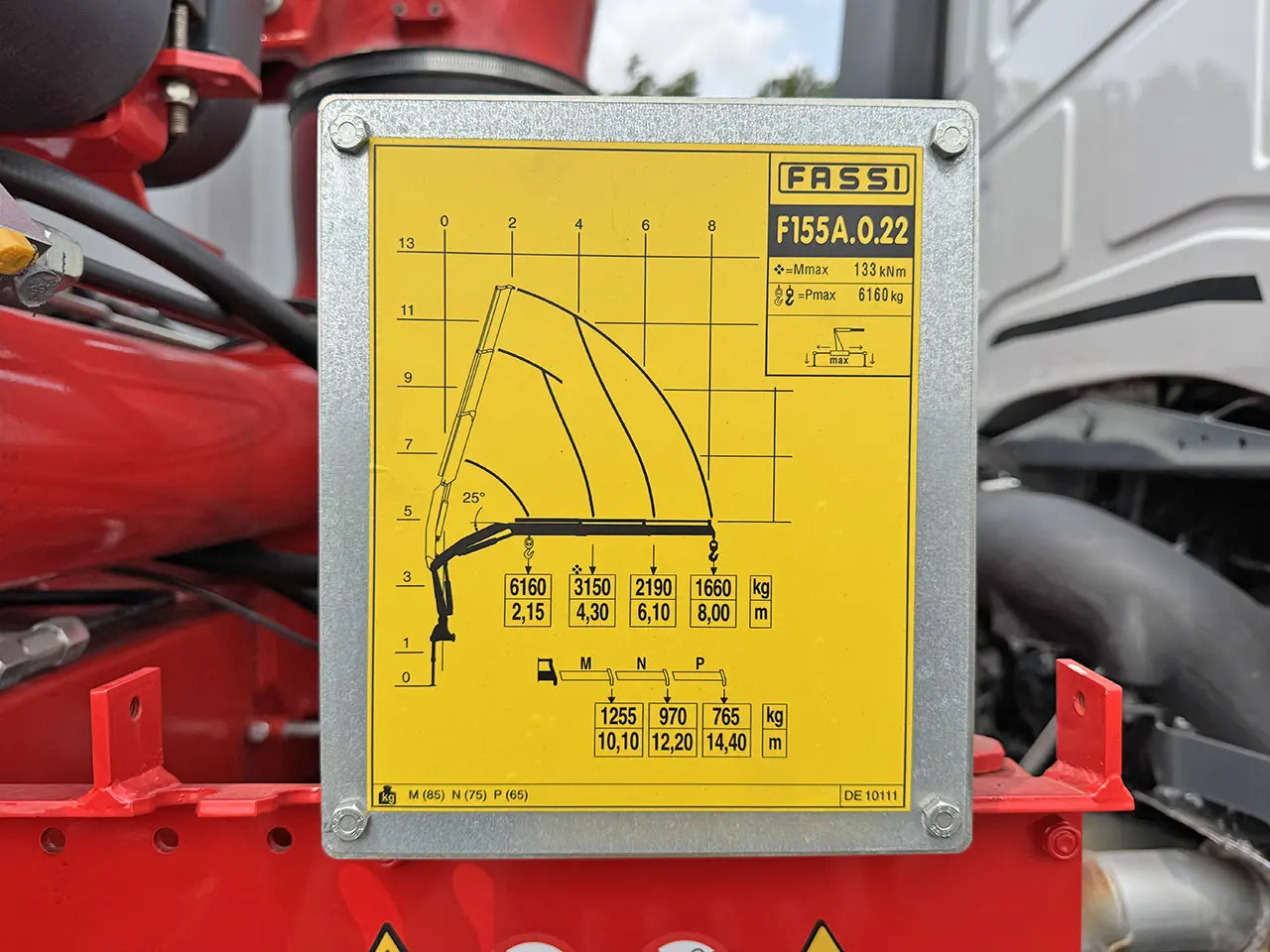

Lifting capacity:
6.160 kg / 2.15 m
3.150 kg / 4.30 m
2.190 kg / 6.10 m
1.660 kg / 8.00 m

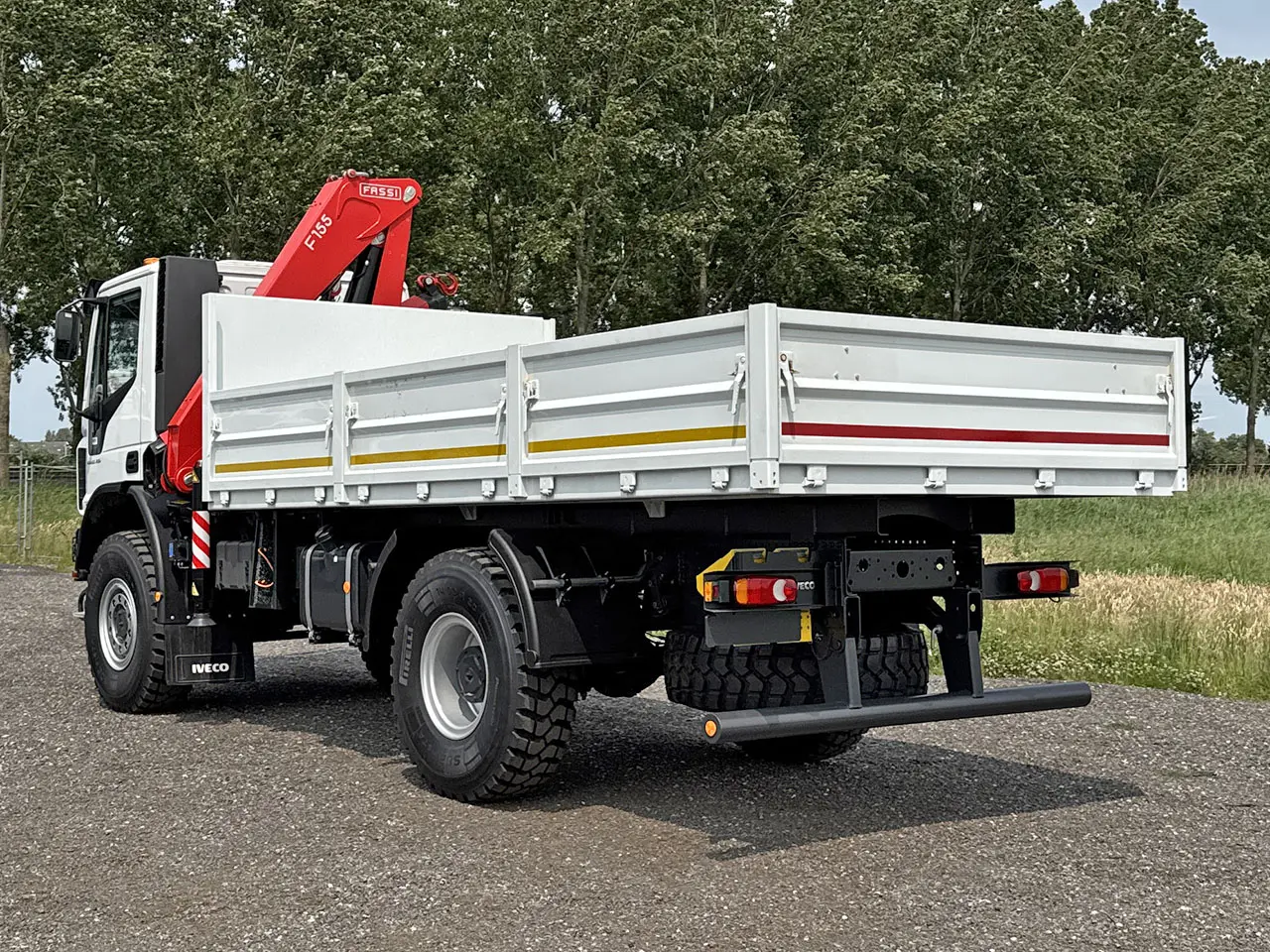

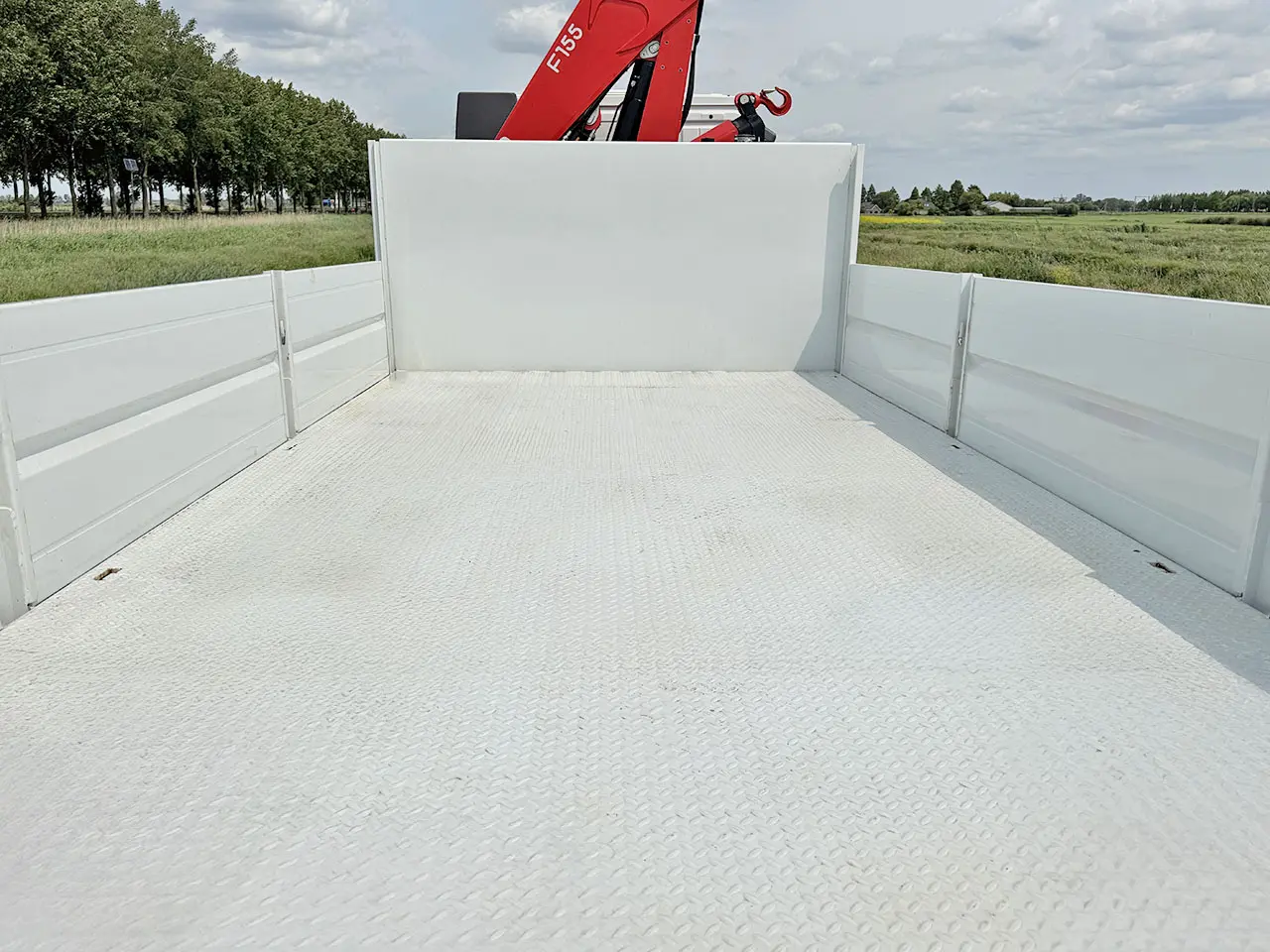

Open flatbed body with foldable sideboards.
Measurements: 490 x 242 x 60 cm.
Complete specification in PDF.
